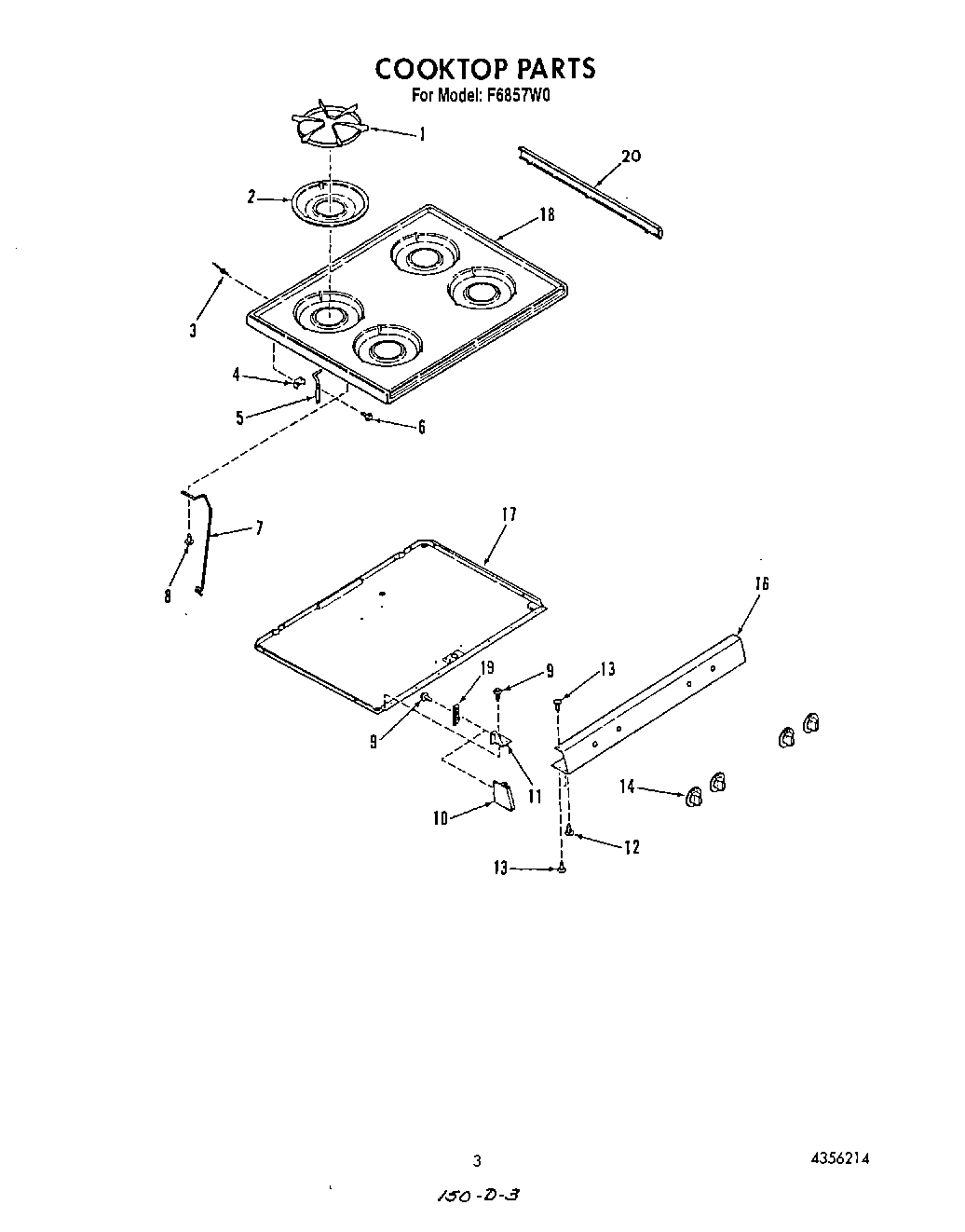

F6857^0 03 – COOK TOP

Products

Position	Product
1	Grate, Burner (4)
2	Pan, Aeration
3	Rivet
4	Bracket, Mounting
5	Hinge (Right)
5	Hinge (Left)
6	WP999367 Whirlpool Refrigerator Screw
7	Support Rod (2)
8	Screw 6-32×5/16
9	SCREW
10	End Cap (Left)
10	End Cap (Right)
11	Bracket, Manifold (Right)
11	Bracket, Manifold (Left)
12	Screw
13	Screw
14	Knob, Gas Valve (4)
16	Panel, Manifold
17	Bottom, Burner Box
18	Cooktop W/Trim (White)
18	Cooktop W/Trim (Almond)
19	Cleat
20	Trim (Left)
20	Trim (Right)
