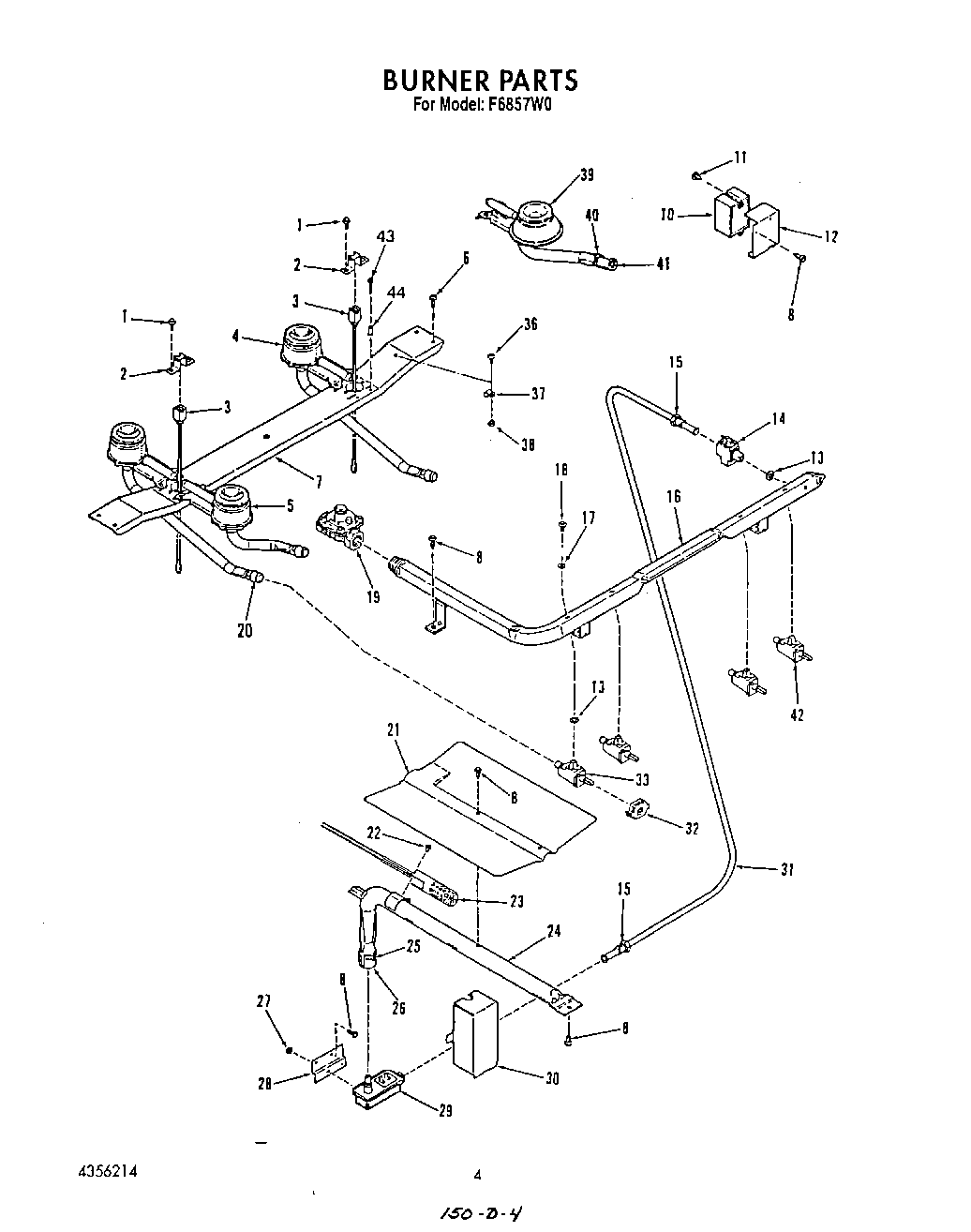

| 1 | WP489128 Whirlpool Refrigerator Screw |
| 2 | Bracket-Ignitor (Lt or Rt) |
| 3 | Electrode (Right) |
| 3 | Electrode (Left) |
| 4 | Burner-Rear, Lt. or Rt. (Incl. No.8) |
| 5 | Burner, Front-Lt. or Rt. (Incl. No.8) |
| 6 | Screw No.6-20x3/8 |
| 7 | Support, Top Burner |
| 8 | SCREW |
| 10 | Module-Spark |
| 11 | Screw 6-20x3/8 |
| 12 | Bracket, Spark Module |
| 13 | Seal, Valve-1 ea. Illus. 10 & 20 |
| 14 | Valve, Shut Off |
| 15 | Inverted Nut, 3/8 |
| 16 | Manifold |
| 17 | Seal (for No.26) |
| 18 | Screw, Mounting-1 Each-illus. 10 & 20 |
| 19 | Regulator-Pressure |
| 20 | Air Shutter |
| 21 | Baffle, Oven Burn |
| 22 | Screw No.10-32x1/4 |
| 23 | Ignitor-Bake/Broil |
| 24 | Burner Assembly, (Inc. 21,25,26) |
| 25 | Screw, Adjustment-Air Shutter |
| 26 | Shutter, Air |
| 27 | Hex Nut, No.6-32 |
| 28 | Bracket, Control Valve |
| 29 | Control Valve |
| 30 | Cover, Control Valve |
| 31 | Tubing 3/8``, (Inc`s 9) |
| 32 | WP4330739 Whirlpool Igniter Switch |
| 33 | Gas Valve, Rt Rear Lt. Frt, Lt. Rear (Inc`s No.11) |
| 36 | Screw, No.8-32 x 3/8 |
| 37 | Clip (For No.1) |
| 38 | WP488130 Whirlpool Air Conditioner Nut |
| 39 | Rt. Front Burner (Inc`s 22 & 23) |
| 40 | Screw-Adjustment, (Air Shutter) |
| 41 | Air Shutter |
| 42 | Gas Valve (Inc 18) |
| 43 | Screw No.6-32x7/8 |
| 44 | Eyelet |
