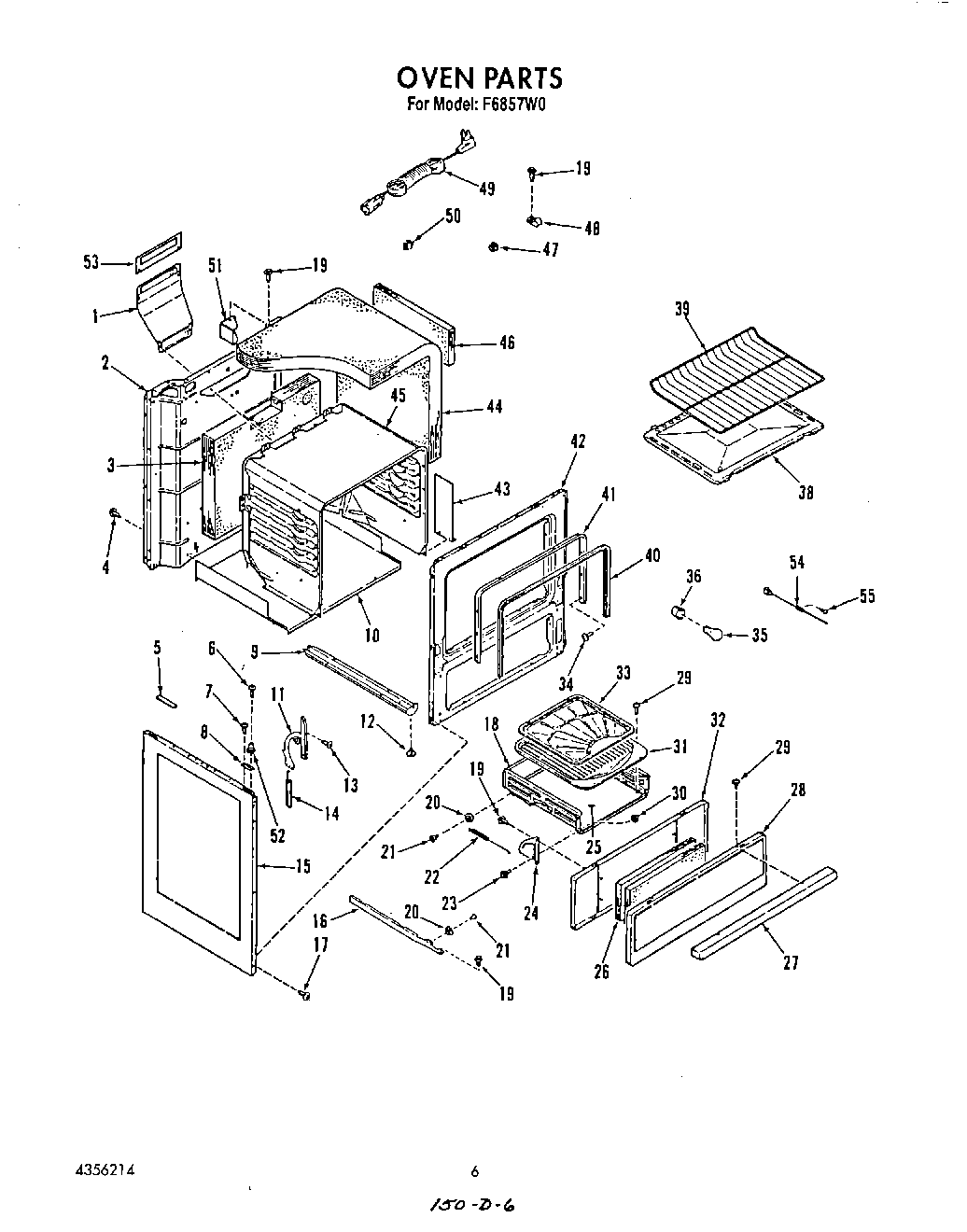

F6857^0 05 – OVEN

Products

Position	Product
1	Deflector
2	Cover, Back
3	Insulation-Back
4	W10850756 Whirlpool Screw
5	Spacer
6	Screw No.6-32×7/8
7	Screw 6-32×5/16
8	Support, Side (Right)
8	Support, Side (Left)
9	Base, W/ Levelers (2)
10	Bottom, Main
11	Hinge-Oven Door (Left)
11	Hinge-Oven Door (Right)
12	Levelers, Leg (4)
13	Screw
14	Spring, Oven Door
15	Side, Cabinet (Almond)
15	Side, Cabinet (White)
16	Guide, Broiler Drawer (Inc 20,21) (Right)
16	Guide, Broiler Drawer (Inc 20,21) (Left)
17	WP308685 Whirlpool Microwave Screw
18	Broiler Drawer (Inc. 20,21)
19	SCREW
20	Roller
21	Rivet
22	Spring, Broiler-Drawer
23	Bolt, Shoulder
24	Hinge-Broiler Drawer (Right)
24	Hinge-Broiler Drawer (Left)
25	Bottom, Broiler
27	Handle
28	Broiler Door Panel (White)
28	Broiler Door Panel (Almond)
29	Screw No.10-32×1/2
30	W10080180 Whirlpool Nut
31	Pan, Broiler
32	Lining, Broiler Door
33	Grid, Broiler Pan
34	Screw, No.10-32×17/32“
35	RANGE ONLY 40W 120V APPL BULB
36	W10856866 Whirlpool Light Socket
38	Bottom, Oven
39	Rack, Oven (2)
40	Seal, Oven Door
41	Retainer, Oven-Door-Seal
42	Frame, Front
43	Retainer, Insul., (Lt/Rt)
44	Insulation, Wrap
45	Oven Body
46	Insulation (Rt/Lt)
47	Bushing
48	Clip (For No.1)
49	Service Cord
50	Disconnect
51	Cover, Wire
52	Strike
53	Insulation, Flue Deflector
54	Sensor
55	Screw No.6-32×3/16“
