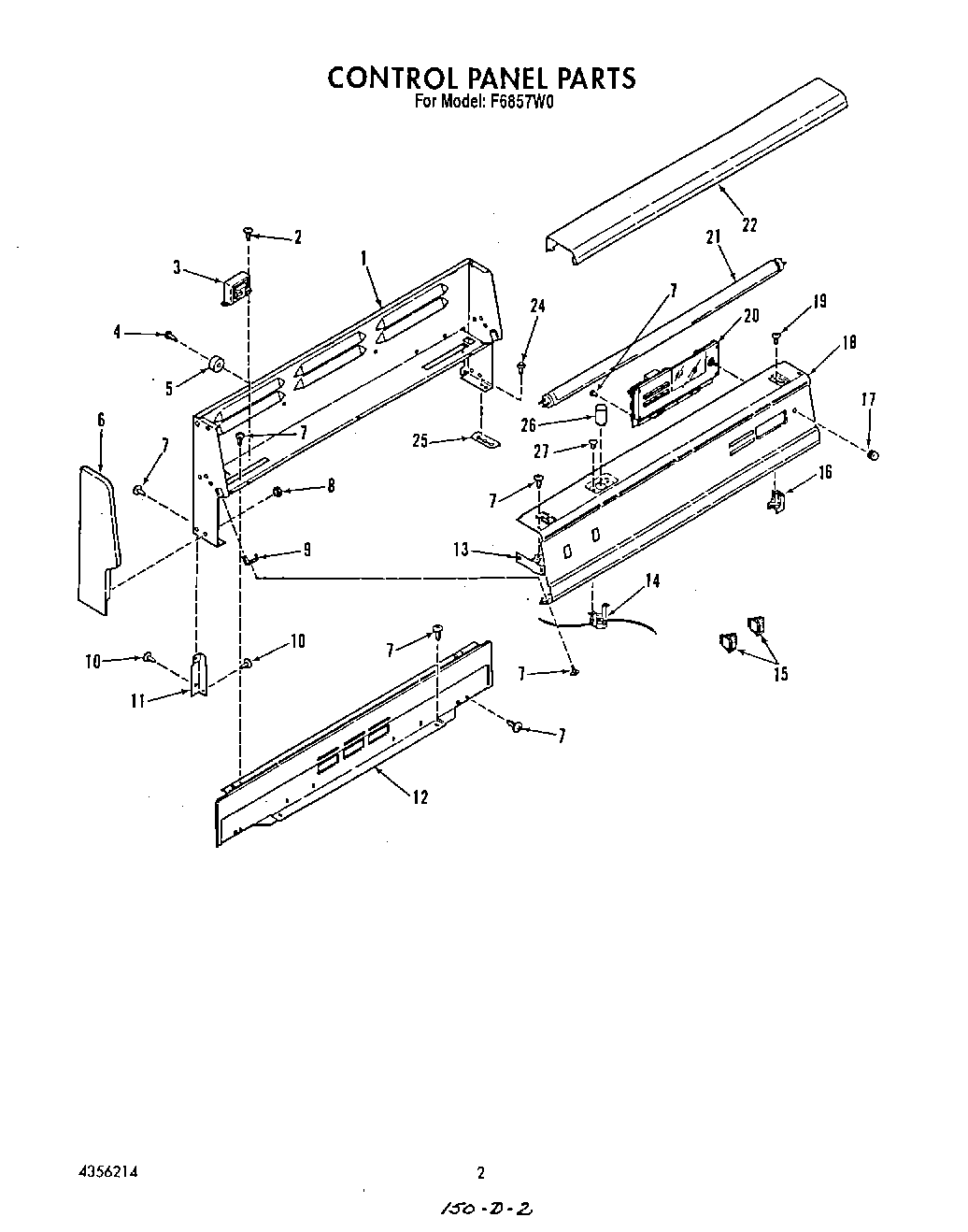

F6857W0 02 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	Lens, Clock
1	Backguard
2	Screw 6-20×3/8
3	WPL 4323673
4	WP999367 Whirlpool Refrigerator Screw
5	WPL 4337434
6	End Cap (Right)
6	End Cap (Left)
7	WP308685 Whirlpool Microwave Screw
8	WP308499 Whirlpool Nut
9	Clip, Backguard
10	SCREW
11	Support, Backguard (Left)
11	Support, Backguard (Right)
12	Backguard Front
13	Bracket, Backguard
14	Starter Base
15	WP4314961 Whirlpool Lite Switch
16	Socket
17	Knob, Clock
18	Control Panel
19	WP486754 Whirlpool Compactor Screw
20	Control, Clock-Oven, w/Lens
21	WP95292 Whirlpool Fluorescent Light Bulb
22	Canopy Panel
24	W10850756 Whirlpool Screw
25	Cleat
26	WPL 4337125
27	Screw
