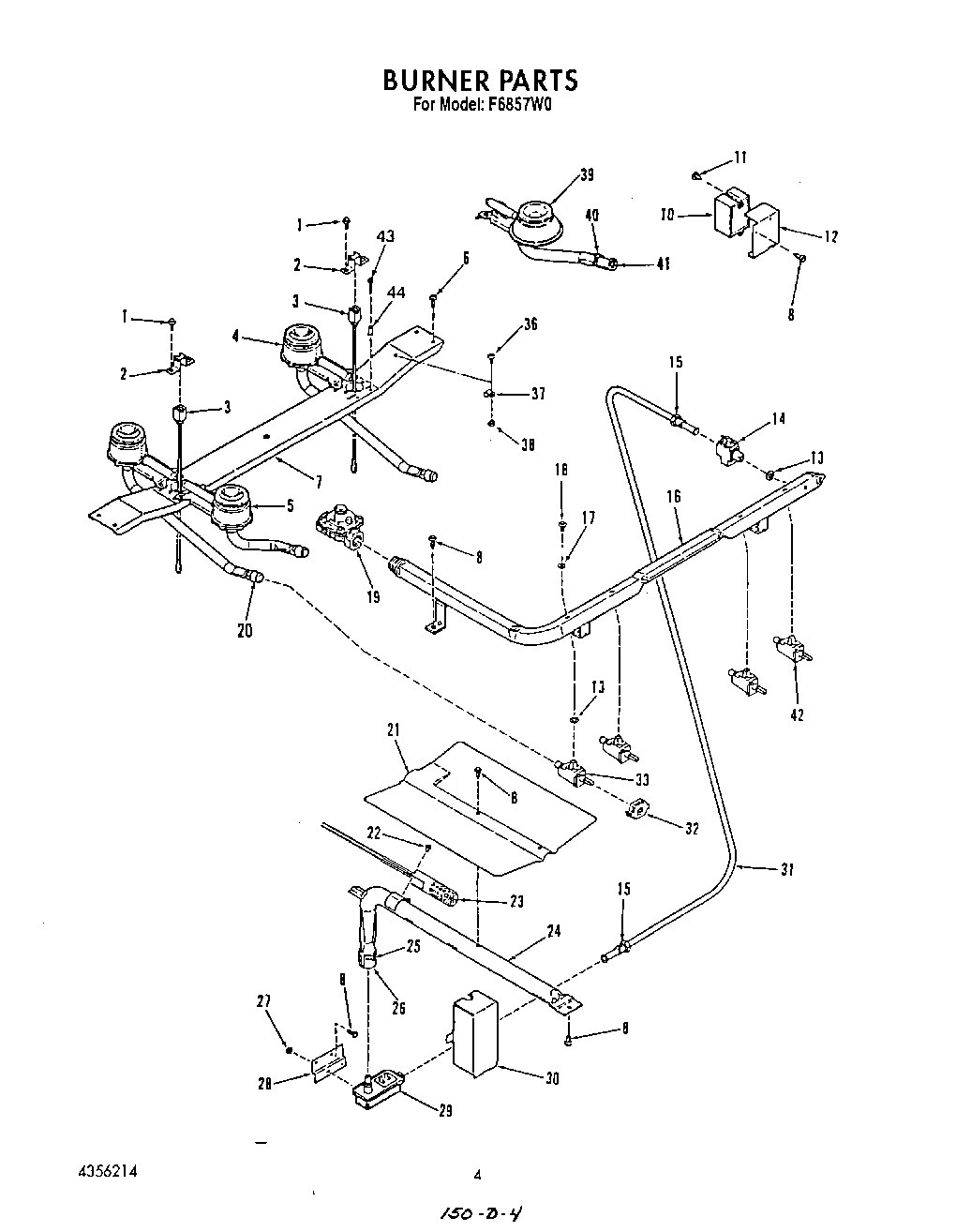

F6857W0 04 – BURNER

Products

Position	Product
1	WP489128 Whirlpool Refrigerator Screw
2	Bracket-Ignitor (Lt or Rt)
3	Electrode (Right)
3	Electrode (Left)
4	Burner-Rear, Lt. or Rt. (Incl. No.8)
5	Burner, Front-Lt. or Rt. (Incl. No.8)
6	Screw No.6-20×3/8
7	Support, Top Burner
8	SCREW
10	Module-Spark
11	Screw 6-20×3/8
12	Bracket, Spark Module
13	Seal, Valve-1 ea. Illus. 10 & 20
14	Valve, Shut Off
15	Inverted Nut, 3/8
16	Manifold
17	Seal (for No.26)
18	Screw, Mounting-1 Each-illus. 10 & 20
19	Regulator-Pressure
20	Air Shutter
21	Baffle, Oven Burn
22	Screw No.10-32×1/4
23	Ignitor-Bake/Broil
24	Burner Assembly, (Inc. 21,25,26)
25	Screw, Adjustment-Air Shutter
26	Shutter, Air
27	Hex Nut, No.6-32
28	Bracket, Control Valve
29	Control Valve
30	Cover, Control Valve
31	Tubing 3/8“, (Inc`s 9)
32	WP4330739 Whirlpool Igniter Switch
33	Gas Valve, Rt Rear Lt. Frt, Lt. Rear (Inc`s No.11)
36	Screw, No.8-32 x 3/8
37	Clip (For No.1)
38	WP488130 Whirlpool Air Conditioner Nut
39	Rt. Front Burner (Inc`s 22 & 23)
40	Screw-Adjustment, (Air Shutter)
41	Air Shutter
42	Gas Valve (Inc 18)
43	Screw No.6-32×7/8
44	Eyelet
