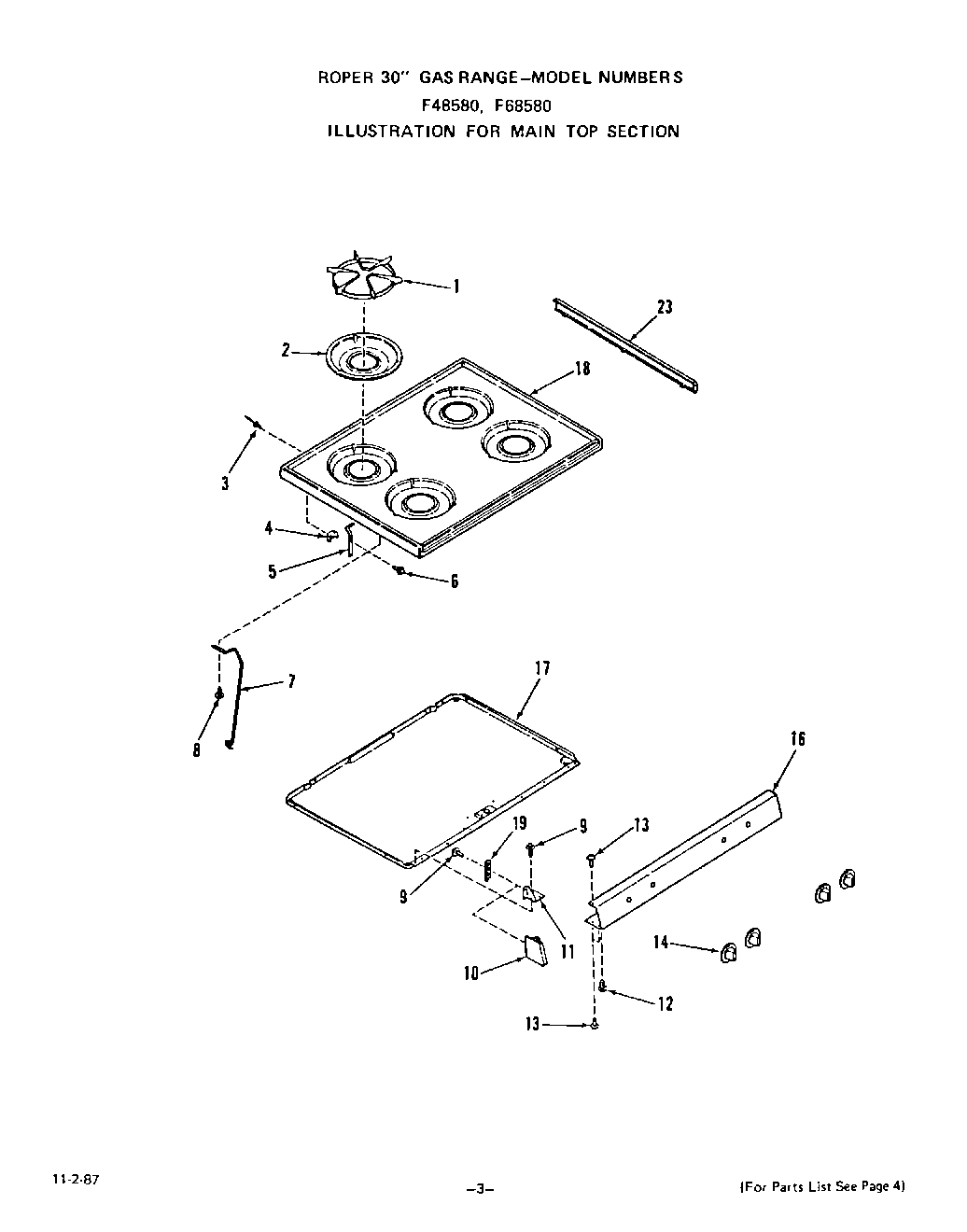

F6858^0 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Req)
2	Aeration Pan (Model F65080)
3	Rivet
4	Hinge Bracket
5	Right
5	Left
5	Main Top Hinge
6	WPL 321162
7	Support Rod-Main Top (2 Req)
9	Screw 10-16×7/16“
10	End Cap
10	Right
10	Left
11	Manifold Panel Bracket (Left)
11	Manifold Panel Bracket
11	Manifold Panel Bracket (Right)
12	Screw
13	Screw
14	Gas Valve Knob (4 Req)
16	Manifold Panel
17	Burner Box Bottom
18	Almond
18	White
18	Main Top W/Trim
19	Body Side Cleat
23	Right
23	Left
23	Main Top Trim
