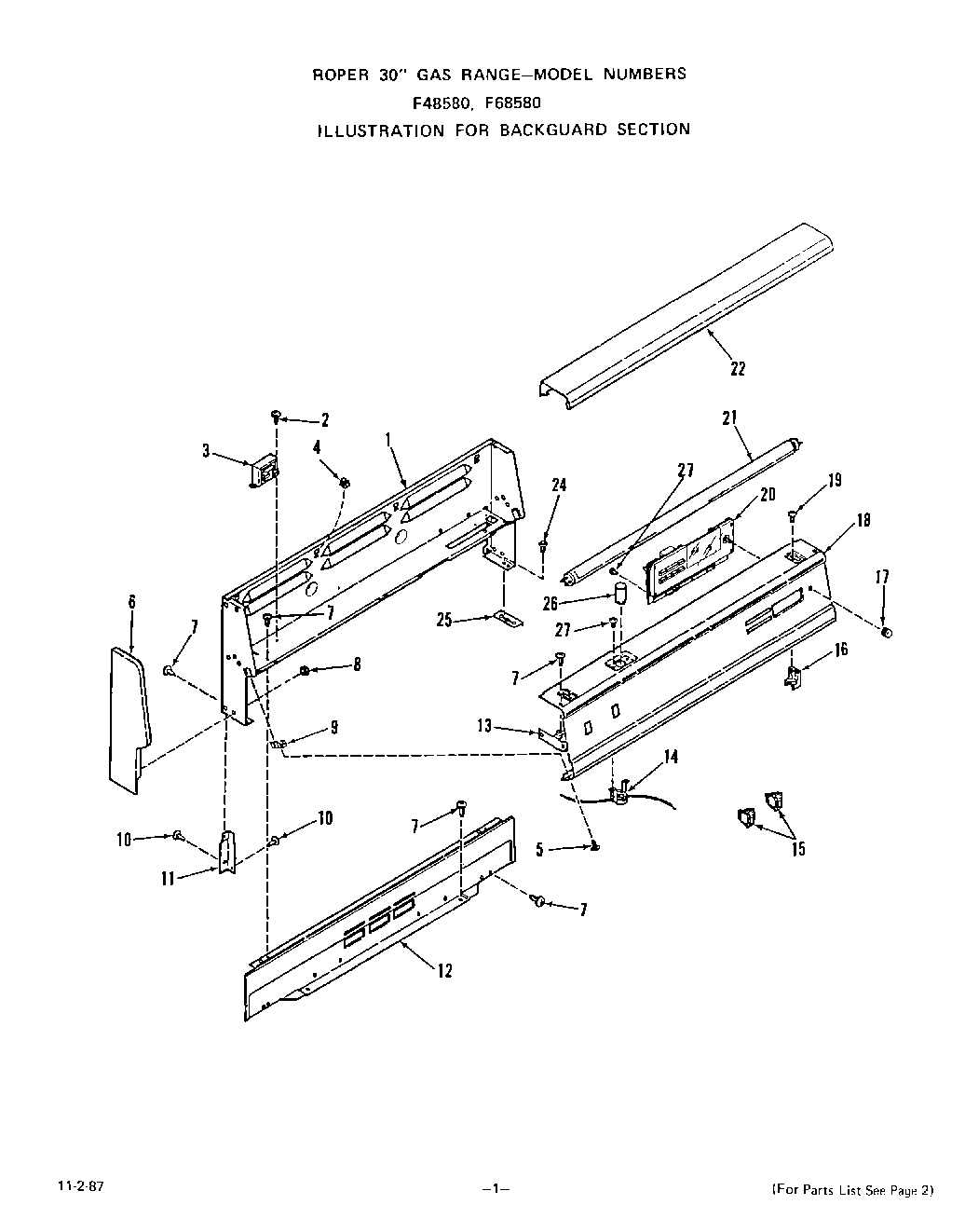

F6858W0 02 – BACKGUARD

Products

PositionProduct
xClock /Oven Control Lens
1Backguard Body
2Screw 6-20×3/8“
3Ballast
4Wire Clip
5Screw 10-16×1/2“
6End Cap
6Left
6Right
7Screw 10ABx1/2“
8Pal Nut
9Backguard Clip
10Screw 10-16×7/16“
11Left
11Backguard Support
11Right
12Backguard Front Panel
13Backguard Bracket
14Starter Base
15Switch-Oven Light
16Lamp Holder
17Clock Knob
18Control Panel
19Screw 6-32×3/8“
20Clock/Oven Control w/Lens
21Fluorescent Lamp
22Canopy Panel
24WP112432 Whirlpool Nut Assembly
25Body Side Cleat
26Lamp Starter
27Screw 6-32×5/16“
