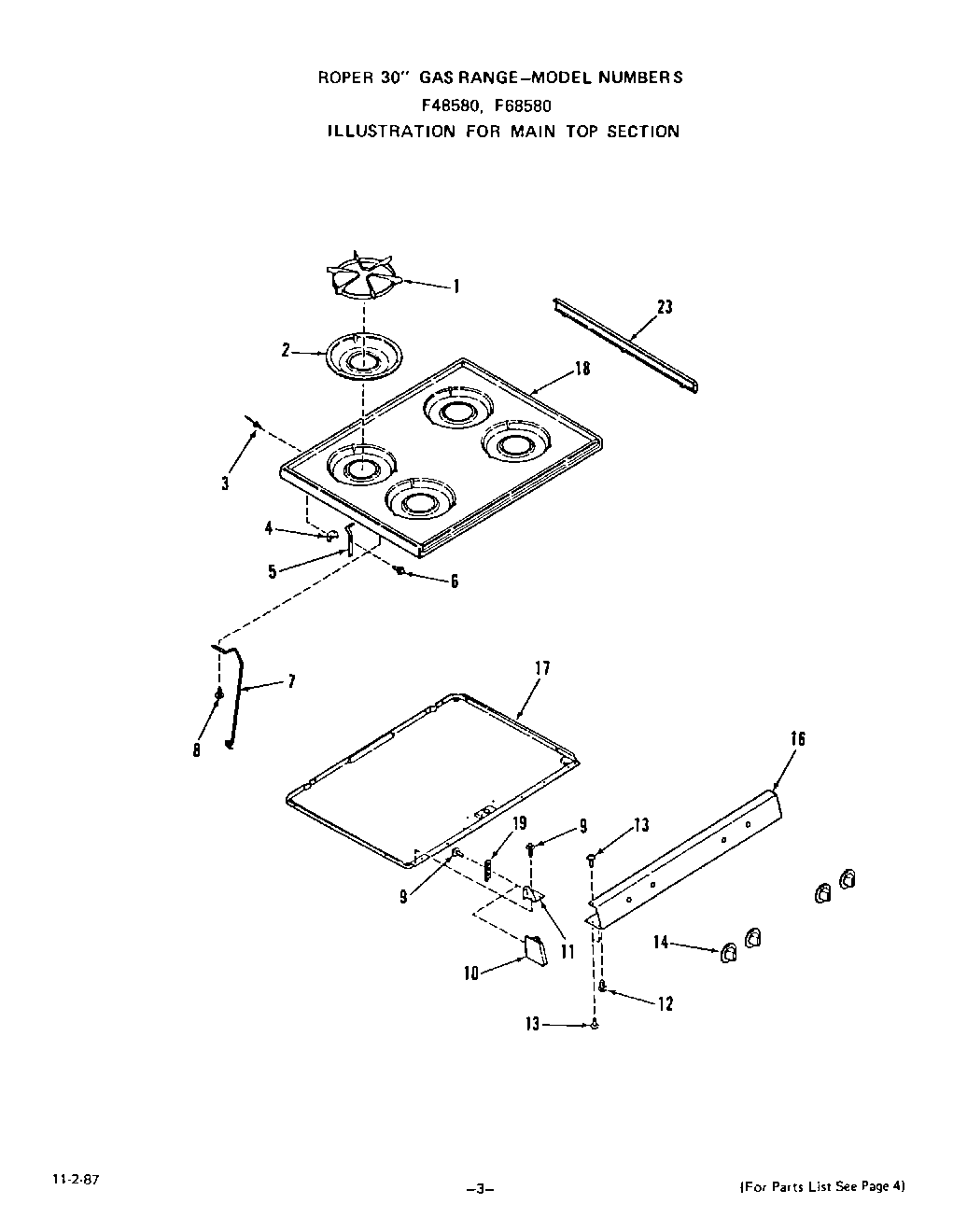

F6858W0 03 – MAIN TOP

Products

PositionProduct
1Top Grate (4 Req)
2Aeration Pan (Model F65080)
3Rivet
4Hinge Bracket
5Right
5Left
5Main Top Hinge
6WPL 321162
7Support Rod-Main Top (2 Req)
9Screw 10-16×7/16“
10End Cap
10Right
10Left
11Manifold Panel Bracket (Left)
11Manifold Panel Bracket
11Manifold Panel Bracket (Right)
12Screw
13Screw
14Gas Valve Knob (4 Req)
16Manifold Panel
17Burner Box Bottom
18White
18Almond
18Main Top W/Trim
19Body Side Cleat
23Left
23Right
23Main Top Trim
