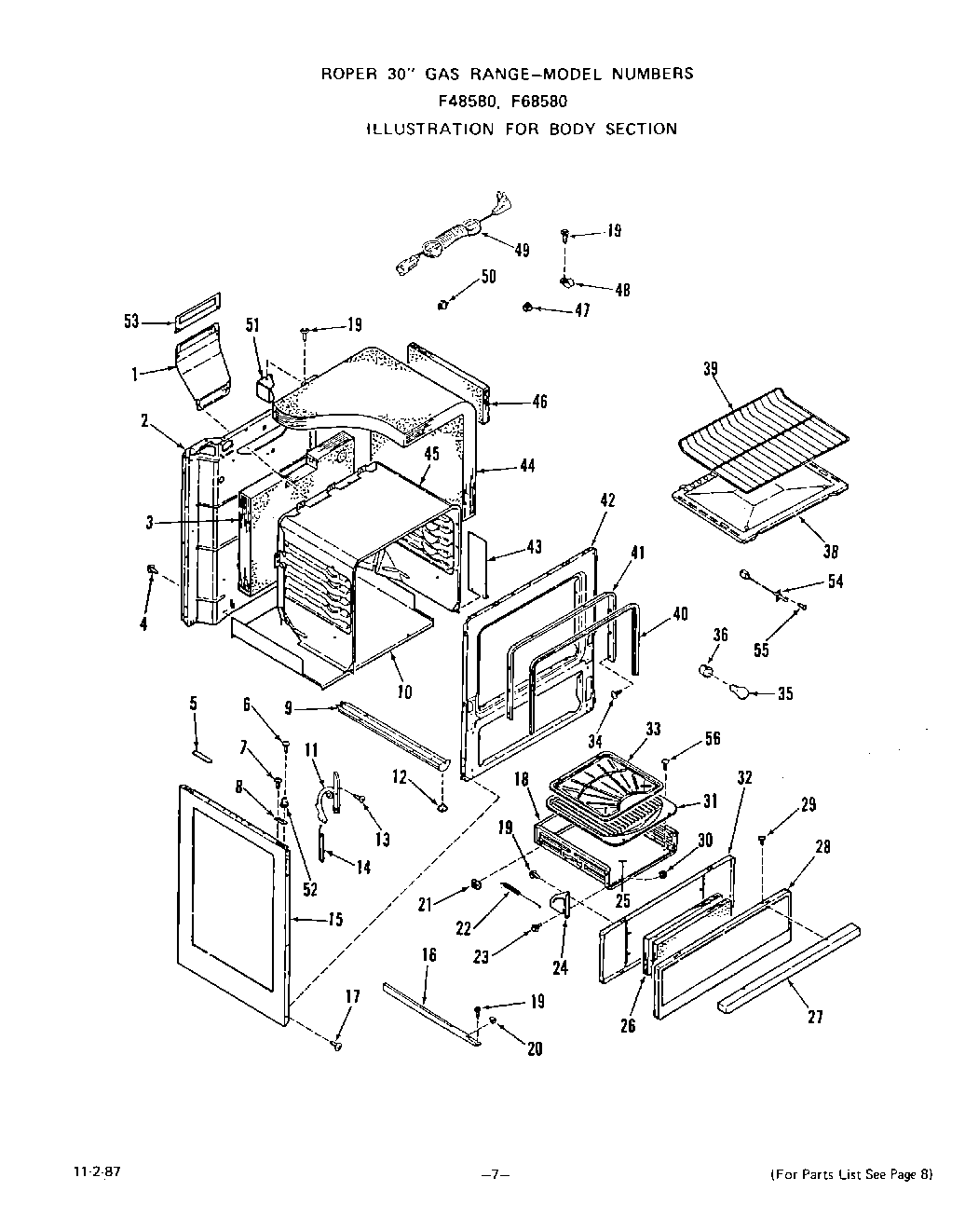

F6858W0 05 – BODY

Products

Position	Product
1	Flue Deflector
2	Back-Main
3	Insulation-Oven Back
4	WP112432 Whirlpool Nut Assembly
5	Spacer-Main Top
6	Screw 6-32×7/8“
7	Screw
8	Side Support
8	WPL 334340
8	WPL 334341
9	Base w/Levelers-Lt. or Rt.
10	Bottom-Main
11	Hinge-Main Top (Right)
11	Hinge-Main Top (Left)
11	Door Hinge
12	Leg Leveler (4 Req)
13	Screw
14	Spring-Oven Door (Lt. or Rt.)
15	Body Side (Almond)
15	Body side (White)
15	Body Side
16	Broiler Drawer Guide (Right)
16	Broiler Drawer Guide (Left)
16	Broiler Drawer Guide
17	Screw 10ABx1/2“
18	Broiler Drawer
19	Screw 10-16×7/16“
20	Slide Block – Front
21	Slide Block – Rear
22	WPL 327481
23	Bolt-Shoulder
24	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
24	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
24	Drawer Hinge
25	WPL 331554
27	Handle
28	Door Panel
28	White
28	Almond
29	Screw 10-16×1/2“
30	Keps Nut 10-24
31	Pan-Broiler (14451A M
32	Lining-Broiler Door (14451A Models)
33	WPL 331588
34	Screw 10ABx1/2“
35	Oven Lamp Bulb
36	Holder-Oven Lamp Bulb
38	Oven Bottom
38	WPL 327084
38	WPL 331539
39	Oven Rack
39	Folding
39	WPL 326068
40	WPL 326047
41	main chassis (almond)
42	Front Frame
43	WPL 328984
44	Insulation-Oven Top & Sides (1 Piece)
45	(Model F68580)
45	Oven Body
45	Oven Body
46	W10820036 Whirlpool Door Switch Kit
47	WPL 232365
48	Clip
49	Range Service Cord
50	Disconnect
51	Wire Cover
52	Strike
53	WPL 329314
54	Sensor
55	Screw 6-32×1/4“
56	Screw 10-32×7/16“
