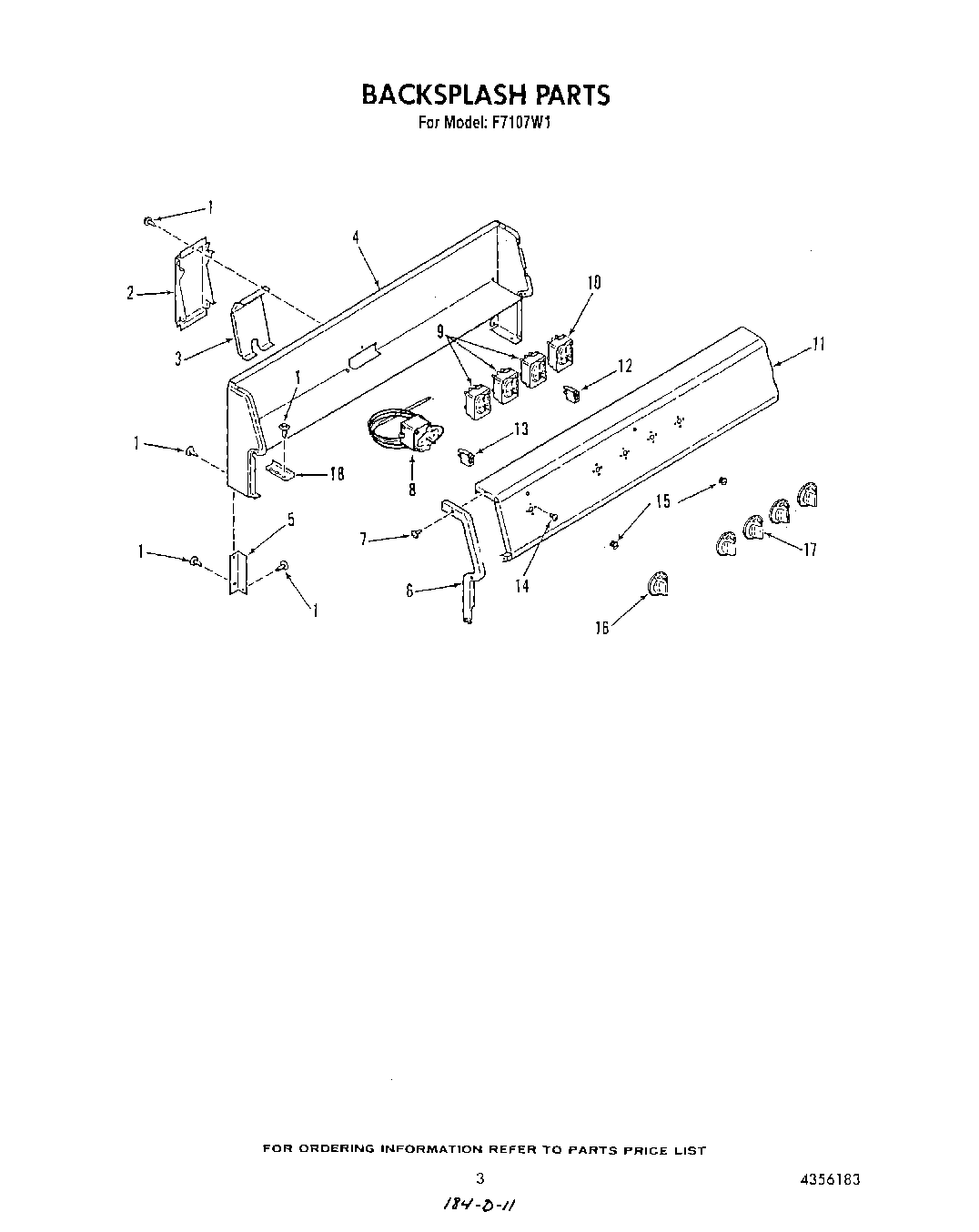

F7107^1 03 – BACKSPLASH , LIT/OPTIONAL

Products

PositionProduct
1SCREW
2Raceway, Wire
3Cover, Raceway
4Backguard
5Support, Backguard
6End Cap (Left)
6End Cap (Right)
7Screw 6-20×3/8
8Thermostat
9W10900107 Whirlpool Oven Surface Element Switch
11Panel, Control (White)
11Panel, Control (Almond)
12Indicator Light, (Surface Unit)
13Indicator Light (Oven Unit)
14Screw
15WP9750343 Whirlpool Light Lens
16Knob, Thermostat
17Knob, Infinite
18Cleat
