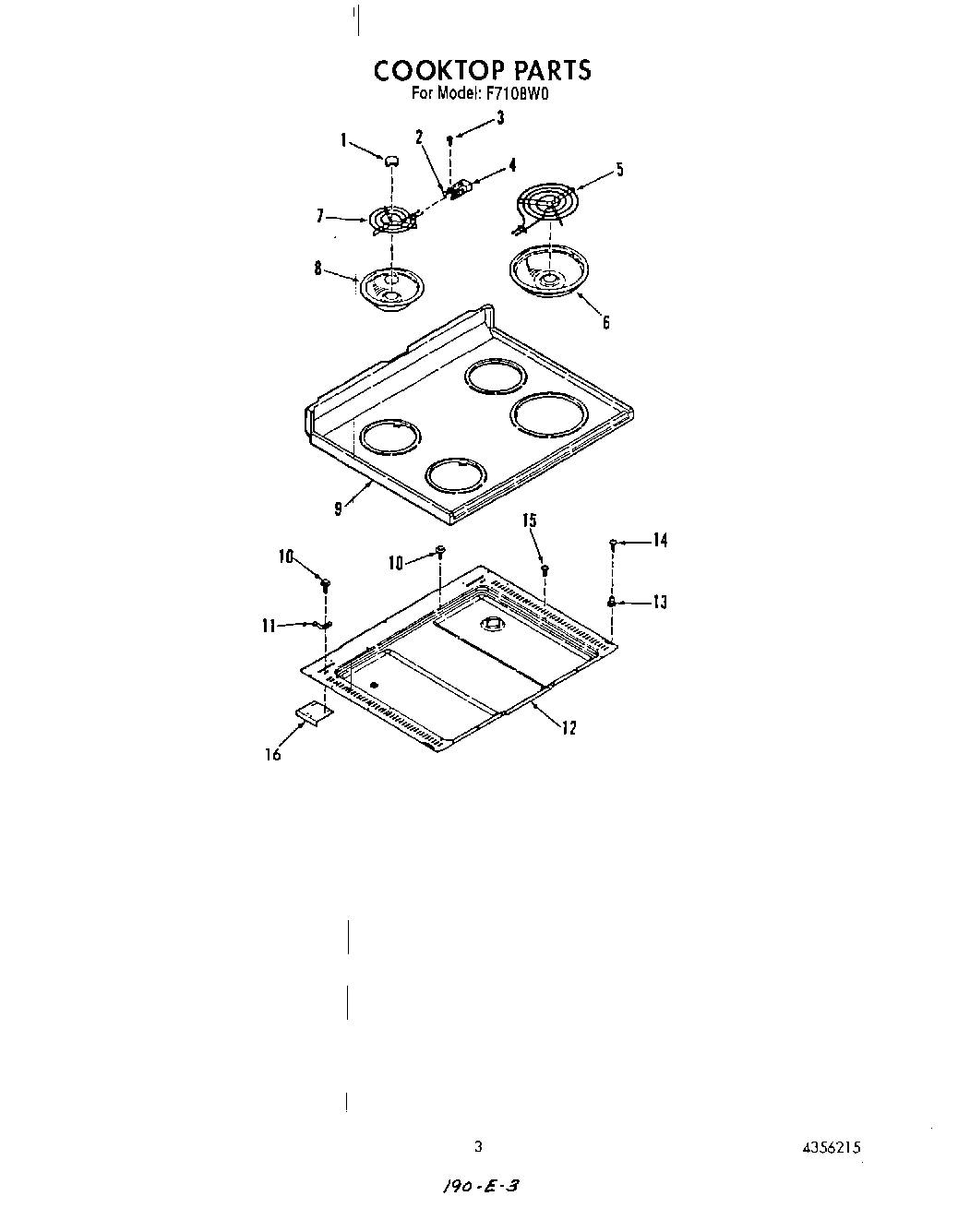

| 1 | Medallion (2) |
| 2 | WP4332752 Whirlpool Clip |
| 3 | Screw, No.7-32 x 5/16 |
| 4 | BURNER RECEPTACLE KIT |
| 5 | WP660533 Whirlpool Oven 8" Surface Element |
| 6 | DRIP BOWL 8" W/HOLE CHROME |
| 7 | WPY04100165 Whirlpool Surface Element |
| 8 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 9 | Cooktop (Almond) |
| 9 | Cooktop (White) |
| 10 | SCREW |
| 11 | Hinge-Main Cooktop (Right) |
| 11 | Hinge-Main Cooktop (Left) |
| 12 | Bottom, Burner Box |
| 13 | Strike |
| 14 | Screw No.6-32x7/8 |
| 15 | Screw |
| 16 | Support Plate |
