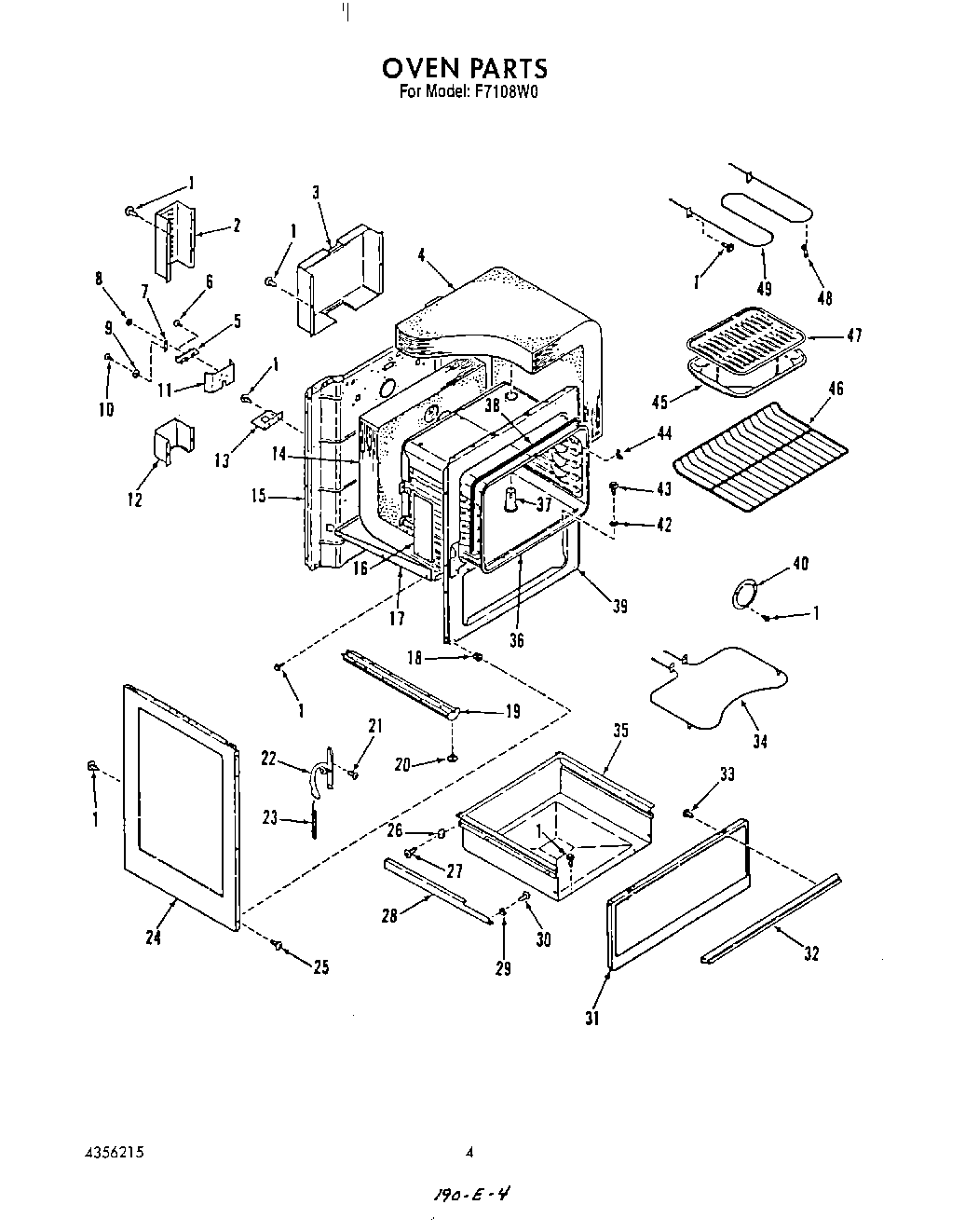

F7108^0 04 – OVEN

Products

Position	Product
1	SCREW
2	Wire Shield, Upper
3	Shield, Wire
4	Insulation, Wrap
5	WP8203546 Whirlpool Terminal Block
6	Screw, No.10-32×1
7	Strap, Ground
8	Nut, Hex 10-32
9	Washer
10	Screw No.10-32×7/16
11	Insulation, Service Cord
12	Wire Cover, Lower
13	Service Plate
14	Insulation, Back And Bottom
15	Rear Cover
16	Retainer, Insul., (Lt/Rt)
17	Retainer, Insulation, Bottom
18	Nut-Expansion (6)
19	Base, W/ Levelers (2)
20	Levelers, Leg (4)
21	Screw
22	Hinge, Oven Door (Left)
22	Hinge, Oven Door (Right)
23	Spring, Oven Door (Lt/Rt)
24	Side Panel (Lt/Rt) (White)
24	Side Panel (Lt/Rt) (Almond)
25	Screw No.8×5/8
26	Rear Slide Block (Lt/Rt)
27	Screw, No.8-32 x 3/8
28	Support, (Lt/Rt), Storage Drawer
29	Front Slide Block, Lt/Rt
30	Screw, No.10-32 x 17/32
31	Front Panel, Storage Drawer (White)
31	Front Panel, Storage Drawer (Almond)
32	Handle
33	W10850756 Whirlpool Screw
34	Bake Element (208 Volt (Opt))
34	Element, Bake (240 Volt)
35	Drawer, Storage
36	Oven Body
37	Tube, Vent
38	Seal, Oven Door
39	Frame, Front
40	Cover
42	Washer
43	WP308685 Whirlpool Microwave Screw
44	Clip
46	Rack, Oven (2)
47	4396923 Whirlpool Broil Pan Set Gray Porcelain
48	Support, Broil Element
49	WP4334925 Whirlpool Broil Element
