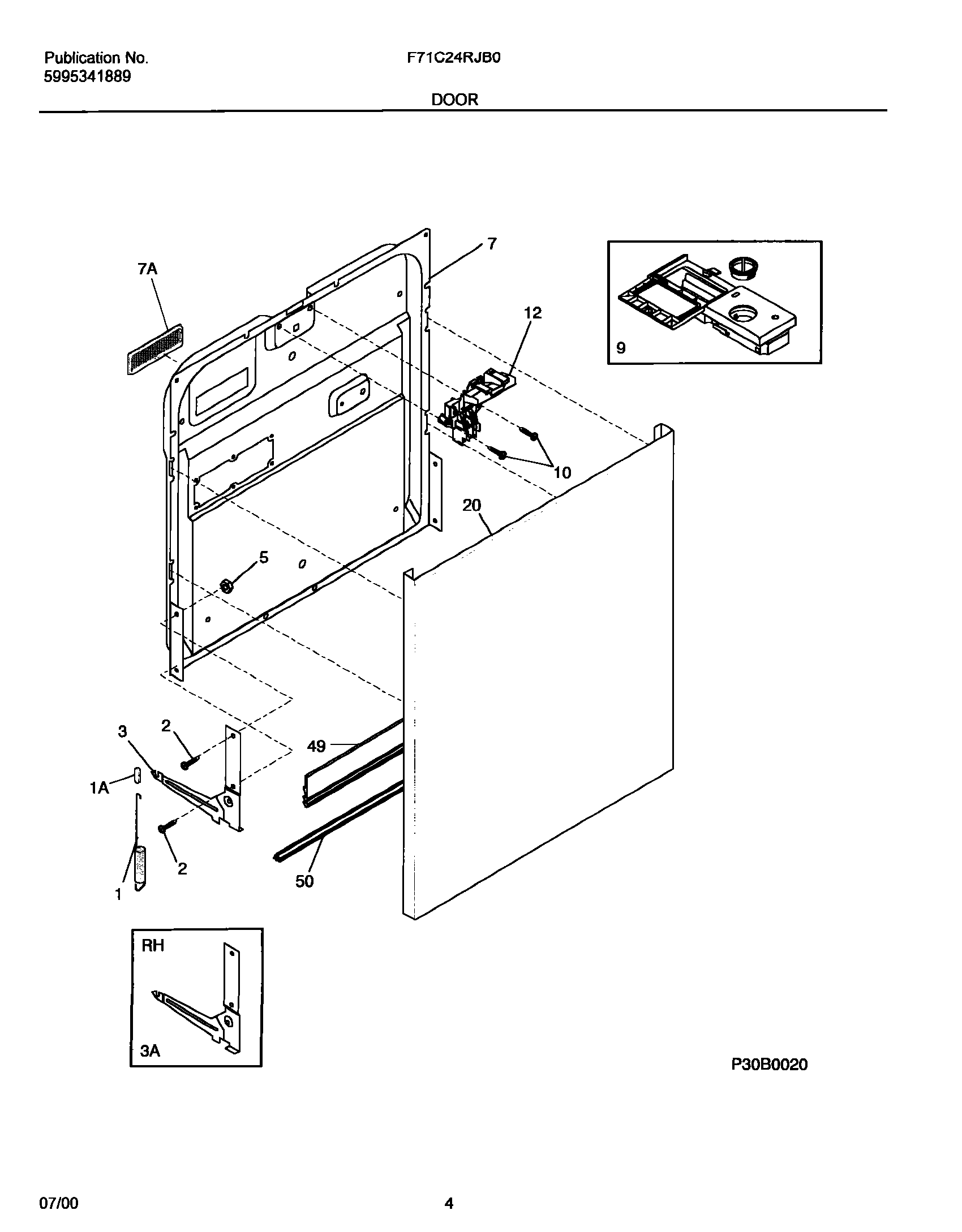

F71C24RJB0 05 – DOOR

Products

Position	Product
NI	WCI 154227808
NI	PIN-ARM (NOT ILLUSTRATED)
NI	WCI 154320301
1A	154325201 Frigidaire Linkage Spring
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
7A	WCI 154226601
9	154574401 Frigidaire Dishwasher Dispenser
9	154294701 Frigidaire Dishwasher Screw
10	154103702 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
20	154828803 Frigidaire Dishwasher Door
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
