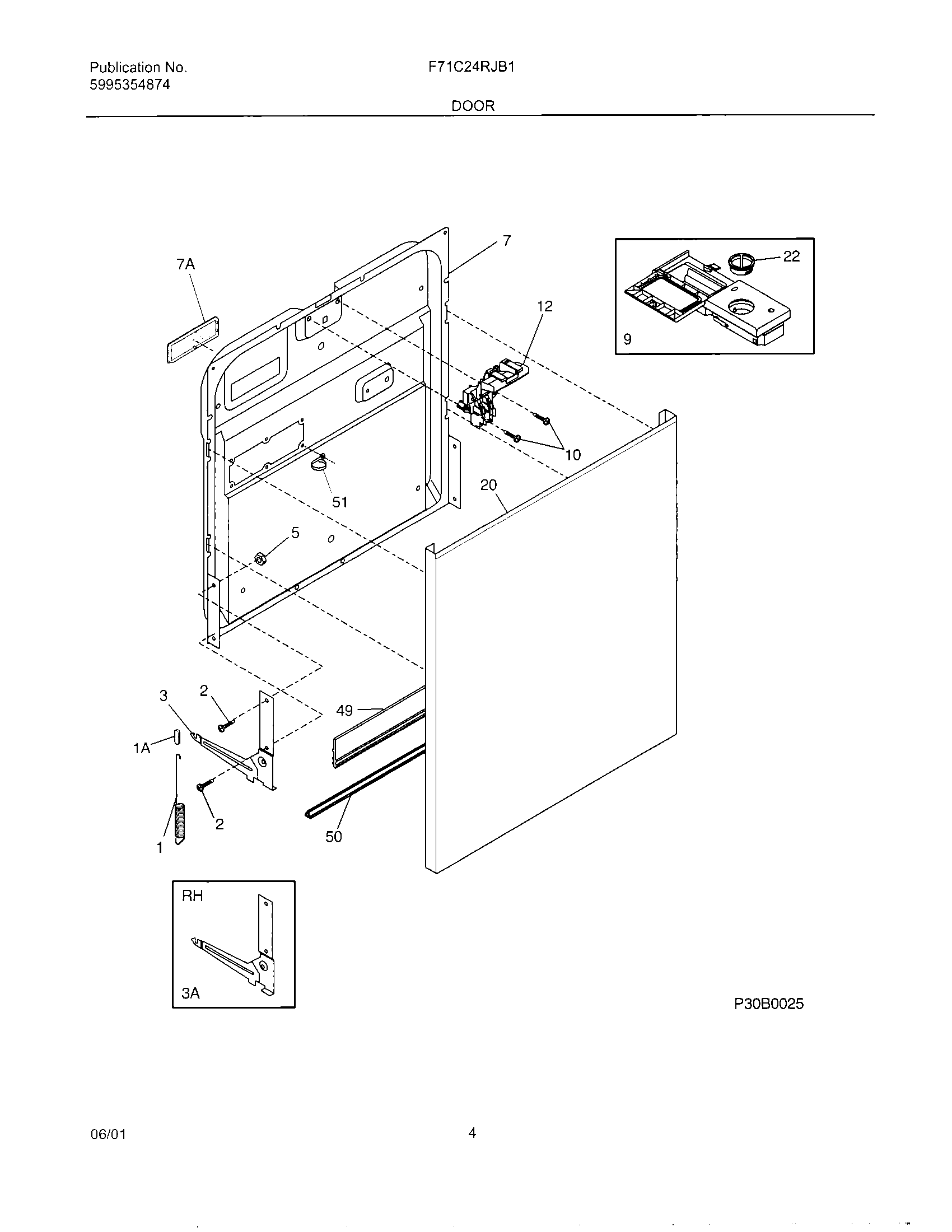

F71C24RJB1 05 – DOOR

Products

Position	Product
NI	154294701 Frigidaire Dishwasher Screw
NI	PIN-ARM (NOT ILLUSTRATED)
NI	WCI 154227808
1	154430501 Frigidaire Dishwasher Door Spring
1	154325201 Frigidaire Linkage Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
7	WCI 154226601
9	154574401 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
20	154828803 Frigidaire Dishwasher Door
22	154388801 Frigidaire Dishwasher Rinse Aid Dispenser Cap
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
51	WCI 154320301
