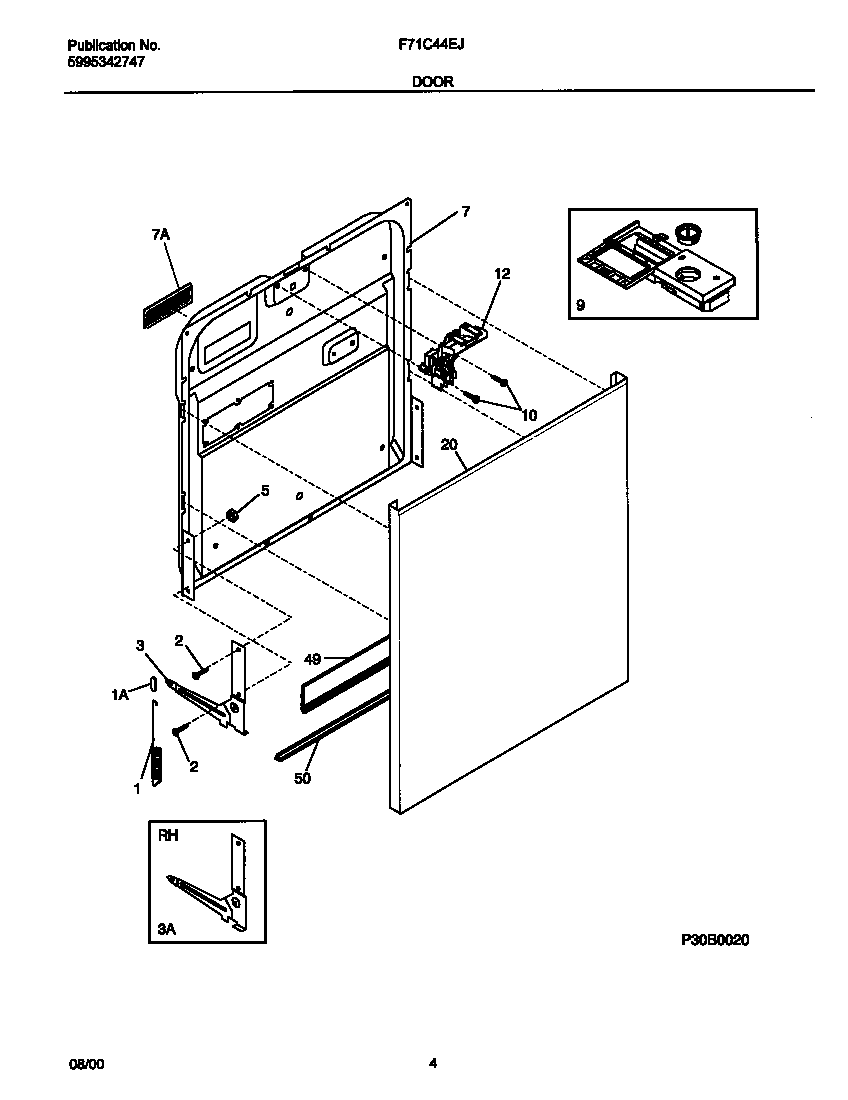

F71C44EJB0 03 – DOOR

F71C44EJB0 03 – DOOR

Written by

in

F71C44EJB0 03 – DOOR

Products

PositionProduct
*14245154294701 Frigidaire Dishwasher Screw
*14244PIN-ARM (NOT ILLUSTRATED)
*14247INSULATION,DOOR
*14246WCI 154320301
1154325201 Frigidaire Linkage Spring
1154430601 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
7WCI 154226601
9154574401 Frigidaire Dishwasher Dispenser
10154103702 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154359103
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
