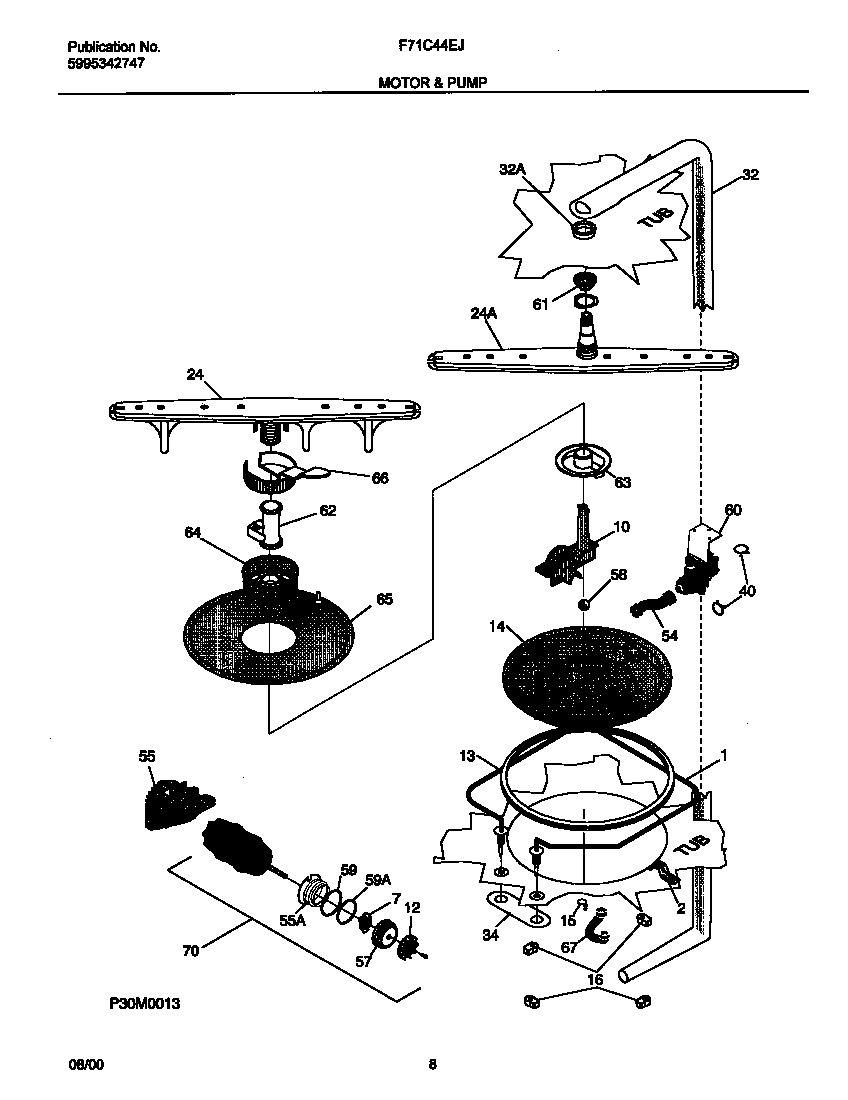

F71C44EJB0 05 – MOTOR & PUMP

F71C44EJB0 05 – MOTOR & PUMP

Written by

in

F71C44EJB0 05 – MOTOR & PUMP

Products

PositionProduct
*14257WCI 5303316032
*14262WCI 154338601
*14259BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*14258WCI 154246101
*14253154106202 Frigidaire Dishwasher Heater Nut
*14254154289801 Frigidaire Dishwasher Shield
*14256154611101 Frigidaire Dishwasher Clamp
*14260154754901 Frigidaire Dishwasher Screw
*14255SCREW, SS IMPELLER (NOT ILLUSTRATED)
*14261WCI 154329001
*14263WCI 154200601
1154665201 Frigidaire Dishwasher Heater
2WCI 154359701
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154365902
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24A154313601 Frigidaire Dishwasher Control Arm P1
24BWCI 154252001
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251701
32154406401 Frigidaire Delivery Tube Gasket
34WCI 154064901
40A154348401 Frigidaire Dishwasher Clamp
40BWCI 154348501
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154325701
55WCI 154246201
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154247502
61WCI 154359601
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
