Aparts

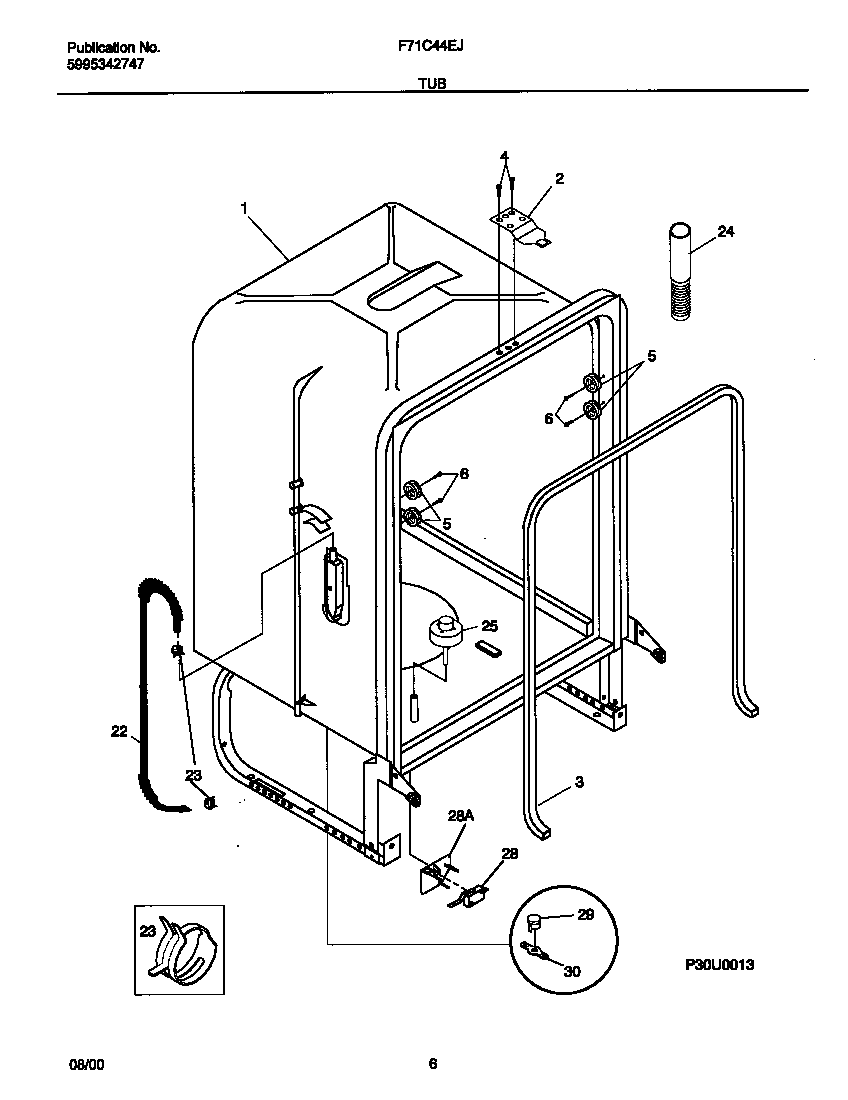

F71C44EJS0 04 – TUB

F71C44EJS0 04 – TUB

Written by

in

F71C44EJS0 04 – TUB

Products

PositionProduct
*14250WCI 5300807270
*14249808690701 Frigidaire Dishwasher Screw
*14248154297701 Frigidaire Dishwasher Screw
*14251154641601 Frigidaire Dishwasher Insulation
*142525304520581 Frigidaire Dishwasher Insulation
1WCI 154209301
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
4WCI 154200602
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28WCI 154225501
28AFLOAT SWITCH ASSY
29154290204 Frigidaire Dishwasher Thermostat
30154241101 Frigidaire Dishwasher Retainer
