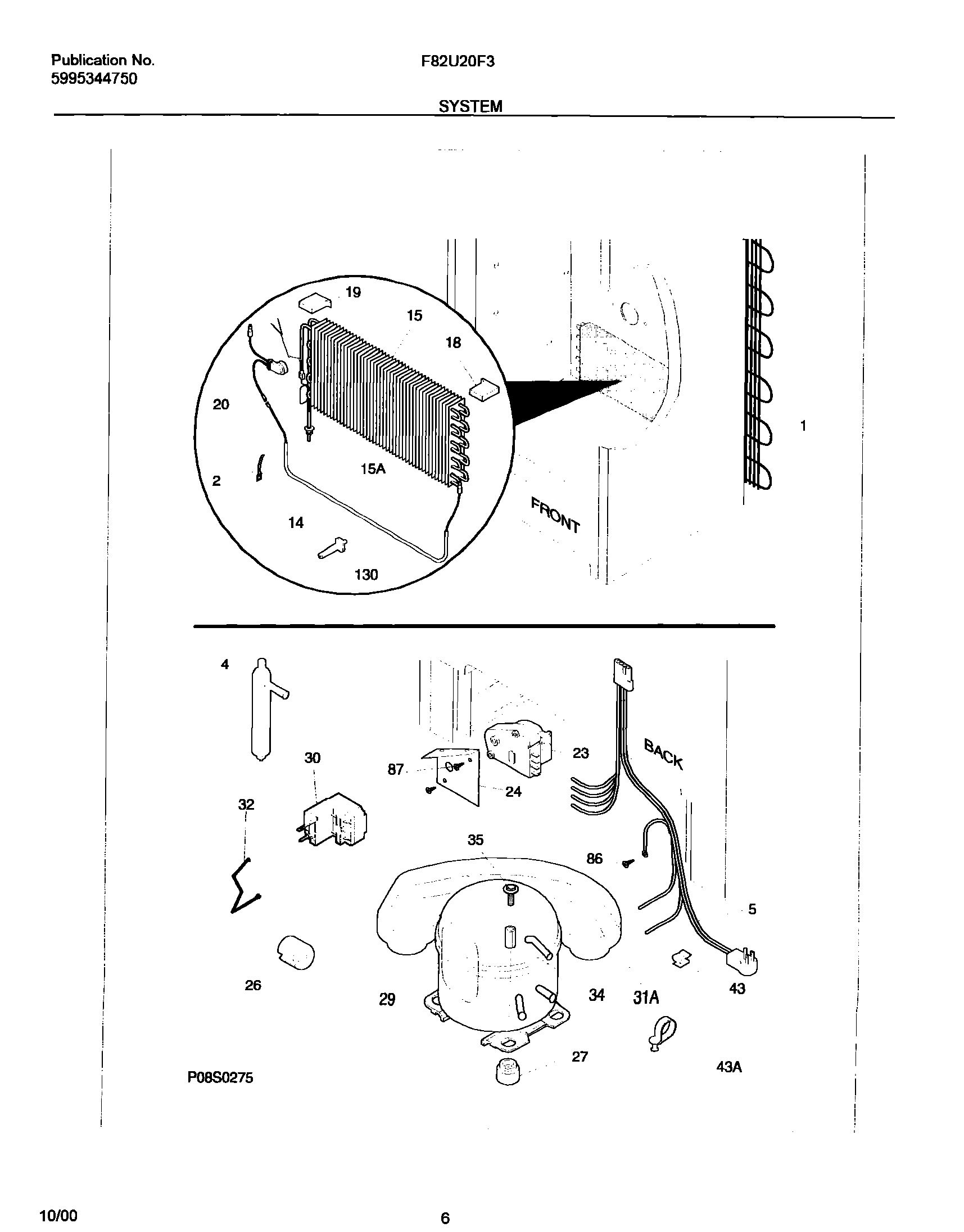

F82U20F3W1 07 – SYSTEM

F82U20F3W1 07 – SYSTEM

Written by

in

F82U20F3W1 07 – SYSTEM

Products

PositionProduct
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216761900
14216730700 Frigidaire Refrigerator Defrost Heater
15297414901 Frigidaire Refrigerator Evaporator
15AWCI 216751000
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
26WCI 216511900
27216498900 Frigidaire Refrigerator Grommet
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 216649309
31A5304428401 Frigidaire Refrigerator Pan Kit
32WCI 216731900
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43WCI 09950610
43A297315800 Frigidaire Refrigerator Clip
86216036601 Frigidaire Refrigerator Screw
87SCREW
130WCI 216730400
