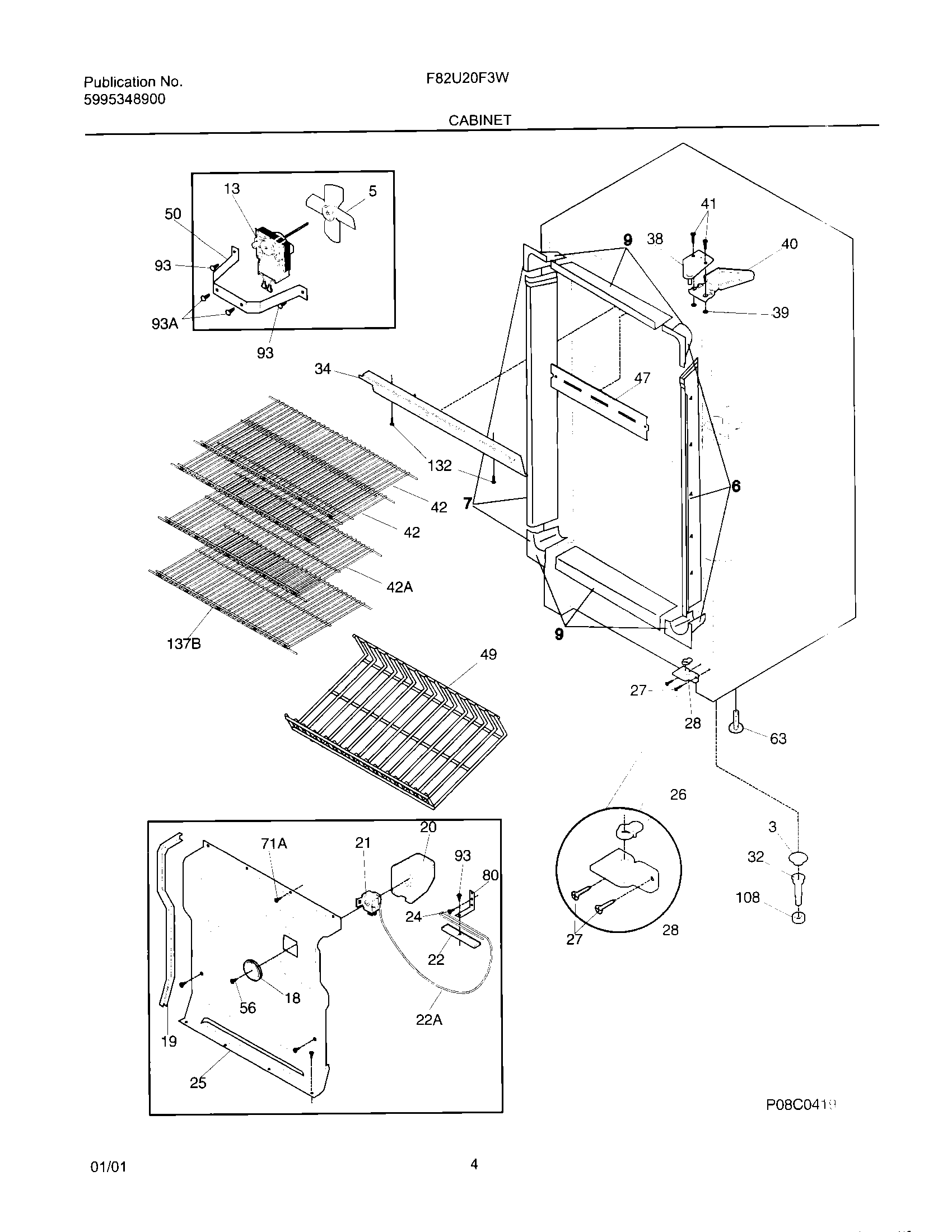

F82U20F3W2 05 – CABINET
Written by
in
F82U20F3W2 05 – CABINET
Products
Position
Product
NI
216502400 Frigidaire Refrigerator Grommet Unit
NI
WCI 09948773
NI
5303321319 Frigidaire Refrigerator White Touch Up Paint
3
216503100 Frigidaire Refrigerator Screen-Drain
5
5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6
WCI 216604100
7
WCI 216603600
9
WCI 216603300
13
5304442620 Frigidaire Refrigerator Evaporator Fan Motor
18
216707200 Frigidaire Refrigerator Cold Control Knob
19
WCI 216204901
20
WCI 216230300
21
5304513033 Frigidaire Refrigerator Temperature Control
22
TUBE
22
WCI 05878562
24
SCREW, CLAMP, TRUSS HD CR, CONTROL
25
WCI 216737200
26
WCI 216503300
27
154518001 Frigidaire Refrigerator Screw
28
WCI 216247400
32
5304511843 Frigidaire Refrigerator Sleeve
34
WCI 216557600
38
WCI 5303925086
39
WCI 5303294372
40
COVER, HINGE
41
WCI 5303212937
42
WCI 216458400
42
WCI 216458500
47
297192903 Frigidaire Refrigerator Baffle
49
WCI 216279000
50
WCI 216394000
63
216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71
216036601 Frigidaire Refrigerator Screw
80
WCI 06594601
93
216858001 Frigidaire Refrigerator Screw
93
WCI 5303302760
108
WCI 216388600
132
WCI 5303283898
137
WCI 216546000
←
