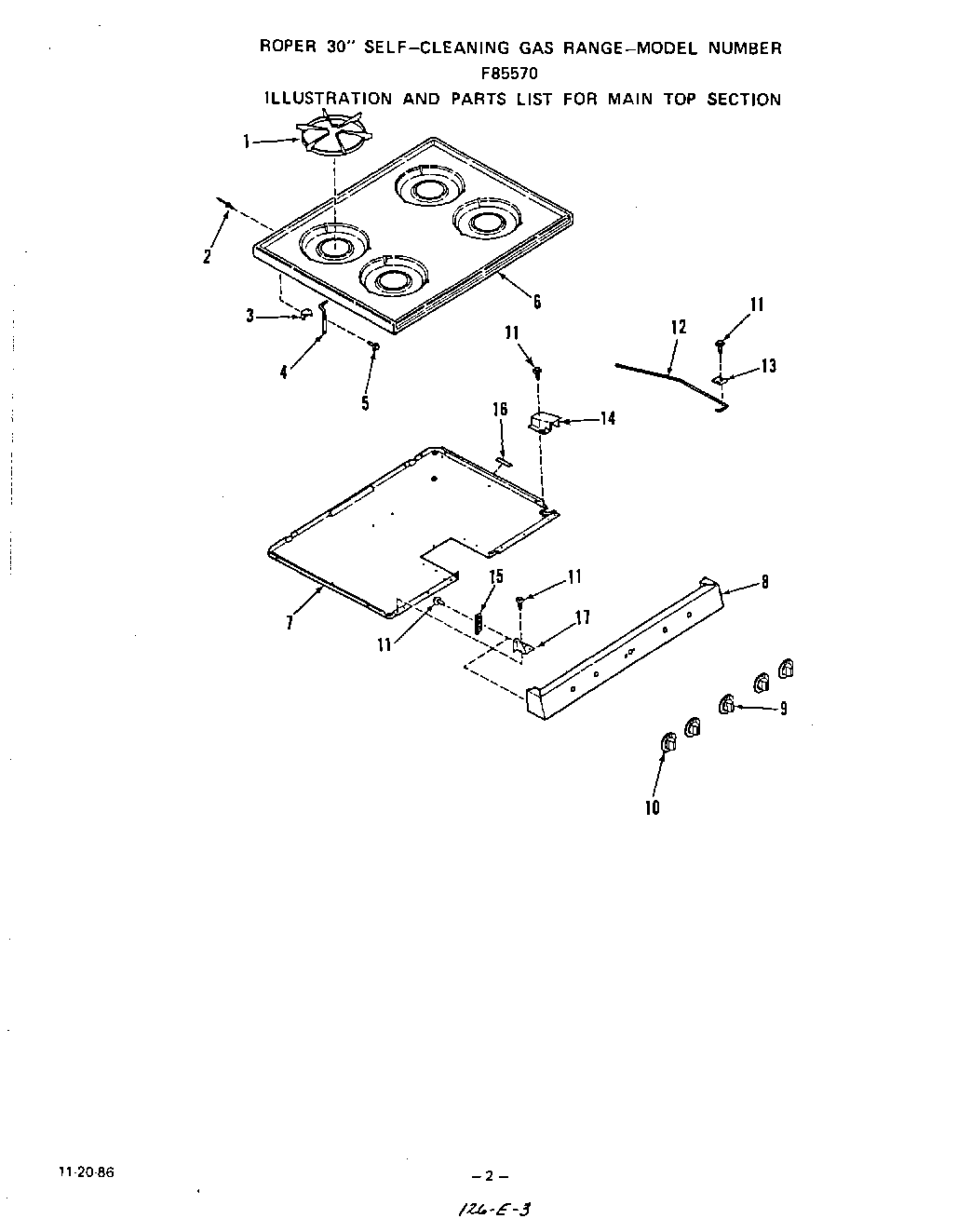

F8557^0 03 – TOP BURNER

Products

PositionProduct
1Top Grate (4 Req)
2Rivet
3Hinge Bracket
4Hinge
4Left
4Right
5WPL 321162
6Main Top (Almond)
6Main top (White)
6Main Top
7Burner Box Bottom
8Manifold Panel
9Thermostat Knob
10Gas Valve Knob
11Screw 10-16×7/16“
12Support Rod
13Clamp
14Wire Cover
15Body Side Cleat
16Tubing Spacer
17Manifold Panel Bracket (Right)
17Manifold Panel Bracket (Left)
17Manifold Panel Bracket
