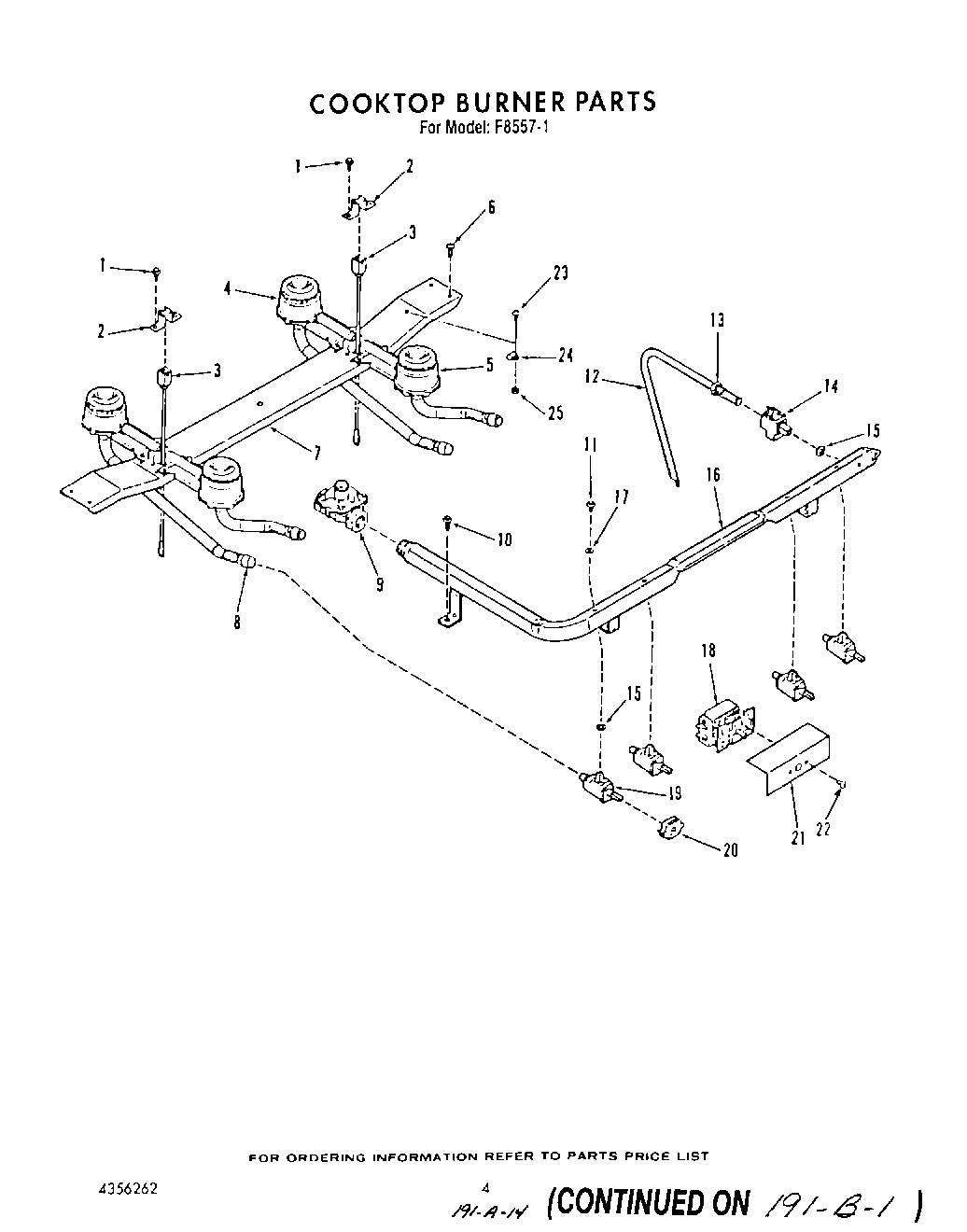

F8557^1 04 – COOK TOP BURNER

Products

Position	Product
1	WP489128 Whirlpool Refrigerator Screw
2	Bracket-Ignitor (Lt or Rt)
3	Electrode (Left)
3	Electrode (Right)
4	Burner-Rear, Lt. or Rt. (Incl. No.8)
5	Burner, Front-Lt. or Rt. (Incl. No.8)
6	Screw
7	Support, Top Burner
8	Air Shutter
9	Regulator-Pressure
10	SCREW
11	Screw, Mounting-1 Each-illus. 10 & 20
12	Tubing 3/8“
13	Nut, Inverted 3/8
14	Valve, Shut Off
15	Seal, Valve-1 ea. Illus. 10 & 20
16	Manifold
17	Seal (for No.26)
18	Thermostat
19	Gas Valve (LF, LR and RR)
20	Switch, Gas Valve
21	Shield-Thermostat
22	Screw
23	Screw, No.8-32 x 3/8
24	Clip
25	WP488130 Whirlpool Air Conditioner Nut
