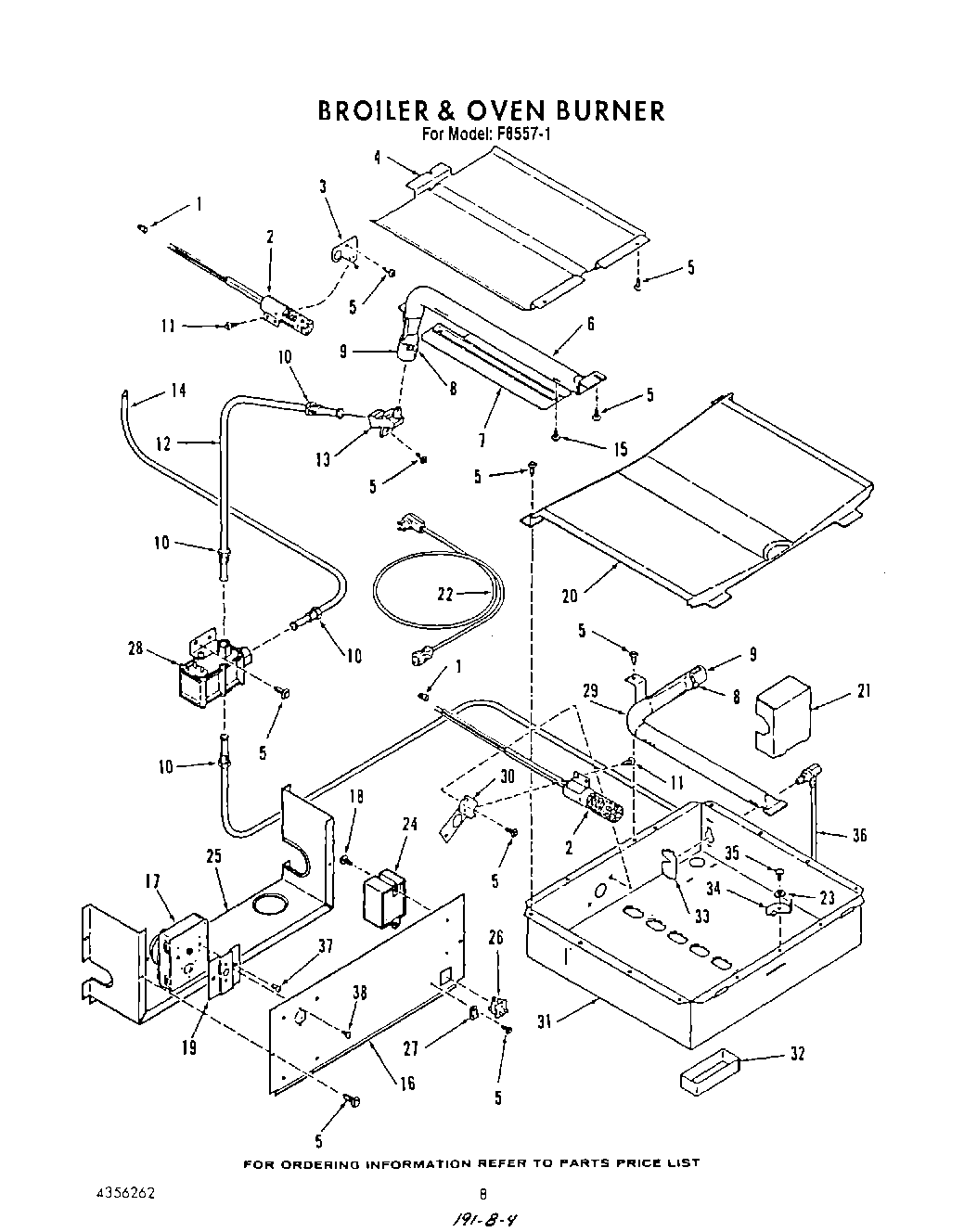

F8557^1 07 – BROILER AND OVEN

F8557^1 07 – BROILER AND OVEN

Products

PositionProduct
1WP4323866 Whirlpool Connector
2Ignitor-Bake/Broil
3Bracket, Broiler Burner Igniter
4Burner
4Baffle-Broiler Burner
5SCREW
6Broiler Burner, (Inc`s 7,8,9,15)
7Baffle
8Screw, Adjustment-Air Shutter
9Shutter, Air
10Nut, Inverted 3/8
11W10850756 Whirlpool Screw
12Tubing 3/8``, Control Valve to Broiler Orifice
13Fitting-Orifice/-Broiler Burner
14Tubing 3/8``
15WP489128 Whirlpool Refrigerator Screw
16Cover, Component Bracket
17Timer
18Screw 6-20x3/8
19Bracket, Timer
20Baffle, Burner
21Shield, Orifice Fitting
22Power Cord
23Washer, Spring
24Module-Spark
25Bracket, Component Mounting
26Disconnect
27Clip (For No.1)
28Control Valve
29Burner, Oven
30Bracket, Igniter
31Bottom, Burner Box
32Retainer, Orifice Insulation
33Plate, Orifice Mounting
34Latch, Burner Box Bottom
35Screw, Shoulder
36Tubing 3/8``, with Orifice Fitting (Control Valve to Oven Burner)
37Screw, No.6-32 x 3/16
38Screw
