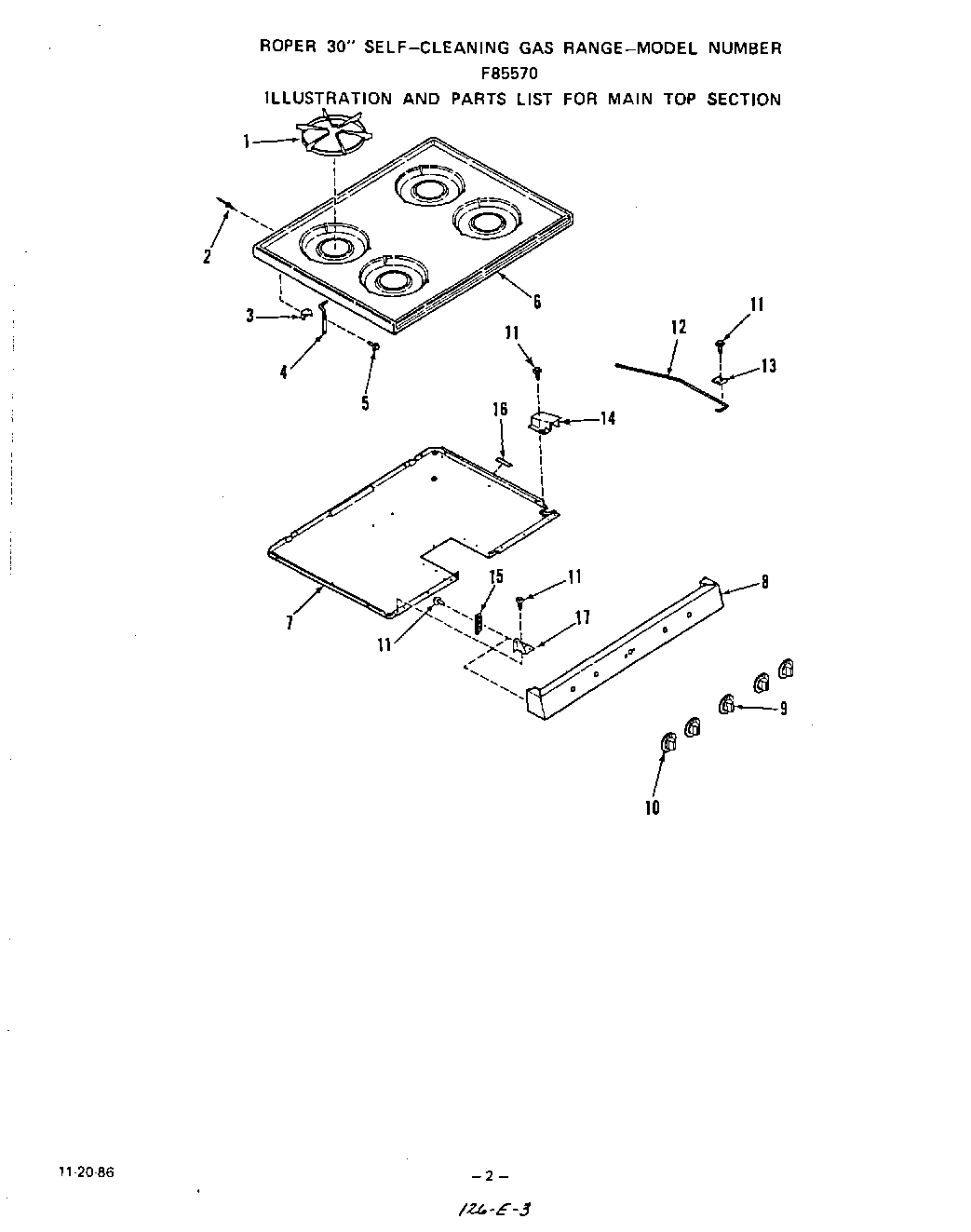

F8557W0 03 – TOP BURNER

Products

Position	Product
1	Top Grate (4 Req)
2	Rivet
3	Hinge Bracket
4	Right
4	Left
4	Hinge
5	WPL 321162
6	Main Top
6	Main Top (Almond)
6	Main top (White)
7	Burner Box Bottom
8	Manifold Panel
9	Thermostat Knob
10	Gas Valve Knob
11	Screw 10-16×7/16“
12	Support Rod
13	Clamp
14	Wire Cover
15	Body Side Cleat
16	Tubing Spacer
17	Manifold Panel Bracket (Left)
17	Manifold Panel Bracket (Right)
17	Manifold Panel Bracket
