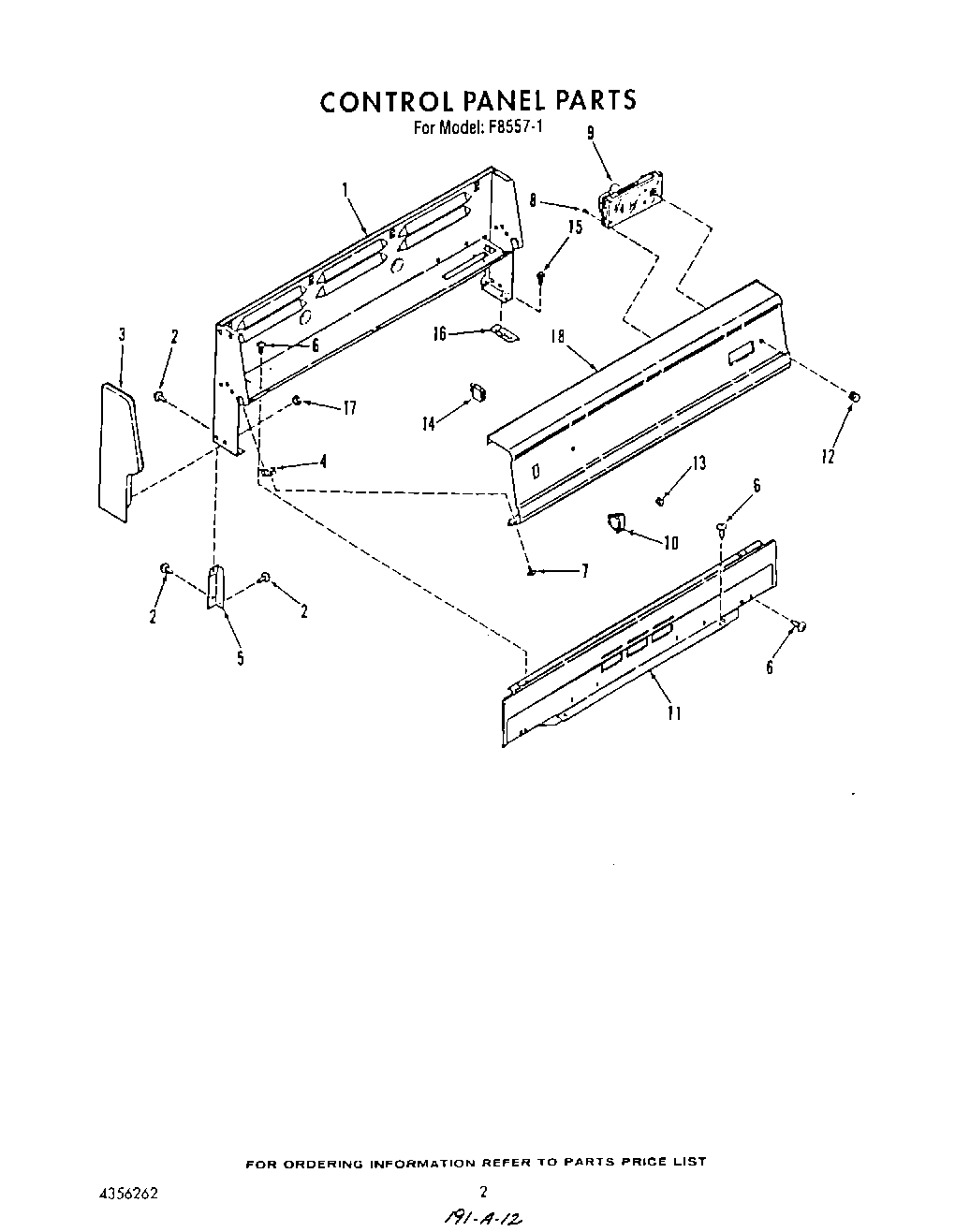

F8557W1 02 – CONTROL PANEL

F8557W1 02 – CONTROL PANEL

Written by

in

F8557W1 02 – CONTROL PANEL

Products

PositionProduct
Lens, Clock
1Backguard
2SCREW
3End Cap (Left)
3End Cap (Right)
4Clip, Backguard
5Support, Backguard (Left)
5Support, Backguard (Right)
6WP308685 Whirlpool Microwave Screw
7Screw
8Screw
9Clock
10WP4314961 Whirlpool Lite Switch
11Panel-Lower Front
12Knob, Clock
13WP9750343 Whirlpool Light Lens
14Indicator Light, (Surface Unit)
15W10850756 Whirlpool Screw
16Cleat
17WP308499 Whirlpool Nut
18Panel, Control
