F8557W1 03 – COOK TOP
Written by
in

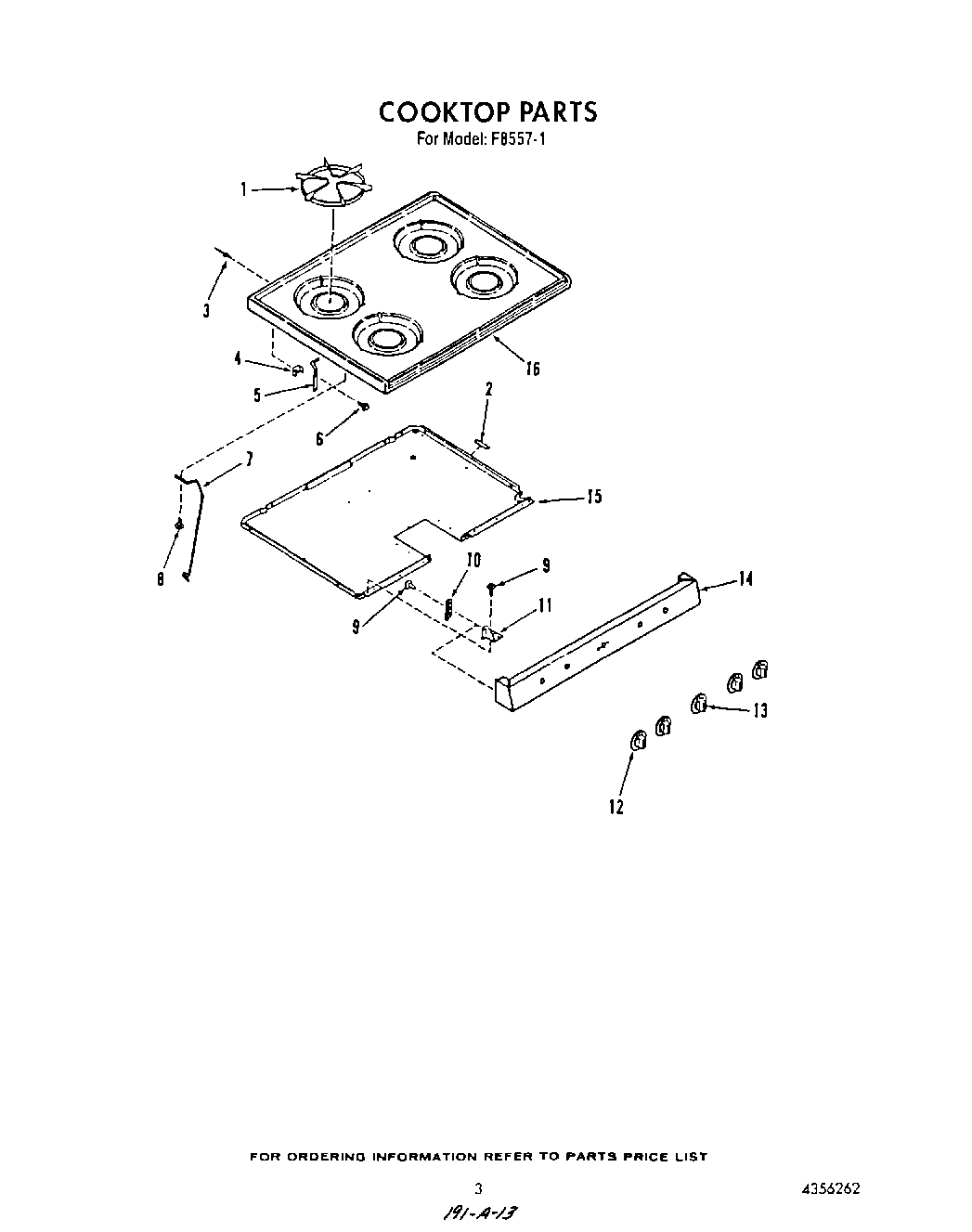

F8557W1 03 – COOK TOP
Products
Position
Product
1
Grate, Burner (4)
2
Spacer, Tubing
3
Rivet
4
Bracket, Mounting
5
Hinge (Left)
5
Hinge (Right)
6
WP999367 Whirlpool Refrigerator Screw
7
Support Rod (2)
8
Screw
9
SCREW
10
Cleat
11
Bracket, Manifold (Left)
11
Bracket, Manifold (Right)
12
Knob, Gas Valve
13
Knob, Thermostat
14
Panel, Manifold
15
Bottom, Burner Box
16
Cooktop (Almond)
16
Cooktop (White)
←
