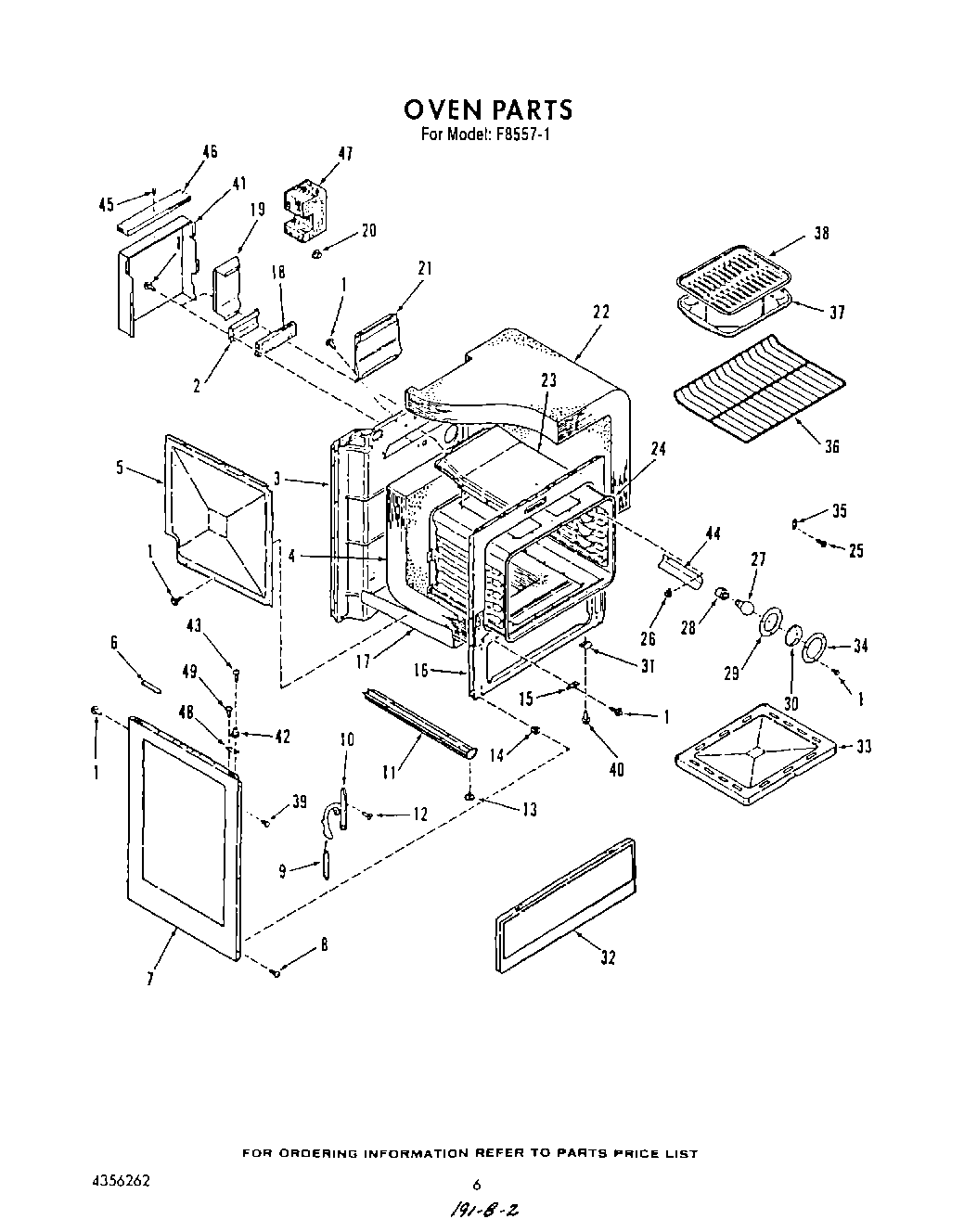

F8557W1 06 – OVEN , LIT/OPTIONALadmin2025-04-26T11:52:38+00:00F8557W1 06 – OVEN , LIT/OPTIONAL
Products
| Position | Product |
|---|
| Wire Harness Parts Not Listed May Be Purchased Locally |
| 1 | SCREW |
| 2 | Shield, Wire |
| 3 | Back |
| 4 | Insulation, Back And Bottom |
| 5 | Retainer-Insul. (Lt/Rt) |
| 6 | Spacer |
| 7 | Side, Cabinet (White) |
| 7 | Side, Cabinet (Almond) |
| 8 | Screw No.8x5/8 |
| 9 | Spring, Door (Lt/Rt) |
| 10 | Hinge, Oven Door (Left) |
| 10 | Hinge, Oven Door (Right) |
| 11 | Base, W/ Levelers (2) |
| 12 | Screw |
| 13 | Levelers, Leg (4) |
| 14 | Nut-Expansion (6) |
| 15 | Catch |
| 16 | Frame, Front |
| 17 | Retainer, Lower Insulation |
| 18 | Insulation |
| 19 | Shield, Wire |
| 20 | Bushing |
| 21 | Deflector, Flue |
| 22 | Insulation, Top And Sides (1 Pc) |
| 23 | Flue Box |
| 24 | Oven Cavity |
| 25 | Screw |
| 26 | Clip |
| 27 | RANGE ONLY 40W 120V APPL BULB |
| 28 | W10856866 Whirlpool Light Socket |
| 29 | Gasket, Lens |
| 30 | Lens, Oven Light |
| 31 | Support, Lower Front Panel |
| 32 | Lower Front Panel (White) |
| 32 | Lower Front Panel (Almond) |
| 33 | Bottom, Oven |
| 34 | Retainer, Lens |
| 35 | Cover |
| 36 | Rack, Oven |
| 38 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 39 | Rivet |
| 40 | W10850756 Whirlpool Screw |
| 41 | Shield, Deflector |
| 42 | Strike |
| 43 | Screw No.6-32x7/8 |
| 44 | Shield |
| 45 | Button |
| 46 | Insulation |
| 47 | Insulation |
| 48 | Support, Side (Left) |
| 48 | Support, Side (Right) |
| 49 | WP285432 Whirlpool Terminal |
| 49 | Repair Parts List |
| 49 | Use & Care Manual |
| 49 | Installation Guide |
| 49 | Wire Harness (3/16``) |
| 49 | Wire Harness (Flag Terminal Faston Terminal) |
| 49 | Screw |
