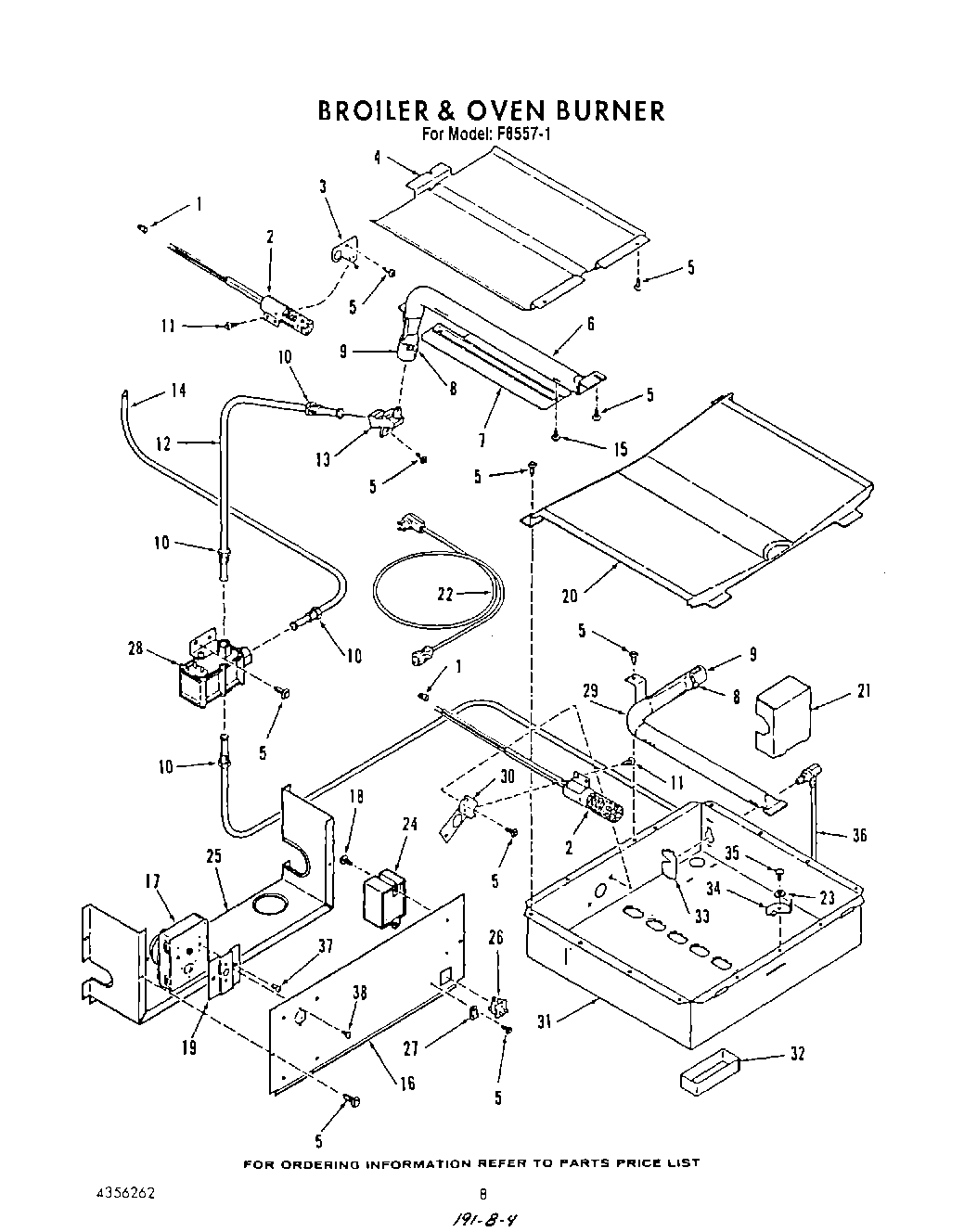

F8557W1 07 – BROILER AND OVENadmin2025-04-26T11:54:32+00:00F8557W1 07 – BROILER AND OVEN
Products
| Position | Product |
|---|
| 1 | WP4323866 Whirlpool Connector |
| 2 | Ignitor-Bake/Broil |
| 3 | Bracket, Broiler Burner Igniter |
| 4 | Burner |
| 4 | Baffle-Broiler Burner |
| 5 | SCREW |
| 6 | Broiler Burner, (Inc`s 7,8,9,15) |
| 7 | Baffle |
| 8 | Screw, Adjustment-Air Shutter |
| 9 | Shutter, Air |
| 10 | Nut, Inverted 3/8 |
| 11 | W10850756 Whirlpool Screw |
| 12 | Tubing 3/8``, Control Valve to Broiler Orifice |
| 13 | Fitting-Orifice/-Broiler Burner |
| 14 | Tubing 3/8`` |
| 15 | WP489128 Whirlpool Refrigerator Screw |
| 16 | Cover, Component Bracket |
| 17 | Timer |
| 18 | Screw 6-20x3/8 |
| 19 | Bracket, Timer |
| 20 | Baffle, Burner |
| 21 | Shield, Orifice Fitting |
| 22 | Power Cord |
| 23 | Washer, Spring |
| 24 | Module-Spark |
| 25 | Bracket, Component Mounting |
| 26 | Disconnect |
| 27 | Clip (For No.1) |
| 28 | Control Valve |
| 29 | Burner, Oven |
| 30 | Bracket, Igniter |
| 31 | Bottom, Burner Box |
| 32 | Retainer, Orifice Insulation |
| 33 | Plate, Orifice Mounting |
| 34 | Latch, Burner Box Bottom |
| 35 | Screw, Shoulder |
| 36 | Tubing 3/8``, with Orifice Fitting (Control Valve to Oven Burner) |
| 37 | Screw, No.6-32 x 3/16 |
| 38 | Screw |
