F8557W1 08 – OVEN DOOR , GRIDDLE

F8557W1 08 – OVEN DOOR , GRIDDLE

Written by

in

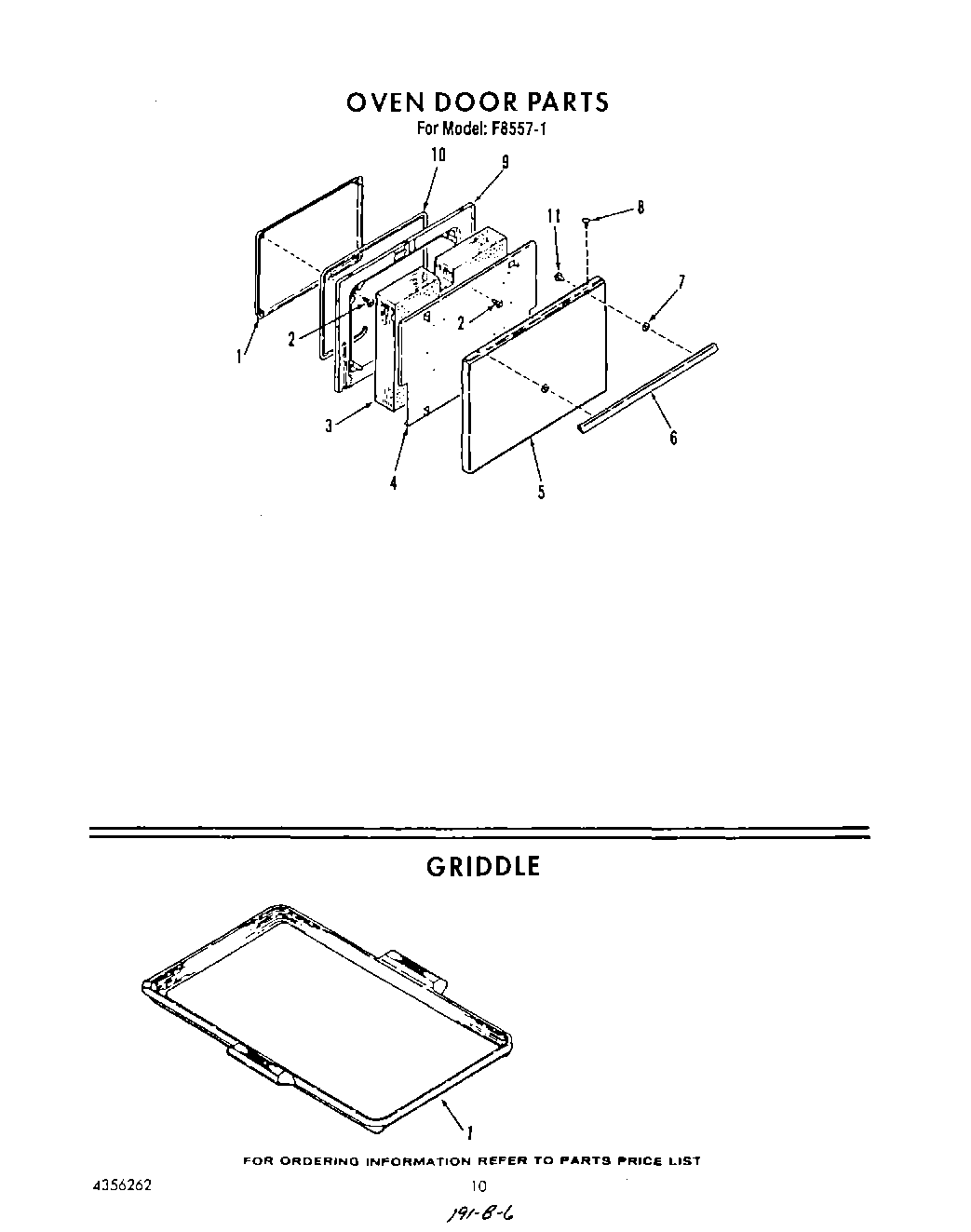

F8557W1 08 – OVEN DOOR , GRIDDLE

Products

Position	Product
1	Plug, Inner Door
1	Griddle, Set-On
2	SCREW
3	Insulation
4	Retainer, Insulation
5	Panel, Outer (White)
5	Panel, Outer (Almond)
6	Handle
7	Spacer, Dr. Handle
8	Screw
9	Lining
10	Gasket, Door
11	Screw, No.10-32 x 1/2
