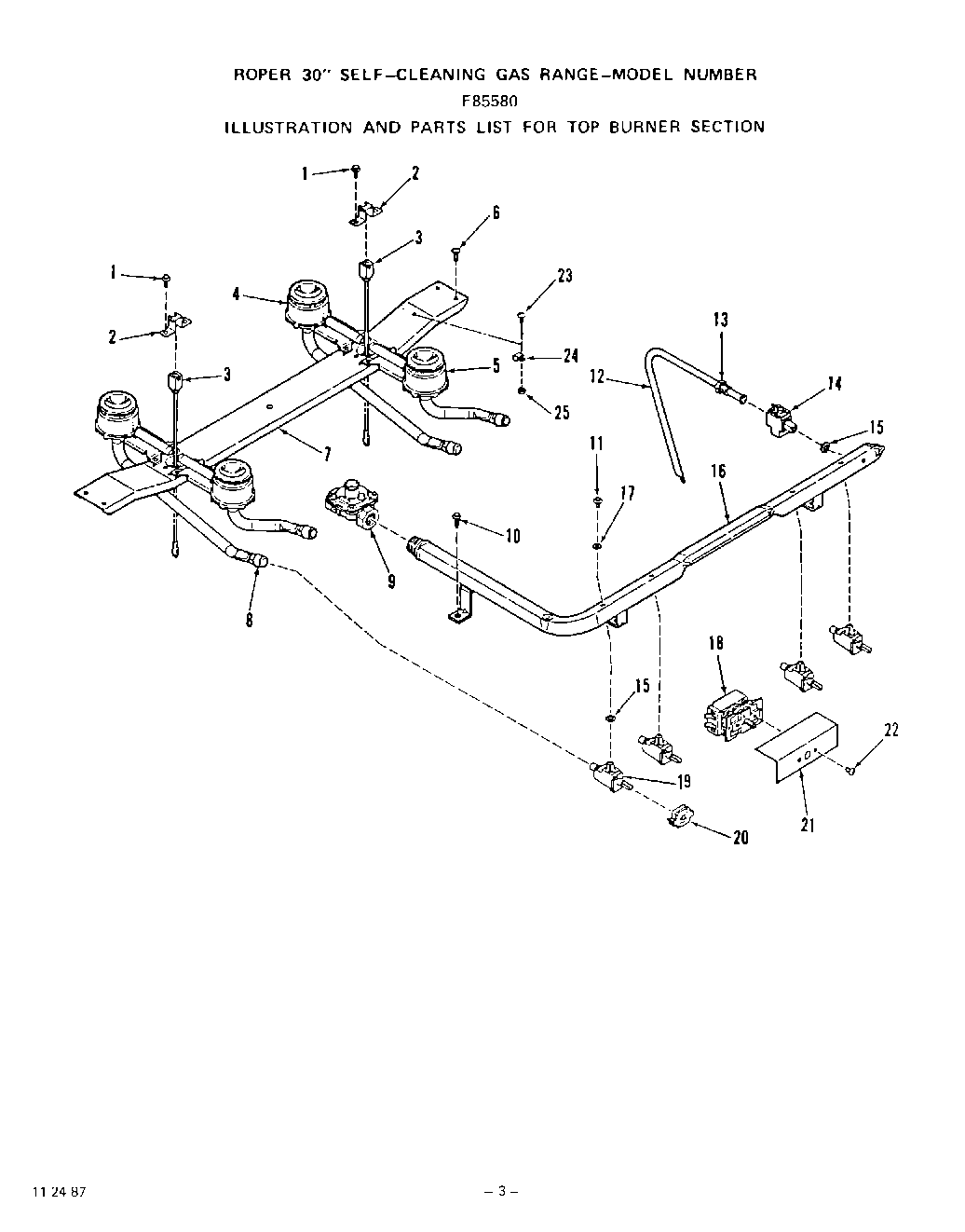

F8558^0 04 – TOP BURNER

Products

Position	Product
1	Screw 8 – 32×3/8“
2	panel, side l.h. (almond panel, side r.h.)
3	Electrode
3	Left
3	Right
4	Rear Burner-Lt. or Rt.. (Inc`s. Key 8)
5	Front Burner-Lt. or Rt. (Inc`s. Key 8)
6	Screw
7	Support-Top Burner
8	Air Shutter
9	Pressure Regulator
10	Screw 10-16×7/16“
11	Mounting Screw (Inc`s 86)
12	Tubing 3/8“
13	Inverted Nut 3/8“
14	Shut Off Valve
15	Silicone Rubber Gasket
16	Manifold Pipe
17	Silicone Rubber Gasket (For Key 26)
18	Thermostat-Oven
19	Gas Valve (4 Req) (Inc`s. 20)
20	Panel, Side L.H. (White)
21	Shield-Thermostat
22	WPL 78565
23	Screw 8-32 x 3/8“
24	Clip
25	Keps Nut 8-32
