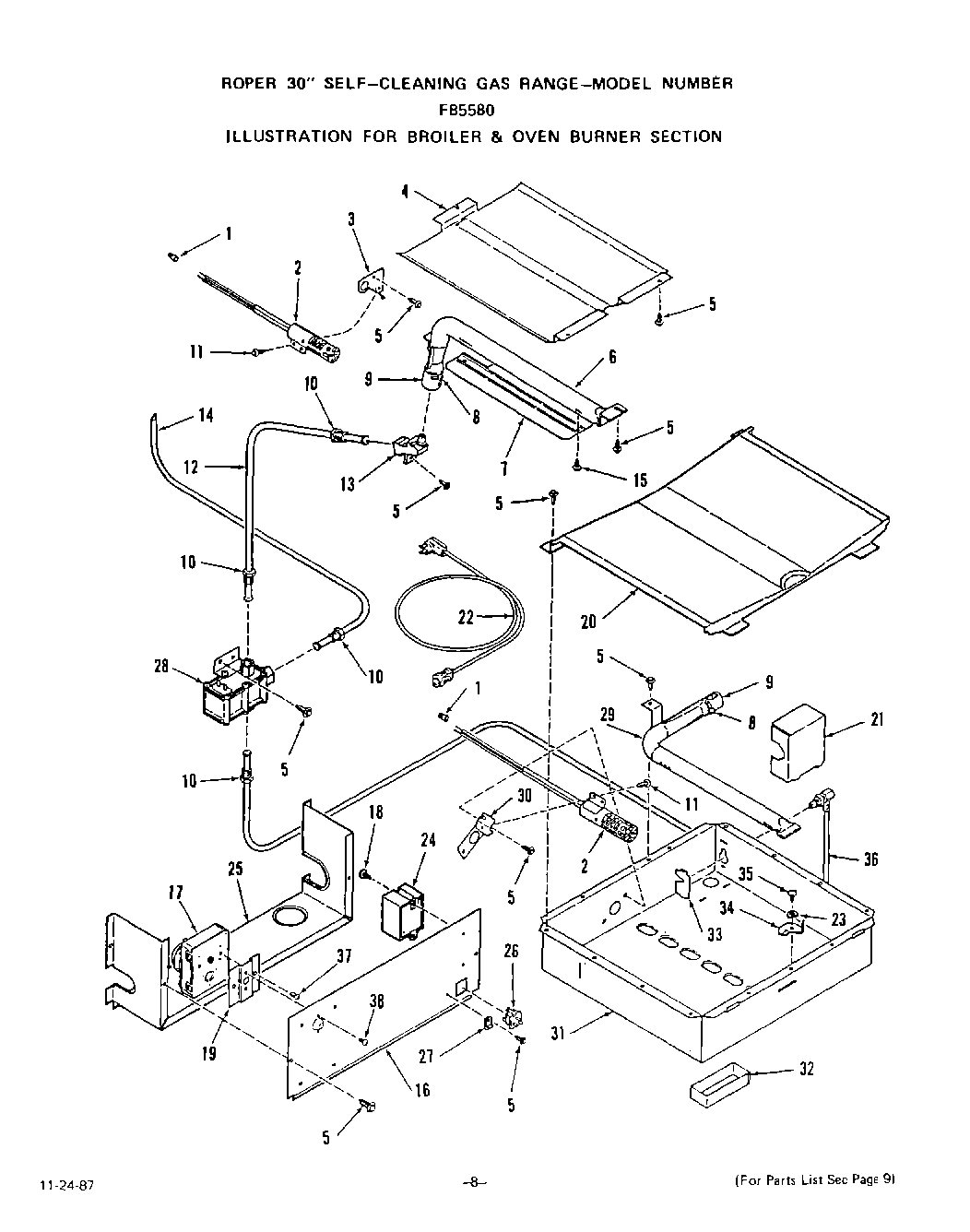

F8558^0 07 – BROILER AND OVEN BURNER

Products

Position	Product
1	Wire Connector (4 Req)
2	Igniter-Broiler & Oven Burner
3	Bracket-Broiler Burner Igniter
4	Baffle-Broiler Burner
5	Screw 10-16×7/16“
6	Broiler Burner (Inc`s. Keys 7, 8, 9, 15)
7	Baffle
8	Adjustment Screw -Air Shutter
9	Air Shutter
10	Inverted Nut 3/8“
11	WP112432 Whirlpool Nut Assembly
12	Tubing 3/8“ (Control Valve to Broiler Orifice)
13	Broiler Orifice Fitting
14	Tubing 3/8“
15	Screw 8 – 32×3/8“
16	Component Bracket Cover
17	Timer
18	Screw 6-20×3/8“
19	Timer Bracket
20	Baffle-Oven Burner
21	Shield-Orifice Fitting
22	Range Service Cord
23	Washer
24	Spark Module
25	Mounting Bracket-Components
26	Disconnect
27	Clip
28	Control Valve
29	Oven Burner
30	Bracket-Igniter
31	Bottom-Oven Burner Box
32	Insulation Retainer-Oven Orifice
33	Plate-Orifice Fitting
34	Latch-Oven Burner Box Bottom
35	Shoulder Screw
36	Tubing 3/8“w/Orifice Fitting (Con. Valve) to Oven Burner)
37	Screw 6-32×3/16“
38	WPL 78565
