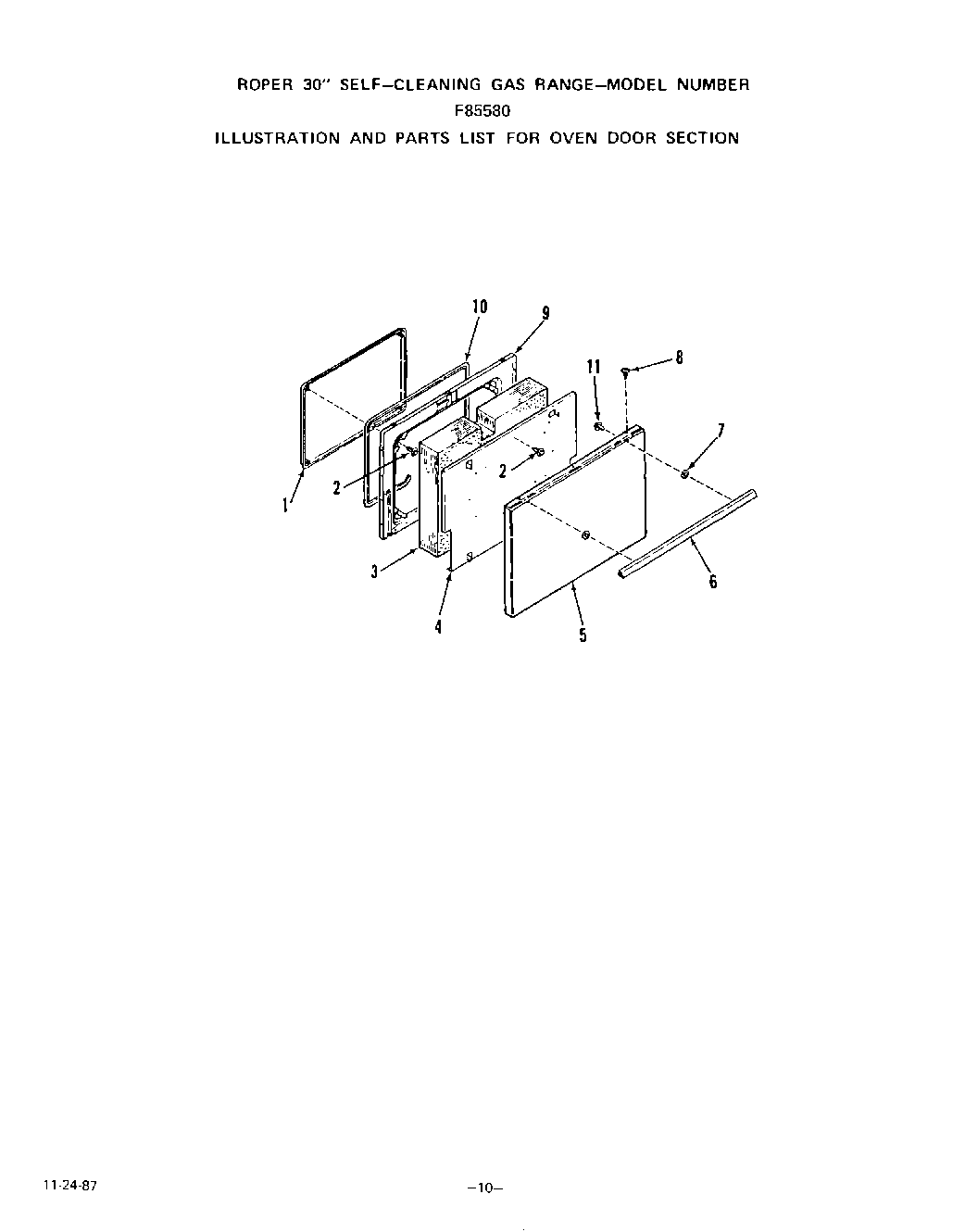

F8558^0 08 – OVEN DOOR
Products
| Position | Product |
|---|---|
| 1 | Plug |
| 2 | Screw 10-16x7/16`` |
| 3 | Insulation |
| 4 | Retainer-Insulation |
| 5 | White |
| 5 | Outer Panel |
| 5 | Almond |
| 6 | Handle |
| 7 | Spacer |
| 8 | Screw |
| 9 | Lining-Oven Door |
| 10 | Gasket-Oven Door |
| 11 | Screw 10 - 32 x 1/2`` |
