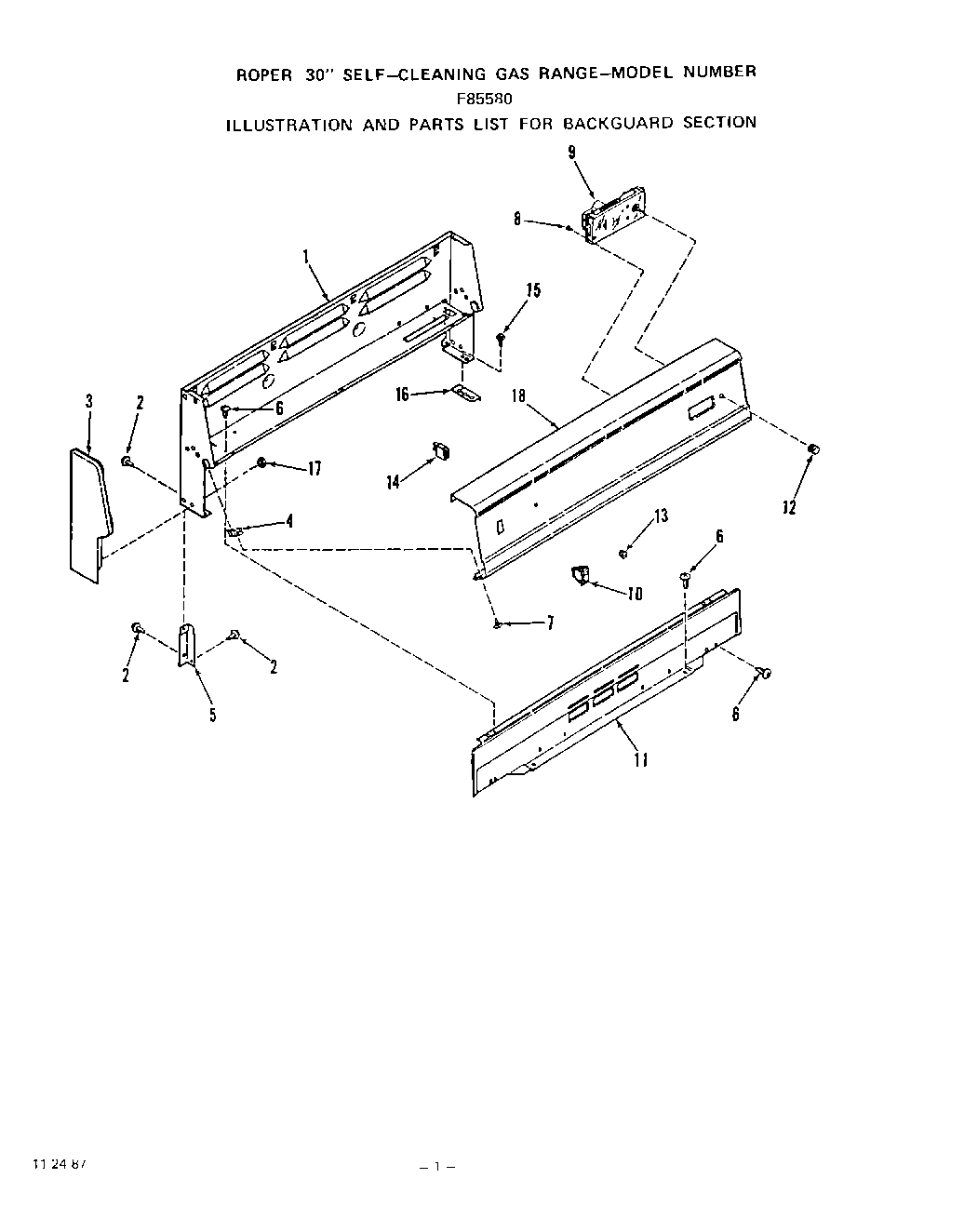

F8558L0 02 – BACK GUARD

Products

Position	Product
	Clock Lens
1	Backguard Body
2	Screw 10-16x7/16``
3	End Cap
3	Left
3	Right
4	Backguard Clip
5	Right
5	Left
5	Backguard Support
6	Screw 10ABx1/2``
7	Screw 10-16x1/2``
8	Screw 6-32x5/16``
9	Clock w/Lens
10	Switch-Oven Light
11	Backguard Lower Front Panel
12	Clock Knob
13	Lens-Indicator Light
14	Light-Indicator
15	Screw 10 - 32 x 7/16``
16	Body Side Cleat
17	Pal Nut
18	Control Panel
