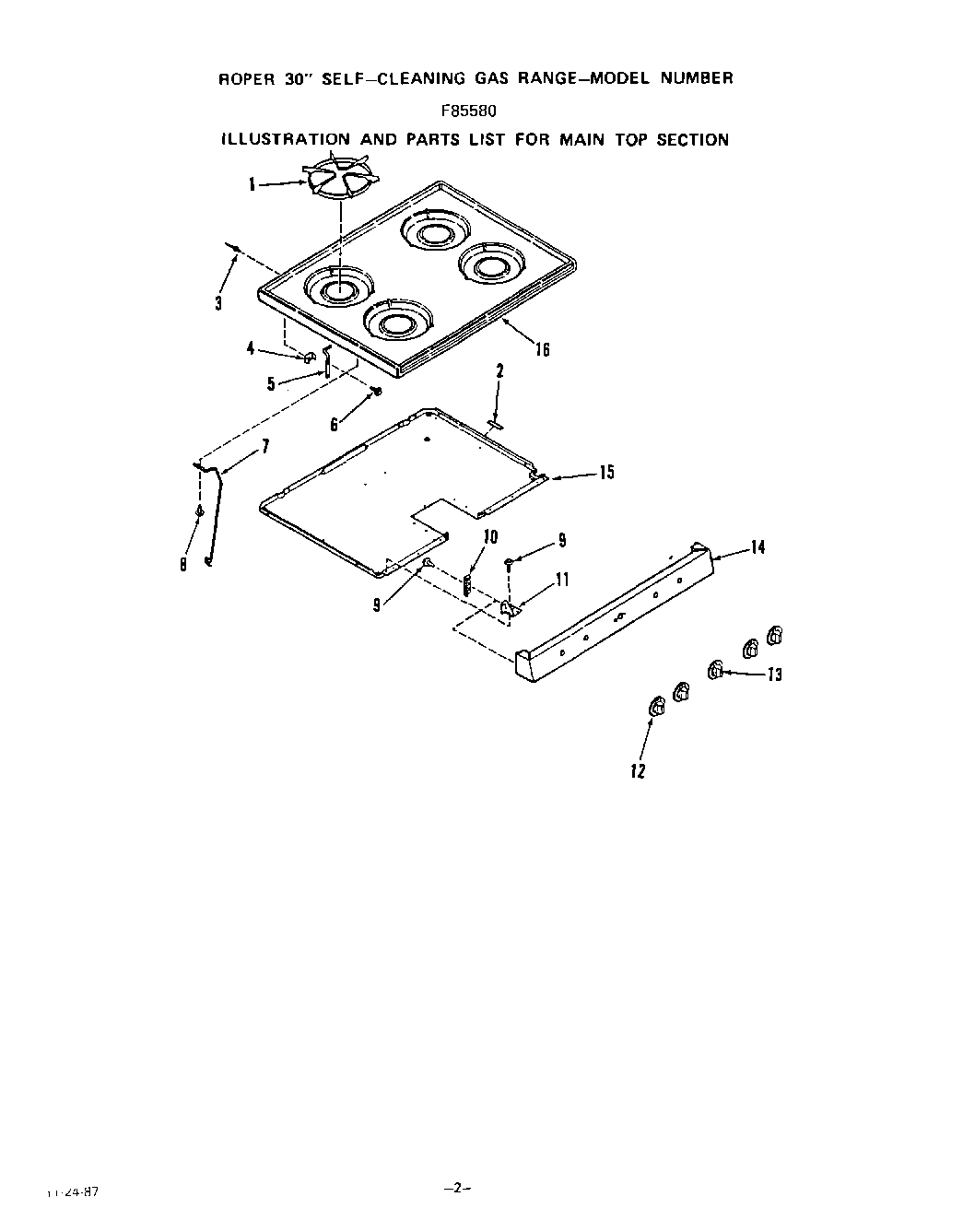

F8558L0 03 – MAIN TOP

Products

PositionProduct
1Top Grate (4 Req)
2Tubing Spacer
3Rivet
4Hinge Bracket
5Right
5Left
5Hinge
6WPL 321162
7Support Rod-Main Top (2 Req)
8Screw
9Screw 10-16×7/16“
10Body Side Cleat
11Manifold Panel Bracket (Left)
11Manifold Panel Bracket
11Manifold Panel Bracket (Right)
12Gas Valve Knob
13Thermostat Knob
14Manifold Panel
15Burner Box Bottom
16Main Top (Almond)
16Main top (White)
16Main Top
