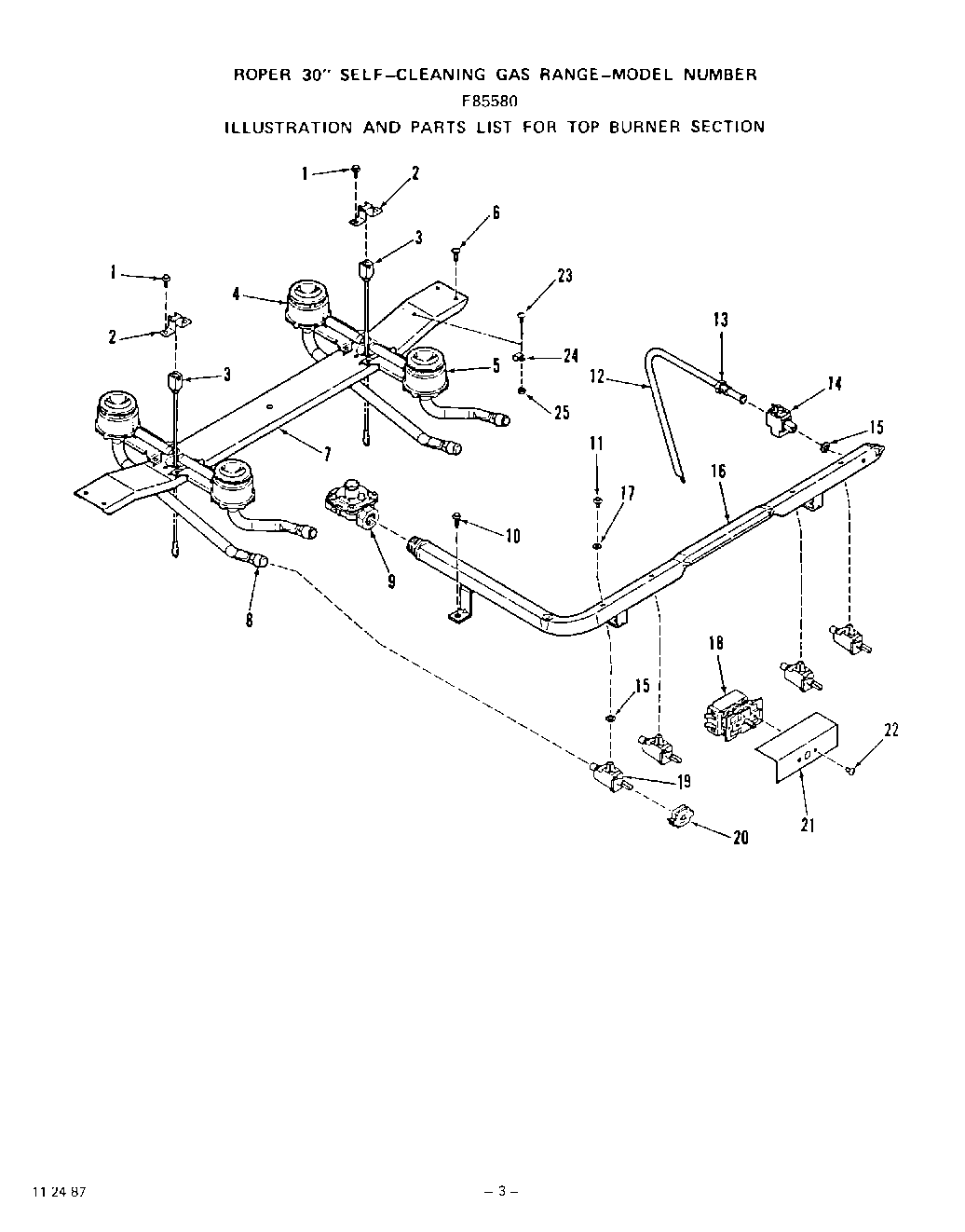

| 1 | Screw 8 - 32x3/8`` |
| 2 | panel, side l.h. (almond panel, side r.h.) |
| 3 | Left |
| 3 | Right |
| 3 | Electrode |
| 4 | Rear Burner-Lt. or Rt.. (Inc`s. Key 8) |
| 5 | Front Burner-Lt. or Rt. (Inc`s. Key 8) |
| 6 | Screw |
| 7 | Support-Top Burner |
| 8 | Air Shutter |
| 9 | Pressure Regulator |
| 10 | Screw 10-16x7/16`` |
| 11 | Mounting Screw (Inc`s 86) |
| 12 | Tubing 3/8`` |
| 13 | Inverted Nut 3/8`` |
| 14 | Shut Off Valve |
| 15 | Silicone Rubber Gasket |
| 16 | Manifold Pipe |
| 17 | Silicone Rubber Gasket (For Key 26) |
| 18 | Thermostat-Oven |
| 19 | Gas Valve (4 Req) (Inc`s. 20) |
| 20 | Panel, Side L.H. (White) |
| 21 | Shield-Thermostat |
| 22 | WPL 78565 |
| 23 | Screw 8-32 x 3/8`` |
| 24 | Clip |
| 25 | Keps Nut 8-32 |
