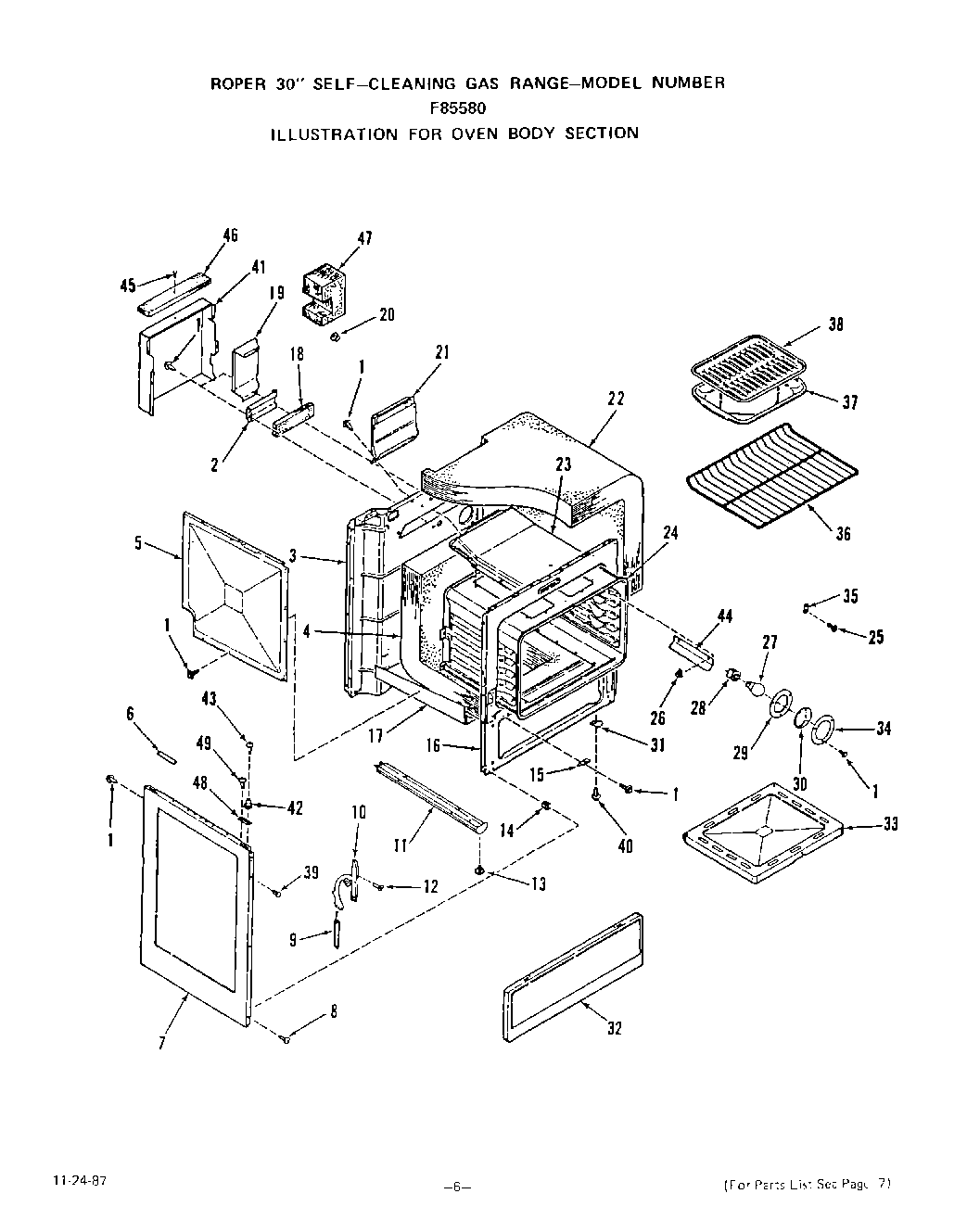

F8558W0 06 – OVEN BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Shield
3	Main Back
4	Insulation-Oven Back & Bottom (1 Piece)
5	Retainer-Insulation (Lt. or Rt.)
6	Spacer-Main Top
7	Body Side (Lt. or Rt.)
7	Body side (White)
7	Body Side (Almond)
8	Screw 8ABx5/8“
9	All 2354 Models
10	Hinge-Oven Door
10	Right
10	Left
11	Base w/Levelers-Lt. or Rt.
12	Screw
13	Leg Leveler (4 Req)
14	BURNER RECEPTACLE KIT
15	Catch-Lo Front Panel
16	Front Frame
17	Lower Insulation Retainer
18	Frame, Front
19	Wire Shield
20	Bushing
21	Flue Deflector
22	Insulation-Oven Top & Sides (1 Piece)
23	Flue Box
24	Oven Body
25	Screw
26	Clip-Thermostat Bulb (2 Req)
27	Oven Lamp Bulb
28	Holder-Oven Light Bulb
29	Gasket-Lens
30	Lens-Oven Light
31	Support-Lr. Front Panel
32	White
32	Panel-Lower Front
32	Almond
33	Oven Bottom
34	Retainer-Oven Light Lens
35	Cover Plate
36	Oven Rack (2 Req)
37	WPL 331592
38	WPL 326297
39	WPL 281160
40	WP112432 Whirlpool Nut Assembly
41	Shield-Flue Deflector
42	Strike
43	Screw 6-32×7/8“
44	Shield-Thermostat Bulb
45	Dart-Button Head (2 Required)
46	Insulation
47	Insulation
48	Body Side Support
48	WPL 334341
48	WPL 334340
49	Screw
