F8857^0 02 – BACKGUARD

F8857^0 02 – BACKGUARD

Written by

in

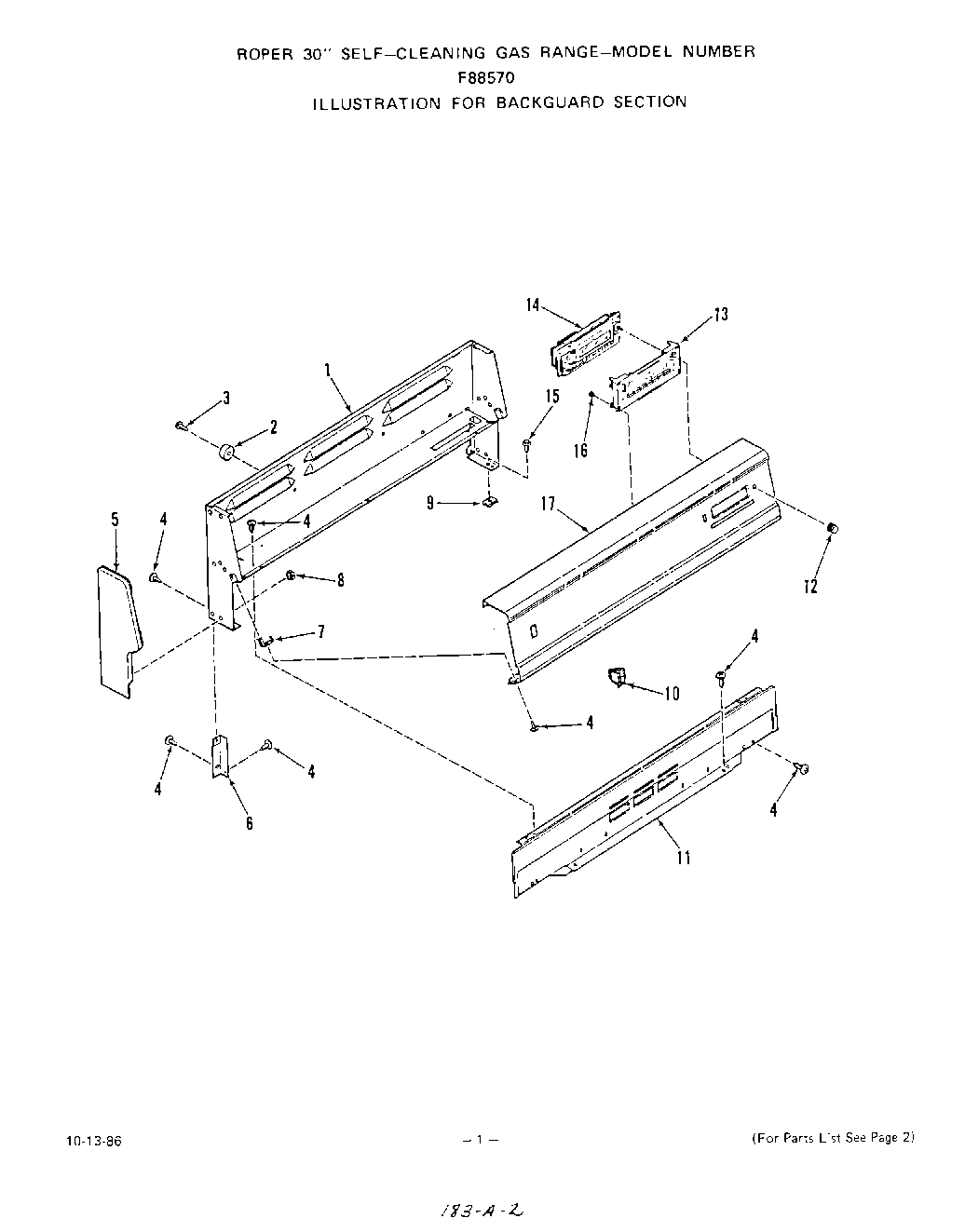

F8857^0 02 – BACKGUARD

Products

Position	Product
1	Backguard Body
2	Bumper
3	Screw 10-32×3/4“
4	Screw 10ABx1/2“
5	Left
5	End Cap
5	Right
6	Right
6	Left
7	Backguard Clip
8	Pal Nut
9	Speed Nut 10 – 32
10	Switch-Oven Light
11	Backguard Panel-Front
12	Clock/Oven Control Knob
13	Clock Lens Asm
14	Clock/Oven Control
15	WP112432 Whirlpool Nut Assembly
16	Screw 6-32×5/16“
17	Control Panel
