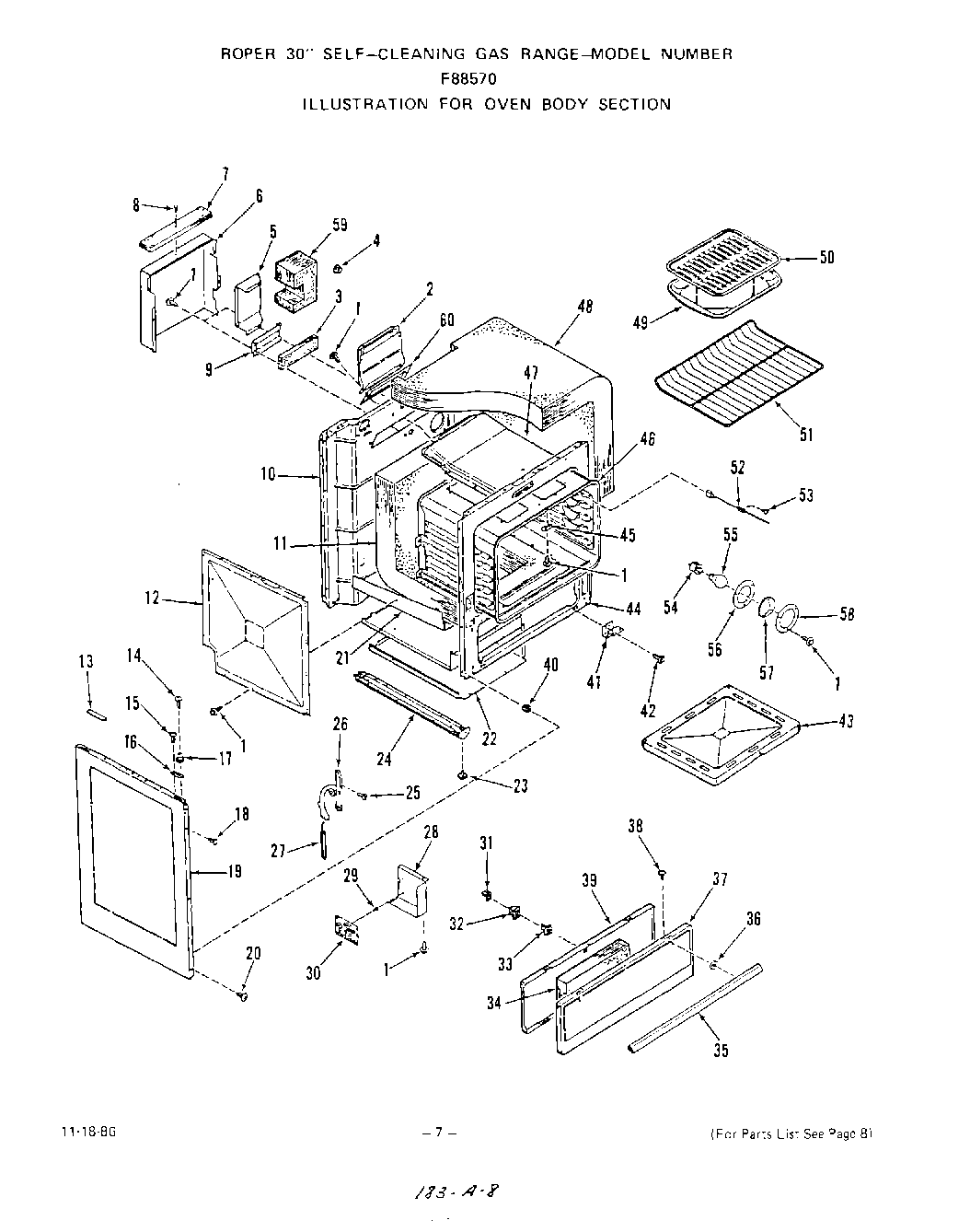

F8857^0 05 – OVEN BODY

Products

Position	Product
	Left
	Right
2	Flue Deflector
3	Frame, Front
4	Bushing
5	Wire Shield
6	Shield-Flue Deflector
7	Insulation
8	Dart-Button Head (2 Required)
9	Wire Shield
10	Main Back
11	Insulation-Oven Back & Bottom (1 Piece)
12	Retainer-Insulation (Lt. or Rt.)
13	Spacer-Main Top
14	Screw 6-32×7/8“
15	Screw 6-32 x 5/16“
16	WPL 334340
16	Body Side Support
16	WPL 334341
17	Strike
18	WPL 281160
19	Body Side (Almond)
19	Body Side (Black)
19	Body side (White)
19	Body Side (Lt. or Rt.)
20	Screw 8ABx5/8“
21	Lower Insulation Retainer
22	Storage Compartment
23	Leg Leveler (4 Req)
24	Base w/Levelers-Lt. or Rt.
25	Screw
26	Oven Door Hinge
27	Spring-Oven Door (Lt. or Rt.)
28	Circuit Board Cover
29	Spacer
30	Circuit Board w/Relay
31	Bracket-Catch
32	Catch-Door
33	Catch-Strike
34	WPL 303097
35	Handle
36	spacer-handle
37	Front Panel-Lower
37	Panel-Broiler Door (Almond)
37	Panel-Broiler Door (White)
37	Front Panel-Broiler Door
38	Screw-10-32×1/2“
39	Lining-Storage Drawer
40	BURNER RECEPTACLE KIT
41	Hinge
42	Screw 10-16×7/16“
43	Oven Bottom
44	Front Frame
45	Cover
46	Oven Body
47	Flue Box
48	Insulation-Oven Top & Sides (1 Piece)
49	WPL 331592
50	WPL 326297
51	Oven Rack (2 Req)
52	Sensor
53	Screw 6-32×1/4“
54	Holder-Oven Light Bulb
55	Oven Lamp Bulb
56	Gasket-Lens
57	Lens-Oven Light
58	Retainer-Oven Light Lens
59	Insulation
60	Flue Insulation
