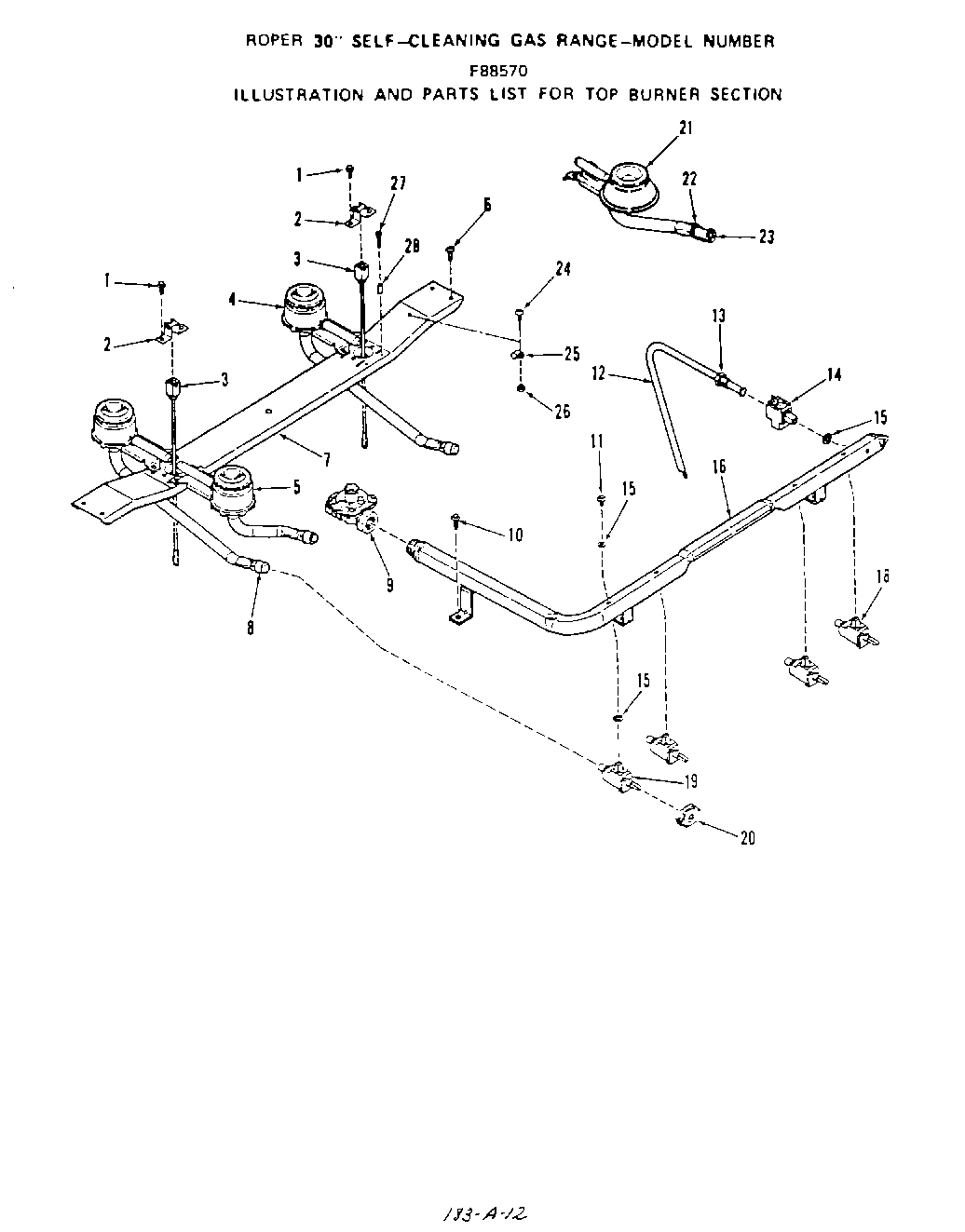

F8857^0 07 – TOP BURNER

Products

Position	Product
	Left
	Right
1	Screw 8 – 32×3/8“
2	panel, side l.h. (almond panel, side r.h.)
3	Electrode
4	Rear Burner-Lt. or Rt.. (Inc`s. Key 8)
5	Front Burner-Lt. or Rt. (Inc`s. Key 8)
6	Screw 6-20×3/8“
7	Support-Top Burner
8	Air Shutter
9	Pressure Regulator
10	Screw 10-16×7/16“
11	Mounting Screw (Inc`s 86)
12	Tubing 3/8“
13	Inverted Nut 3/8“
14	Shut Off Valve
15	Silicone Rubber Gasket
16	Manifold Pipe
17	Silicone Rubber Gasket (For Key 26)
18	Gas Valve (Inc`s Key 11) Rt. Fr.
19	Gas Valve (Inc`s Key 11) Rt.Rr., Lt.Fr.Lt.Rr.
20	Switch-Gas Valve (4 Req)
21	Front Burner-Rt. (Inc`s Key 37 & 38)
22	Adjustment Screw-Air Shutter
23	Air Shutter
24	Screw 8-32 x 3/8“
25	Clip
26	Keps Nut 8-32
27	Screw 6-32×7/8“
28	Eyelet
