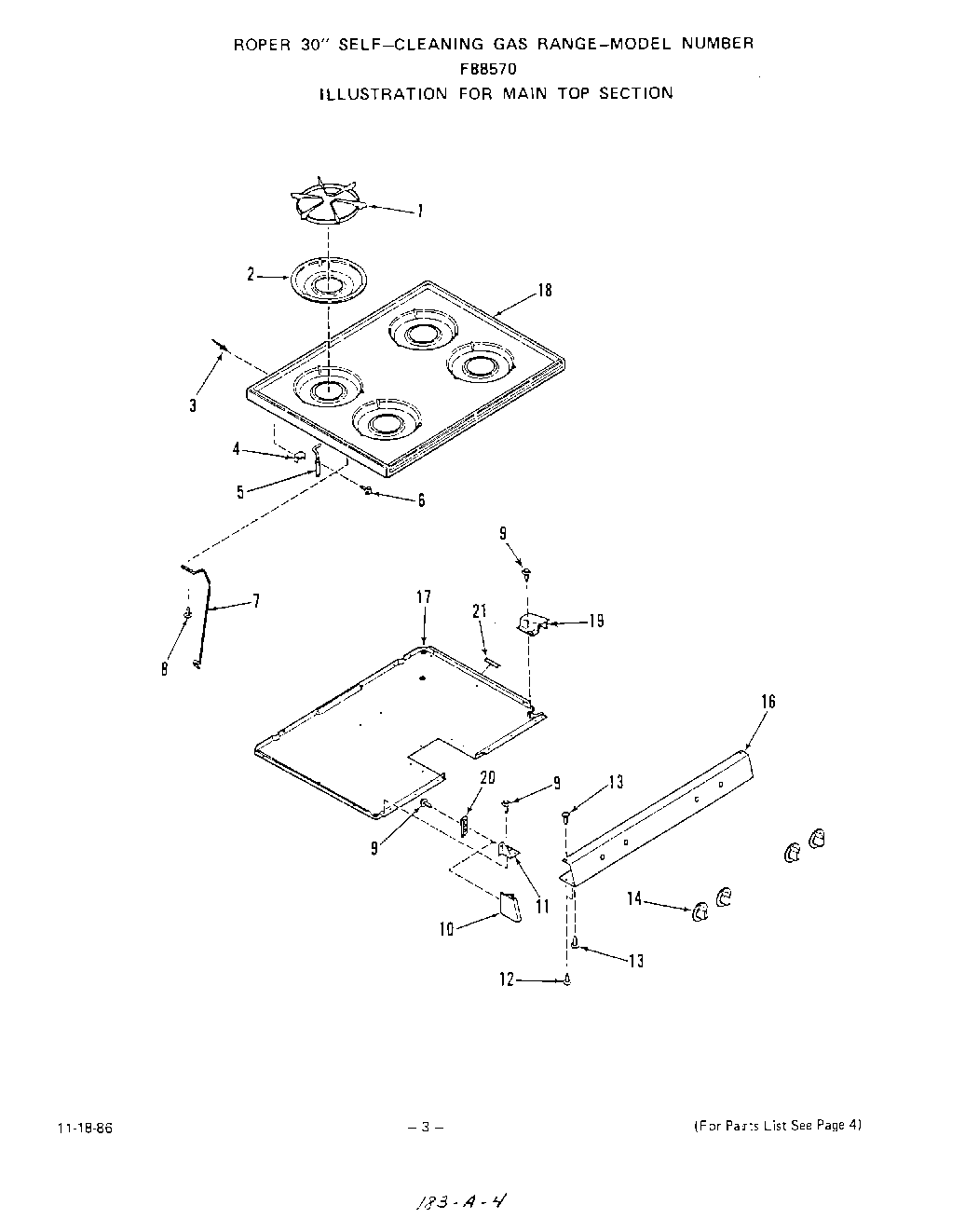

F8857W0 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Req)
2	Spill Bowl
3	Rivet
4	Hinge Bracket
5	Main Top Hinge
5	Right
5	Left
6	WPL 321162
7	Support Rod-Main Top (2 Req)
8	Screw 6-32 x 5/16“
9	Screw 10-16×7/16“
10	Left
10	End Cap
10	Right
11	Manifold Panel Bracket (Left)
11	Manifold Panel Bracket (Right)
11	Manifold Panel Bracket
12	Screw 6-20×3/8“
13	Screw 10ABx1/2“
14	Gas Valve Knob (4 Req)
16	Manifold Panel
17	Burner Box Bottom
18	Main Top
18	Main top (White)
18	Chrome
18	Main Top (Almond)
19	Wire Cover
20	Body Side Cleat
21	Tubing Spacer
