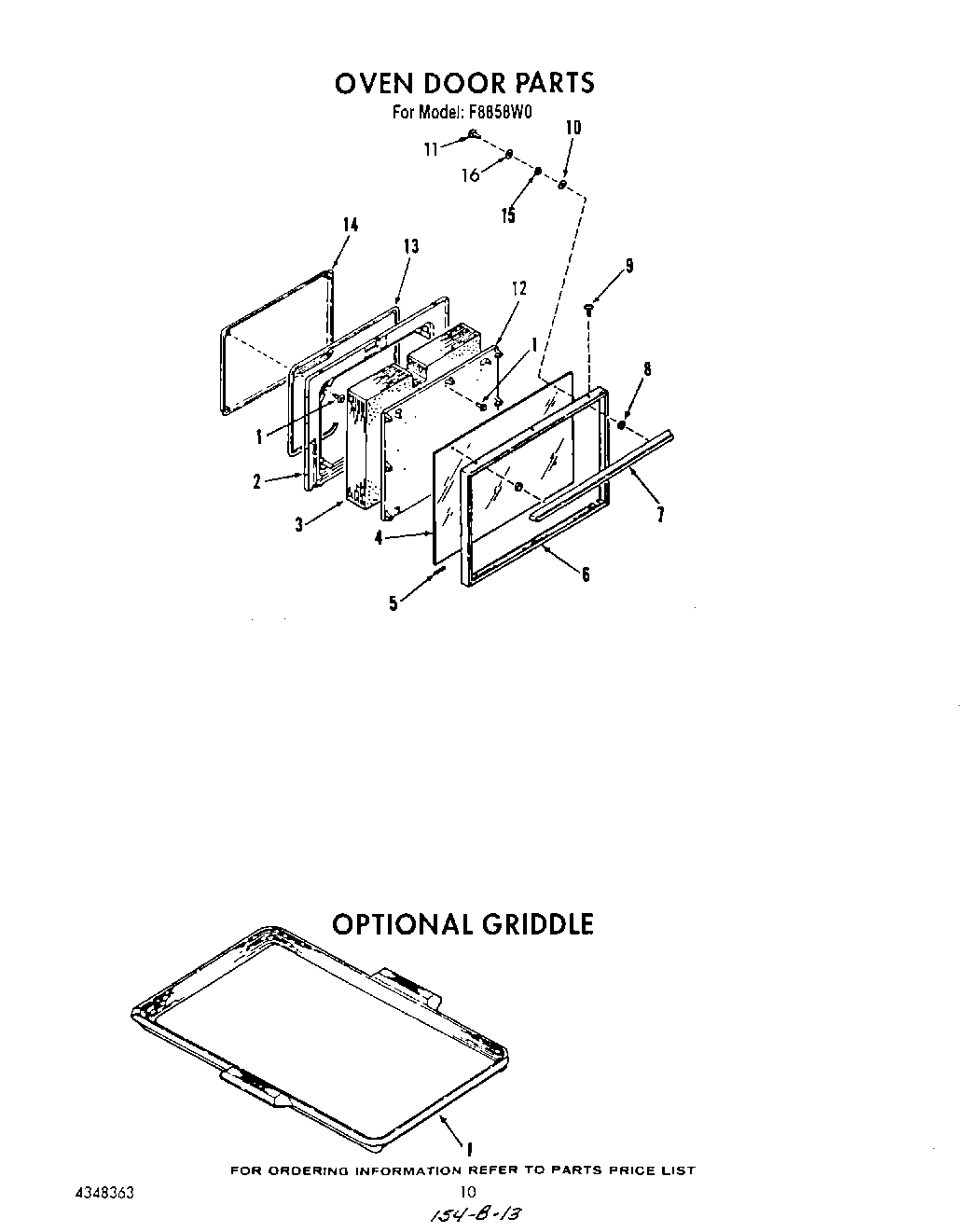

F8858^0 08 – OVEN DOOR , LIT/OPTIONAL GRIDDLE

Products

Position	Product
	Wire Harness Parts Not Listed May Be Purchased Locally
1	Griddle, Set-On
1	SCREW
2	Lining
3	Insulation
4	Glass, Outer
5	Cushion
6	Frame, Door
7	Handle
8	Spacer, Dr. Handle
9	Screw
10	Washer, Fiber
11	WP999367 Whirlpool Refrigerator Screw
12	Retainer, Insulation
13	Gasket, Door
14	Plug, Inner Door
15	Spacer, Glass Door
16	WP285432 Whirlpool Terminal
16	Repair Parts List
16	Owner`s Manual
16	Relay
16	Backguard
16	Installation Guide
16	Wire Harness (Flag Terminal Faston Terminal)
16	Wire Harness (3/16“)
16	Washer
