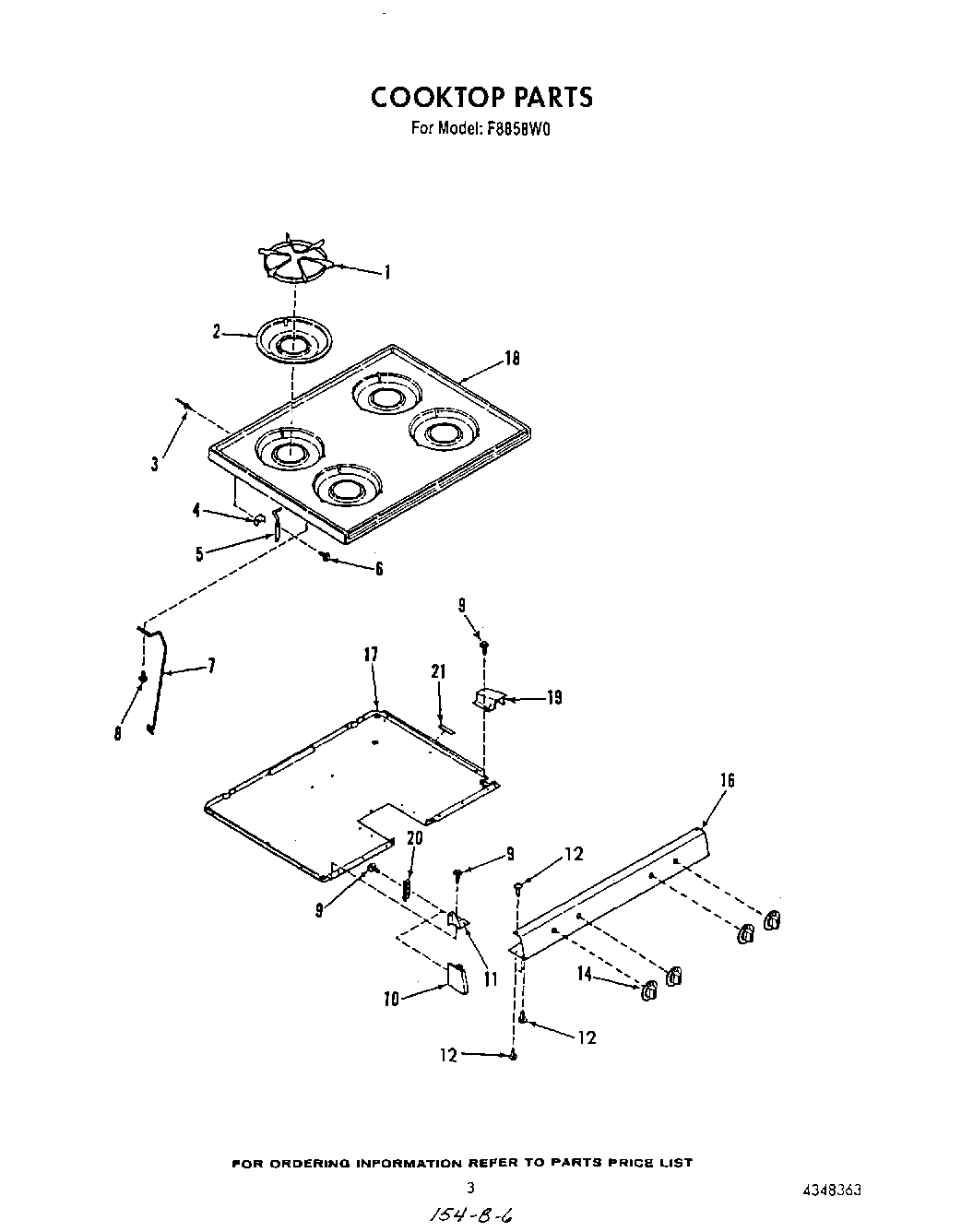

F8858W0 03 – COOK TOP
Written by
in
F8858W0 03 – COOK TOP
Products
Position
Product
1
Grate, Burner (4)
2
Pan, Aeration
3
Rivet
4
Bracket, Mounting
5
Hinge (Left)
5
Hinge (Right)
6
WP999367 Whirlpool Refrigerator Screw
7
Support Rod (2)
9
SCREW
10
End Cap (Right)
10
End Cap (Left)
11
Bracket, Manifold (Left)
11
Bracket, Manifold (Right)
12
Screw
14
Knob, Gas Valve (4)
16
Panel, Manifold
17
Bottom, Burner Box
18
Cooktop (White)
18
Cooktop (Almond)
18
Main Cooktop (Chrome)
19
Wire Cover
20
Cleat
21
Spacer, Tubing
←
