F8858X0 05 – BROILER AND OVEN BURNER
Written by
in

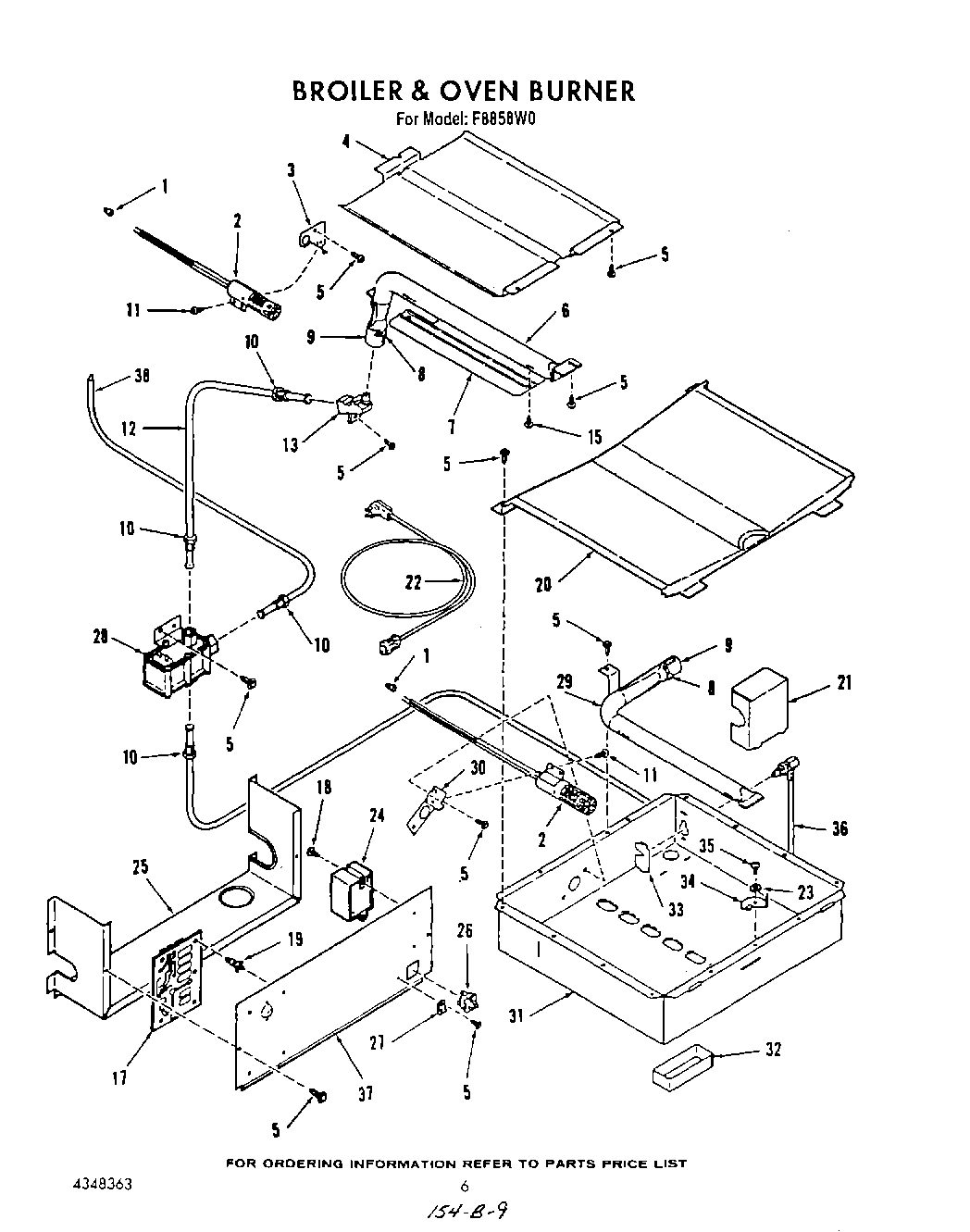

F8858X0 05 – BROILER AND OVEN BURNER
Products
Position
Product
1
WP4323866 Whirlpool Connector
2
Ignitor-Bake/Broil
3
Bracket, Broiler Burner Igniter
4
Baffle-Broiler Burner
5
SCREW
6
Broiler Burner, (Inc`s 7,8,9,15)
7
Baffle
8
Screw, Adjustment-Air Shutter
9
Shutter, Air
10
Nut, Inverted 3/8
11
W10850756 Whirlpool Screw
12
Tubing 3/8“, Control Valve to Broiler Orifice
13
Fitting-Orifice/-Broiler Burner
15
WP489128 Whirlpool Refrigerator Screw
17
Circuit Board With Relay
18
Screw 6-20×3/8
19
Spacer
20
Baffle, Burner
21
Shield, Orifice Fitting
22
Power Cord
23
Washer, Spring
24
Module-Spark
25
Bracket, Component Mounting
26
Disconnect
27
Clip
28
Control Valve
29
Burner, Oven
30
Bracket, Igniter
31
Bottom, Burner Box
32
Retainer, Orifice Insulation
33
Plate, Orifice Mounting
34
Latch, Burner Box Bottom
35
Screw, Shoulder
36
Tubing 3/8“, with Orifice Fitting (Control Valve to Oven Burner)
37
Cover, Component Bracket
38
Tubing 3/8“
←
