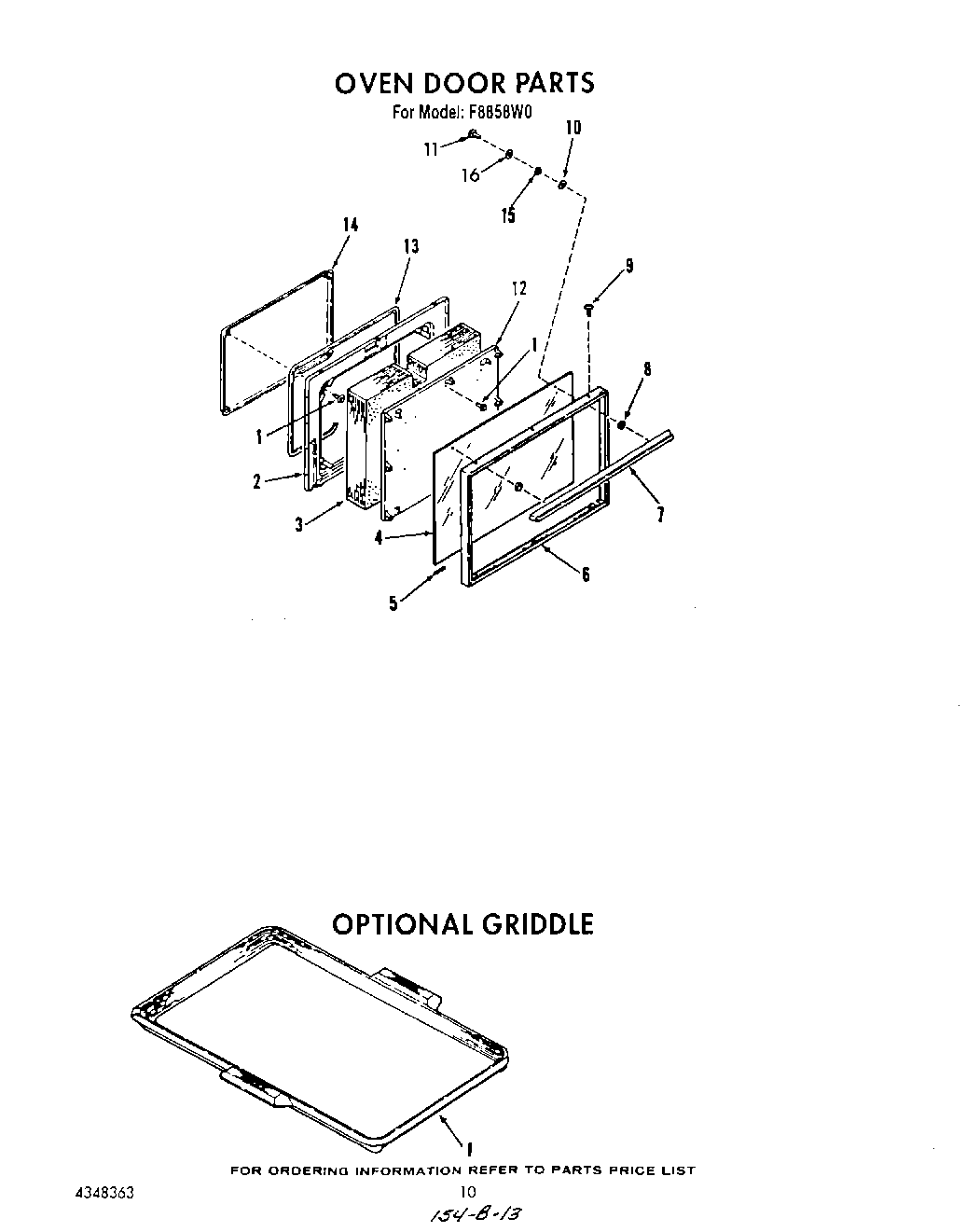

F8858X0 08 – OVEN DOOR , LIT/OPTIONAL GRIDDLE

Products

PositionProduct
Wire Harness Parts Not Listed May Be Purchased Locally
1SCREW
1Griddle, Set-On
2Lining
3Insulation
4Glass, Outer
5Cushion
6Frame, Door
7Handle
8Spacer, Dr. Handle
9Screw
10Washer, Fiber
11WP999367 Whirlpool Refrigerator Screw
12Retainer, Insulation
13Gasket, Door
14Plug, Inner Door
15Spacer, Glass Door
16Relay
16Owner`s Manual
16Backguard
16Installation Guide
16WP285432 Whirlpool Terminal
16Washer
16Wire Harness (3/16“)
16Wire Harness (Flag Terminal Faston Terminal)
16Repair Parts List
