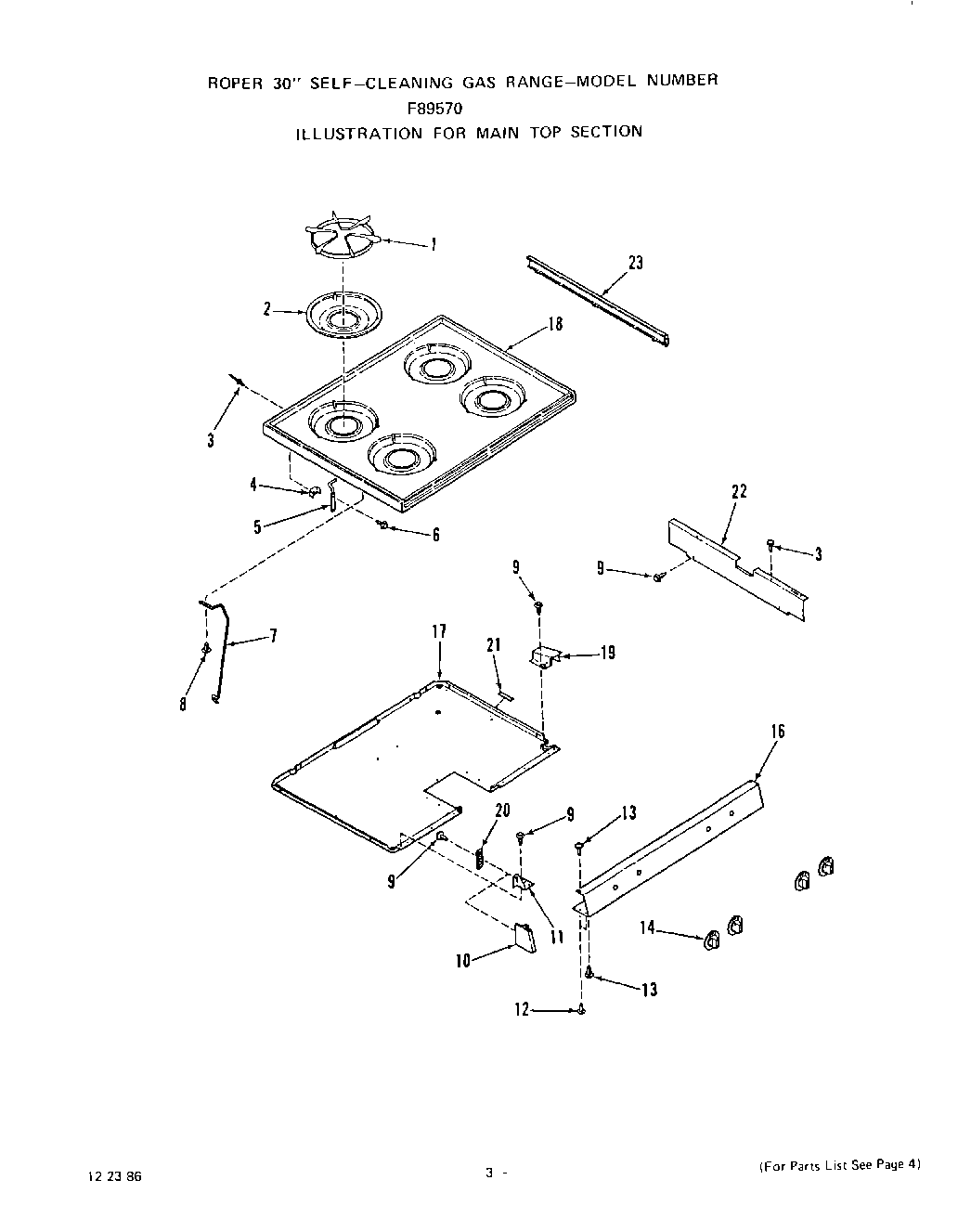

F8957^0 03 – POWER LOCK

Products

Position	Product
1	Top Grate (4 Req)
2	Aeration Pan (Model F65080)
3	Rivet
4	Hinge Bracket
5	Left
5	Right
5	Main Top Hinge
6	WPL 321162
7	Support Rod-Main Top (2 Req)
8	Screw 6-32 x 5/16“
9	Screw 10-16×7/16“
10	End Cap
10	Left
10	Right
11	Manifold Panel Bracket (Left)
11	Manifold Panel Bracket (Right)
11	Manifold Panel Bracket
12	Screw 6-20×3/8“
13	Screw 10ABx1/2“
14	Gas Valve Knob (4 Req)
16	Manifold Panel
17	Burner Box Bottom
18	White
18	Almond
18	Main Top (With Trims)
19	Wire Cover
20	Body Side Cleat
21	Tubing Spacer
22	Left
22	Extension-Burner Box Bottom Side
22	Right
23	Main Top Trim
23	Left
23	Right
