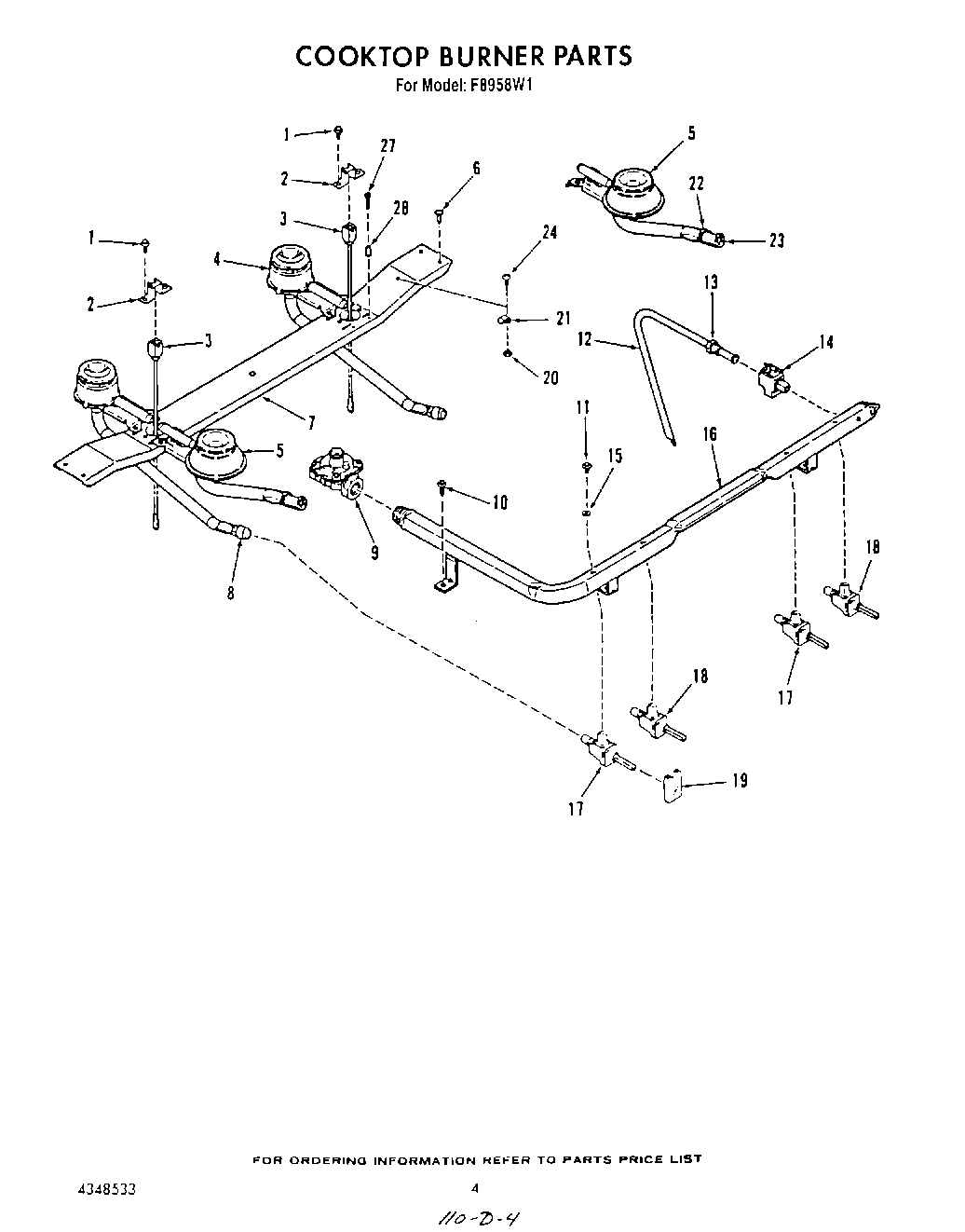

F8958^1 04 – COOKTOP BURNER

Products

Position	Product
1	WP489128 Whirlpool Refrigerator Screw
2	Bracket-Ignitor (Lt or Rt)
3	Electrode (Left)
3	Electrode (Right)
4	Burner-Rear, Lt. or Rt. (Incl. No.8)
5	Rt. Front Burner (Inc`s 22 & 23)
6	Screw
7	Support-Top Burner
8	Air Shutter
9	Regulator-Pressure
10	SCREW
11	Screw, Mounting-1 Each-illus. 10 & 20
12	Tubing 3/8“ (Union To Control Valve)
13	Nut, Inverted 3/8
14	Valve, Shut Off
15	Seal, Valve-1 ea. Illus. 10 & 20
16	Manifold
17	Gas Valve
18	Gas Valve (Inc 18)
19	Switch, Gas Valve
20	WP488130 Whirlpool Air Conditioner Nut
21	Clip (For No.1)
22	Screw-Adjustment, (Air Shutter)
23	Shutter, Air
24	Screw, No.8-32 x 3/8
27	Screw No.6-32×7/8
28	Eyelet
