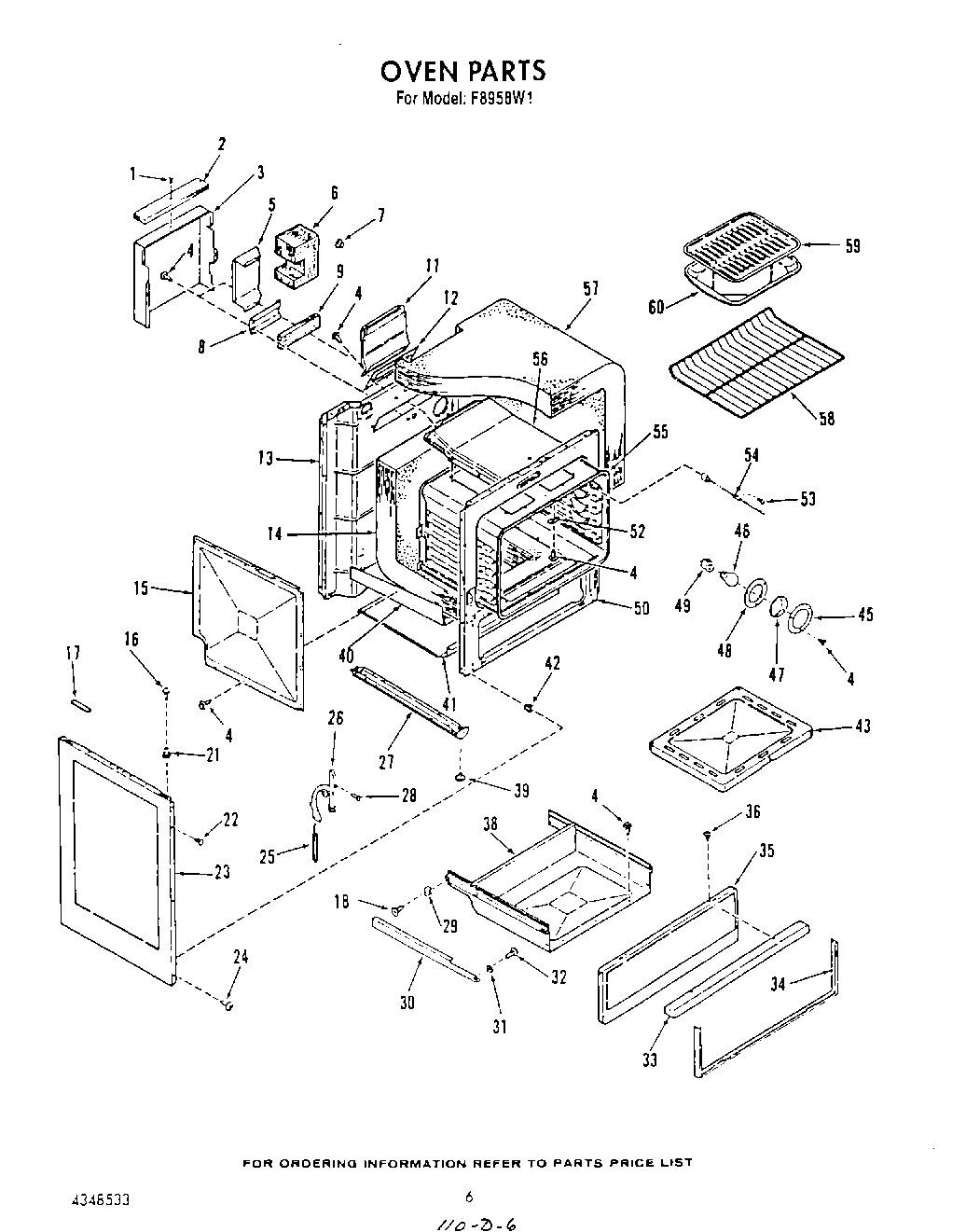

F8958^1 06 – OVEN

Products

Position	Product
1	Button
2	Insulation
3	Shield, Deflector
4	SCREW
5	Wire Shield
6	Insulation
7	Bushing
8	Shield, Wire
9	Insulation
11	Deflector, Flue
12	Insulation, Flue
13	Back
14	Insulation, Back And Bottom
15	Retainer-Insul. (Lt/Rt)
16	Screw No.6-32×7/8
17	Spacer
18	Screw, No.8-32 x 3/8
21	Strike
22	Rivet
23	Side, Cabinet (Almond)
23	Side, Cabinet (White)
24	Screw No.8×5/8
25	Door Spring
26	Hinge, Oven Door (Left)
26	Hinge, Oven Door (Right)
27	Base, W/ Levelers (2)
28	Screw
29	Rear Slide Block (Lt/Rt)
30	Support, (Lt/Rt), Storage Drawer
31	Front Slide Block, Lt/Rt
32	Screw, No.10-32 x 17/32
33	Handle
34	Frame, Drawer
35	Panel, Front
36	Screw
38	Drawer, Storage
39	Levelers, Leg (4)
40	Retainer, Lower Insulation
41	Baffle, Vent
42	Nut-Expansion (6)
43	Bottom, Oven
45	Retainer, Lens
46	RANGE ONLY 40W 120V APPL BULB
47	Lens, Oven Light
48	Gasket, Lens
49	W10856866 Whirlpool Light Socket
50	Frame, Front
52	Cover
53	Screw No.6-32×3/16“
54	Sensor
55	Oven Cavity
56	Flue Box
57	Insulation, Top And Sides (1 Pc)
58	Oven Rack (Folding)
58	Rack, Oven
59	4396923 Whirlpool Broil Pan Set Gray Porcelain
