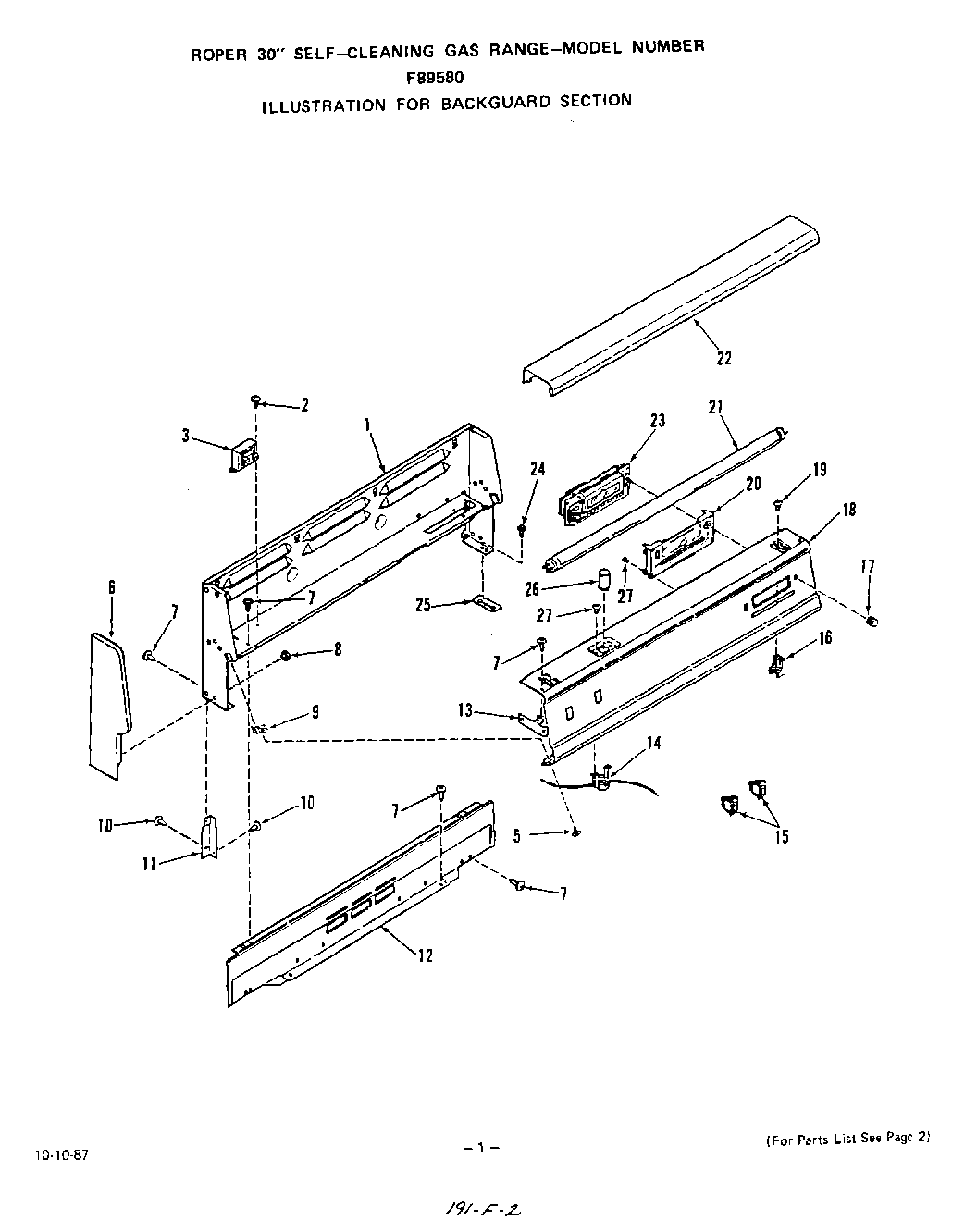

F8958L0 02 – BACKGUARD , LIT/OPTIONAL

F8958L0 02 – BACKGUARD , LIT/OPTIONAL

Written by

in

F8958L0 02 – BACKGUARD , LIT/OPTIONAL

Products

Position	Product
1	Backguard Body
2	Screw 6-20×3/8“
3	Ballast
5	Screw
6	Right
6	Left
7	Screw 10ABx1/2“
8	Pal Nut
9	Backguard Clip
10	Screw 10-16×7/16“
11	Right
11	Left
12	Backguard Lower Front Panel
13	Backguard Bracket
14	Starter Base
15	Switch-Oven Light
16	Lamp Holder
17	Clock/Oven Control Knob
18	Control Panel
19	Screw 6-32×3/8“
20	Clock Lens Asm
21	Fluorescent Lamp
22	Canopy Panel
23	Clock
24	Screw 10 – 32 x 7/16“
25	Body Side Cleat
26	Lamp Starter
27	Screw 6-32×5/16“
