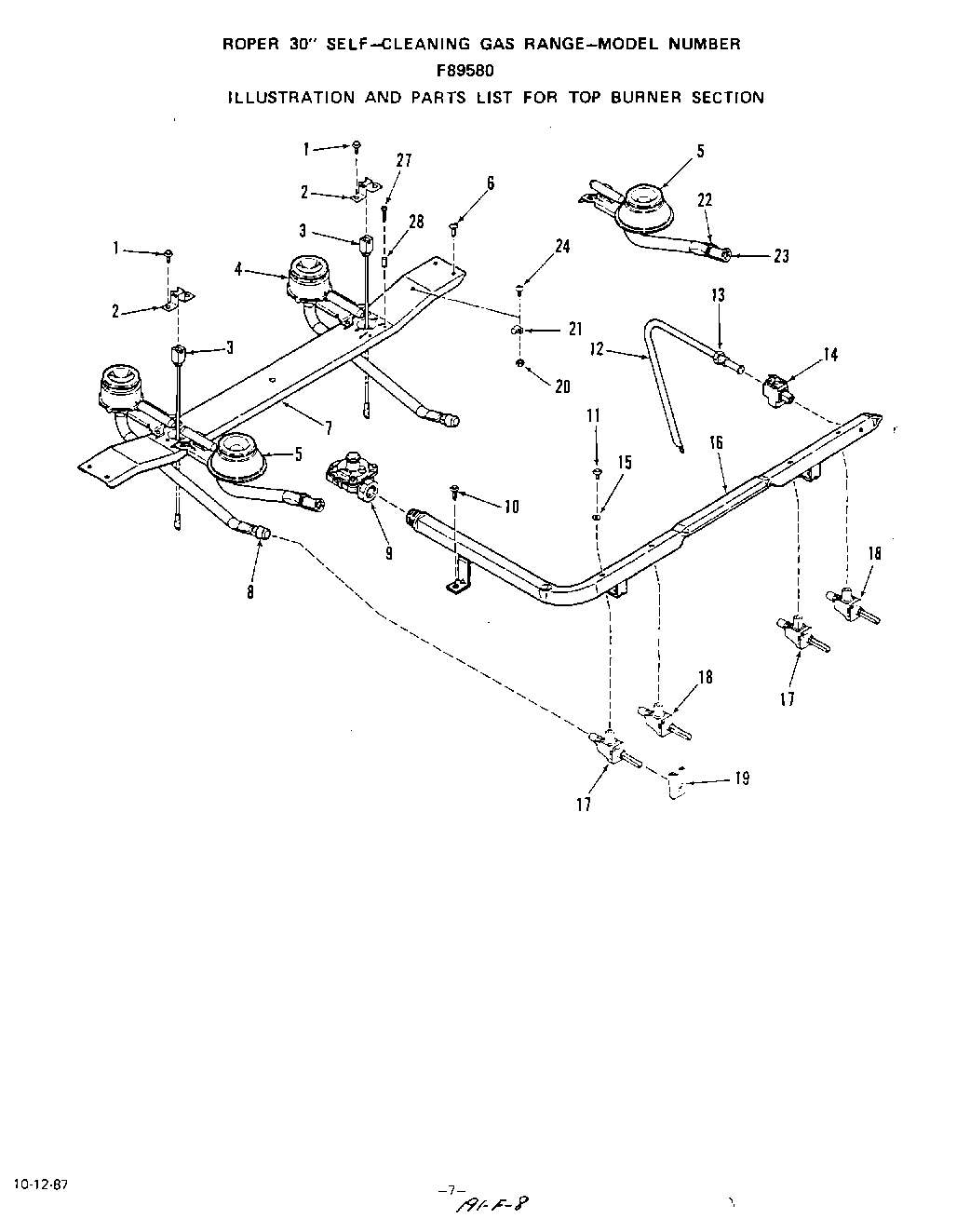

F8958L0 05 – TOP BURNER

Products

Position	Product
1	Screw 8 – 32×3/8“
2	panel, side l.h. (almond panel, side r.h.)
3	Left
3	Right
4	Rear Burner-Lt. or Rt.. (Inc`s. Key 8)
5	Front Burner-Rt. (Inc`s Key 37 & 38)
6	Screw
7	Support-Top Burner
8	Air Shutter
9	Pressure Regulator
10	Screw 10-16×7/16“
11	Mounting Screw (Inc`s 86)
12	18850A Models
13	Inverted Nut 3/8“
14	Shut Off Valve
15	Silicone Rubber Gasket
16	Manifold Pipe
17	Gas Valve
18	Gas Valve (Inc`s Key 18)
19	Switch-Gas Valve
20	Keps Nut 8-32
21	Clip
22	Adjustment Screw-Air Shutter
23	Air Shutter
24	Screw 8-32 x 3/8“
27	Screw 6-32×7/8“
28	Eyelet
