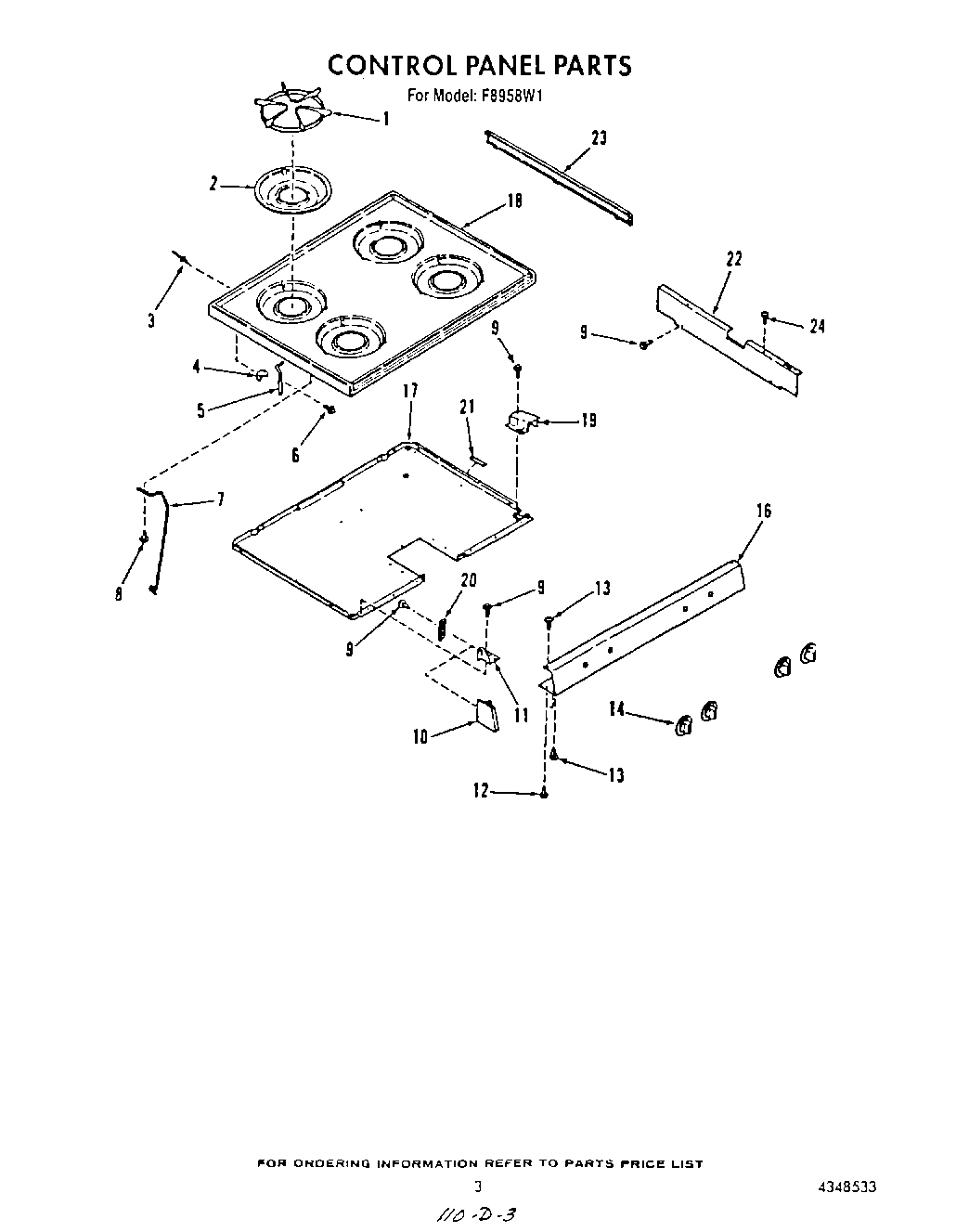

F8958L1 03 – SECTION

Products

Position	Product
1	Grate, Burner (4)
2	Pan, Aeration
3	Rivet
4	Bracket, Mounting
5	Hinge (Left)
5	Hinge (Right)
6	WP999367 Whirlpool Refrigerator Screw
7	Support Rod (2)
8	Screw 6-32×5/16
9	SCREW
10	End Cap (Right)
10	End Cap (Left)
11	Bracket, Manifold (Right)
11	Bracket, Manifold (Left)
12	Screw
13	WP308685 Whirlpool Microwave Screw
14	Knob, Gas Valve (4)
16	Panel, Manifold
17	Bottom, Burner Box
18	Cooktop (White)
18	Cooktop (Almond)
19	Wire Cover
20	Cleat
21	Spacer, Tubing
22	Extension, Side Burner Box Bottom (Right)
22	Extension, Side Burner Box Bottom (Left)
23	Trim (Left)
23	Trim (Right)
24	Screw No.10-32×1/2
