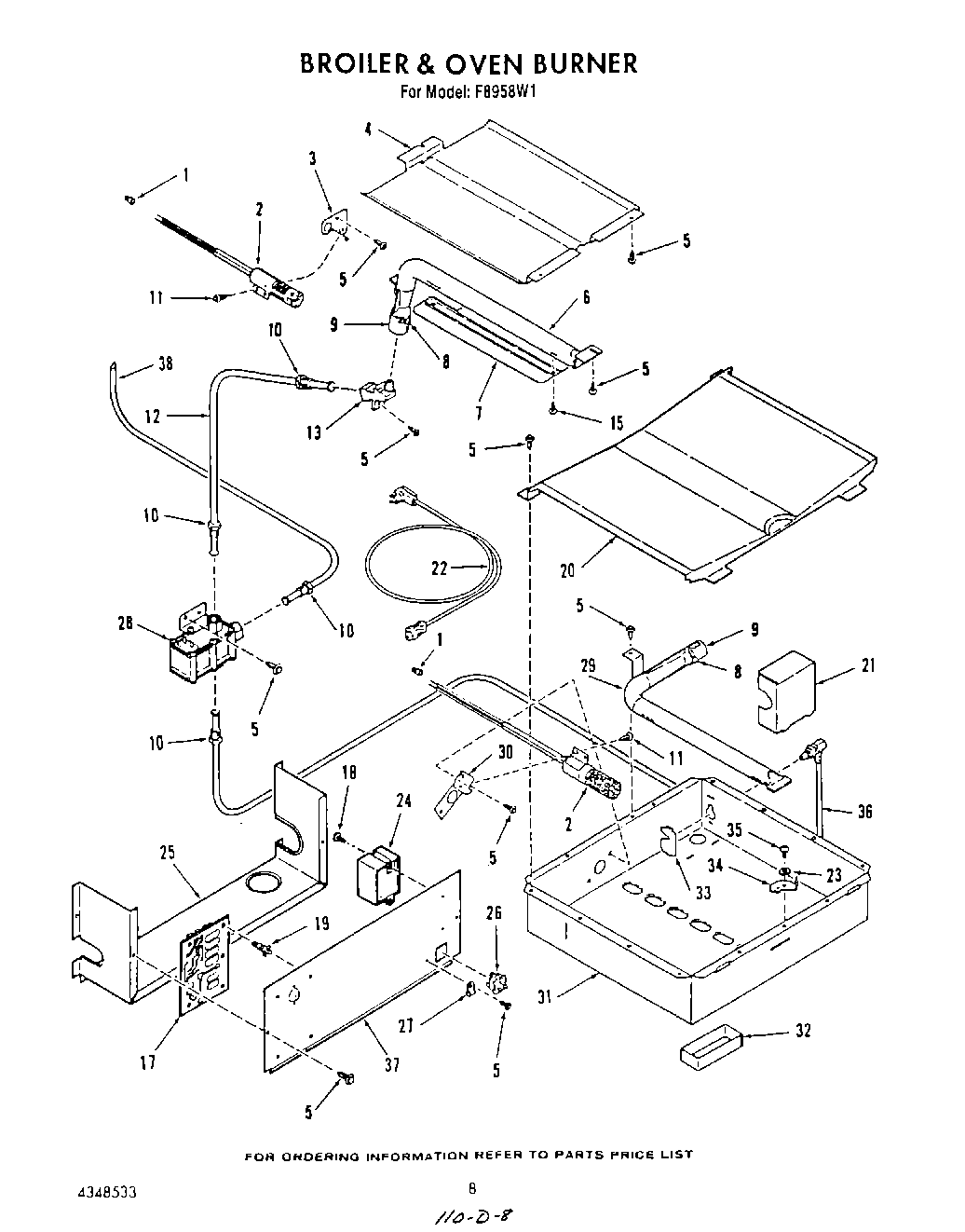

F8958L1 07 – BROILER AND OVEN BURNER

Products

Position	Product
1	WP4323866 Whirlpool Connector
2	Ignitor-Bake/Broil
3	Bracket, Broiler Burner Igniter
4	Baffle-Broiler Burner
6	Broiler Burner (Inc No.8 & No.9)
7	Baffle
8	Screw, Adjustment-Air Shutter
9	Shutter, Air
10	Nut, Inverted 3/8
11	W10850756 Whirlpool Screw
12	Tubing 3/8“, Control Valve to Broiler Orifice
13	Fitting-Orifice/-Broiler Burner
15	WP489128 Whirlpool Refrigerator Screw
17	Relay Circuit Board
18	Screw 6-20×3/8
19	Spacer
20	Baffle, Burner
21	Shield, Orifice Fitting
22	Power Cord
23	Screw, No.8-32 x 3/16
24	Module-Spark
25	Bracket, Component Mounting
26	Disconnect
27	Clip
28	Control Valve
29	Oven Burner
30	Bracket, Igniter
31	Bottom, Burner Box
32	Retainer, Orifice Insulation
33	Plate, Orifice Mounting
34	Latch, Burner Box Bottom
35	Screw, Shoulder
36	3/8“ Tubing W/ Orifice Fitting Control Valve to Oven Burner
37	Cover, Component Bracket
38	Tubing 3/8“, (Inc`s 9)
